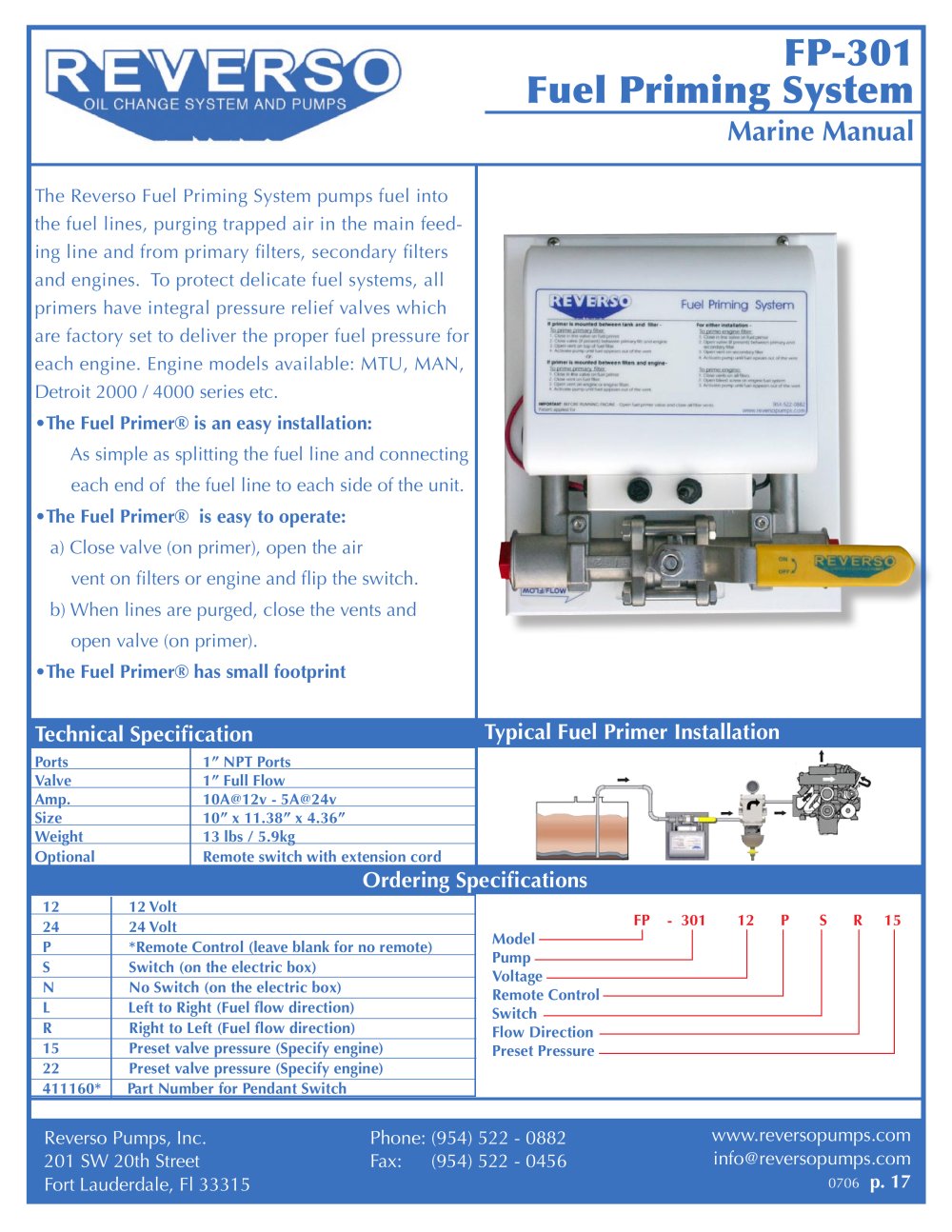

FP-301
Fuel Priming System
Marine Manual
The Reverso Fuel Priming System pumps fuel into the fuel lines, purging trapped air in the main feed­ing line and from primary filters, secondary filters and engines. To protect delicate fuel systems, all primers have integral pressure relief valves which are factory set to deliver the proper fuel pressure for each engine. Engine models available: MTU, MAN, Detroit 2000 / 4000 series etc. •The Fuel Primer® is an easy installation:
As simple as splitting the fuel line and connecting each end of the fuel line to each side of the unit. •The Fuel Primer® is easy to operate:
a) Close valve (on primer), open the air
vent on filters or engine and flip the switch.
b) When lines are purged, close the vents and open valve (on primer).
•The Fuel Primer® has small footprint
Typical Fuel Primer Installation
Technical Specification
Ports
1" NPT Ports
Valve
1" Full Flow
Amp.
10A@12v - 5A@24v
Size
10" x 11.38" x 4.36"
Weight
13 lbs / 5.9kg
Optional_
Remote switch with extension cord
Ordering Specifications
12 Volt
12
R 15
12
24 Volt
24
Model-
Pump-
Voltage-
Remote Control-Switch-
*Remote Control (leave blank for no remote)
P
Switch (on the electric box)
S
No Switch (on the electric box)
N
Left to Right (Fuel flow direction)
L
Right to Left (Fuel flow direction)
R
Flow Direction Preset Pressure-
Preset valve pressure (Specify engine)
15
Preset valve pressure (Specify engine)
22
Part Number for Pendant Switch
411160*
www.reversopumps.com info@reversopumps.com
0706 p. 17
Phone: (954) 522 - 0882 Fax: (954) 522 - 0456
Reverso Pumps, Inc.
201 SW 20th Street
Fort Lauderdale, Fl 33315
