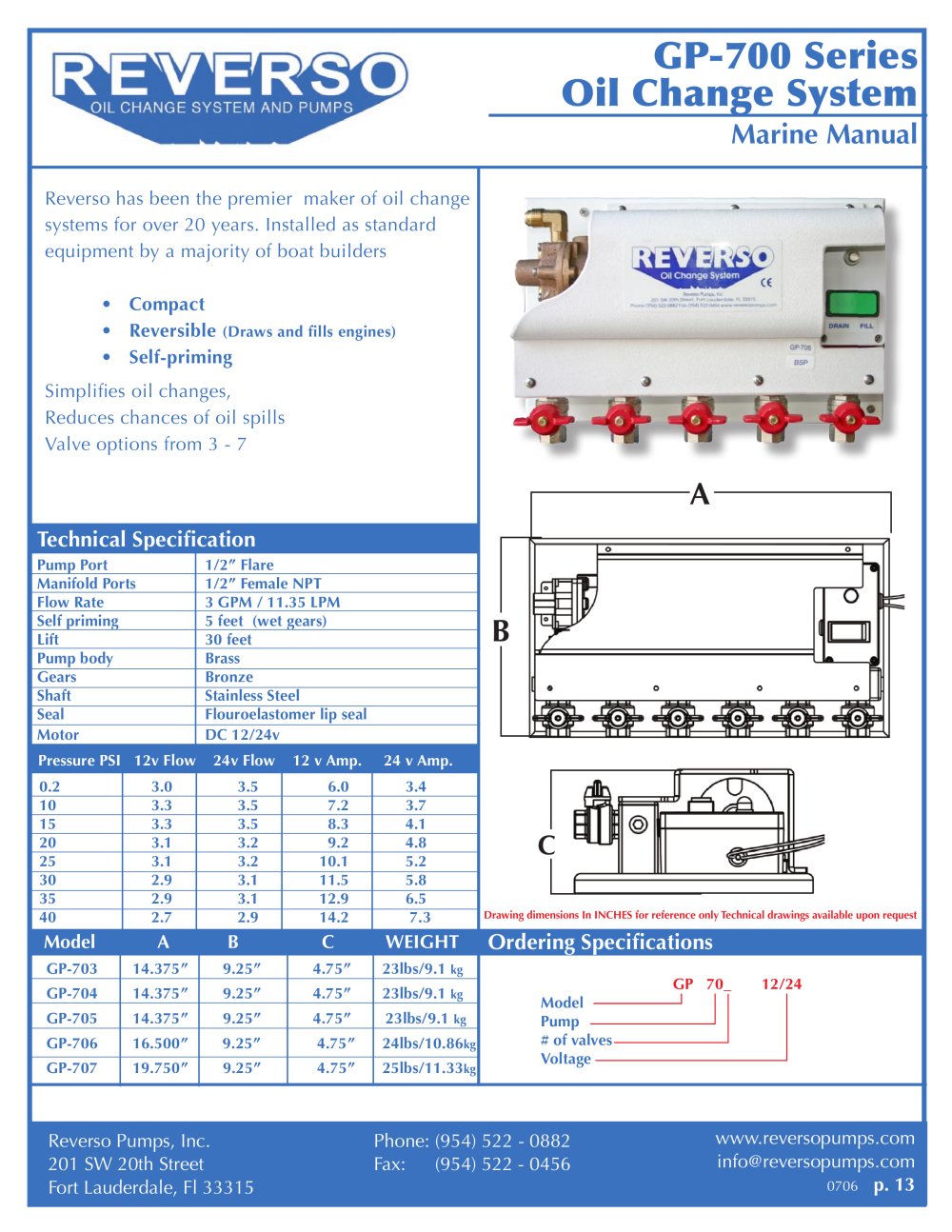

GP-700 SeriesOil Change System

Marine Manual

• Compact • Reversible Reverso has been the premier maker of oil change systems for over 20 years. Installed as standard equipment by a majority of boat builders

(Draws and fills engines)

• Self-priming Simplifies oil changes,Reduces chances of oil spills Valve options from 3 - 7

A

Technical Specification

Pump Port 1/2” FlareManifold Ports 1/2” Female NPT Flow Rate 3 GPM / 11.35 LPM Self priming 5 feet (wet gears) Lift 30 feet Pump body Brass Gears Bronze Shaft Stainless Steel Seal Flouroelastomer lip sealMotor DC 12/24v

B

Pressure PSI 12v Flow 24v Flow 12 v Amp. 24 v Amp. 0.2 3.0 3.5 6.0 3.410 3.3 3.5 7.2 3.7 15 3.3 3.5 8.3 4.1 20 3.1 3.2 9.2 4.8 25 3.1 3.2 10.1 5.2 30 2.9 3.1 11.5 5.8 35 2.9 3.1 12.9 6.5 40 2.7 2.9 14.2 7.3

C

Drawing dimensions In INCHES for reference only Technical drawings available upon request

Model A B C WEIGHT

Ordering Specifications

GP-703 14.375” 9.25” 4.75” 23lbs/9.1
kg GP-704 14.375” 9.25” 4.75” 23lbs/9.1
kg GP 70_ 12/24 Model Pump # of valves Voltage GP-705 14.375” 9.25” 4.75” 23lbs/9.1
kg GP-706 16.500” 9.25” 4.75” 24lbs/10.86
kg GP-707 19.750” 9.25” 4.75” 25lbs/11.33
kg

Reverso Pumps, Inc.201 SW 20th Street Fort Lauderdale, Fl 33315Phone: (954) 522 - 0882Fax: (954) 522 - 0456www.reversopumps.cominfo@reversopumps.com

0706

p. 13
