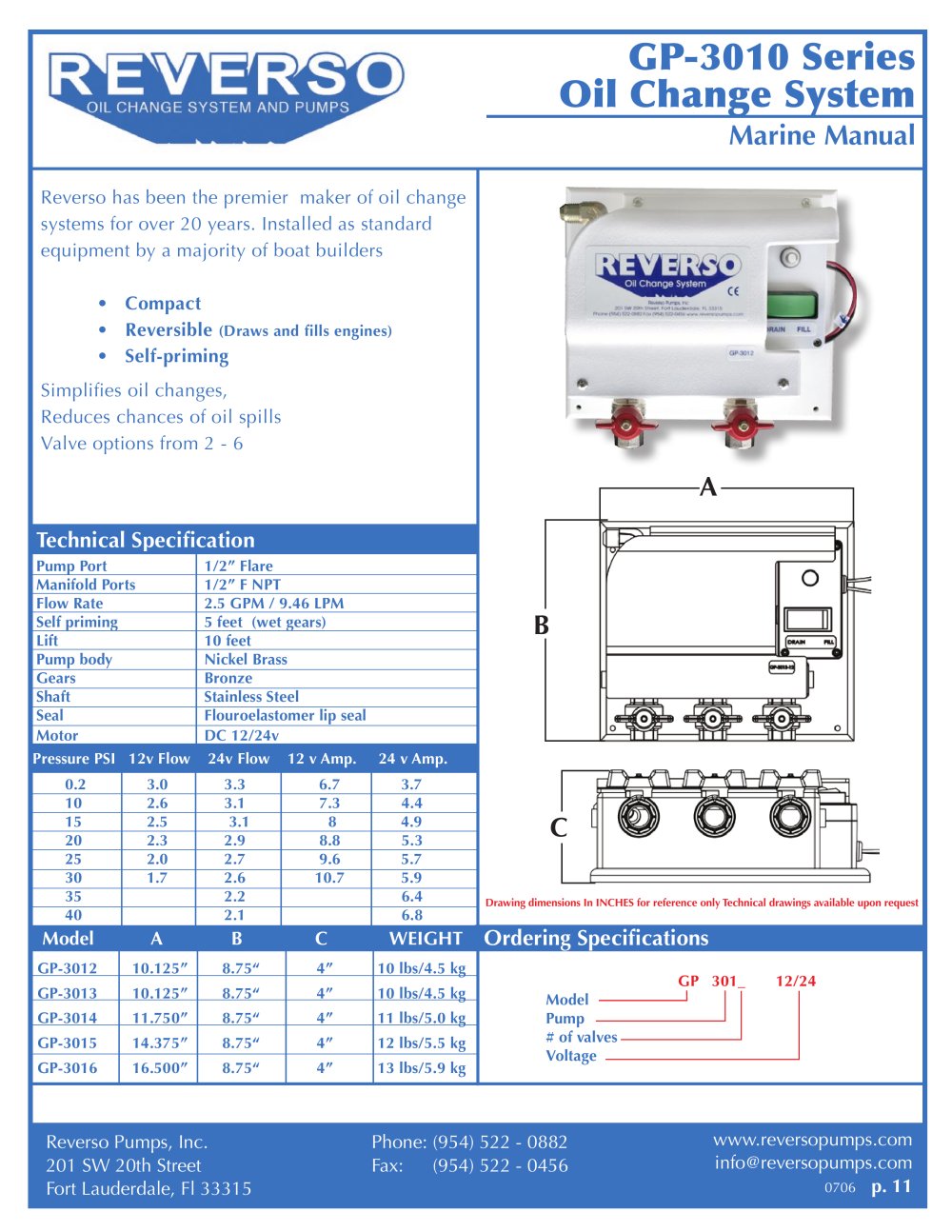

GP-3010 SeriesOil Change System

Marine Manual

• Compact • Reversible Reverso has been the premier maker of oil change systems for over 20 years. Installed as standard equipment by a majority of boat builders
(Draws and fills engines) • Self-priming Simplifies oil changes,Reduces chances of oil spills Valve options from 2 - 6

A A

Technical Specification

Pump Port 1/2” FlareManifold Ports 1/2” F NPT Flow Rate 2.5 GPM / 9.46 LPM Self priming 5 feet (wet gears) Lift 10 feet Pump body Nickel Brass Gears Bronze Shaft Stainless Steel Seal Flouroelastomer lip sealMotor DC 12/24v

B

Pressure PSI 12v Flow 24v Flow 12 v Amp. 24 v Amp. 0.2 3.0 3.3 6.7 3.7 10 2.6 3.1 7.3 4.4 15 2.5 3.1 8 4.9 20 2.3 2.9 8.8 5.3 25 2.0 2.7 9.6 5.7 30 1.7 2.6 10.7 5.9 35 2.2 6.4 40 2.1 6.8GP-3012 10.125” 8.75“ 4” 10 lbs/4.5 kg GP-3013 10.125” 8.75“ 4” 10 lbs/4.5 kg GP-3014 11.750” 8.75“ 4” 11 lbs/5.0 kg GP-3015 14.375” 8.75“ 4” 12 lbs/5.5 kg GP-3016 16.500” 8.75“ 4” 13 lbs/5.9 kg

C

Drawing dimensions In INCHES for reference only Technical drawings available upon request Model A B C WEIGHT

Ordering Specifications

GP 301_ 12/24 Model Pump # of valves Voltage Reverso Pumps, Inc.201 SW 20th Street Fort Lauderdale, Fl 33315Phone: (954) 522 - 0882Fax: (954) 522 - 0456www.reversopumps.cominfo@reversopumps.com
0706 p. 11
