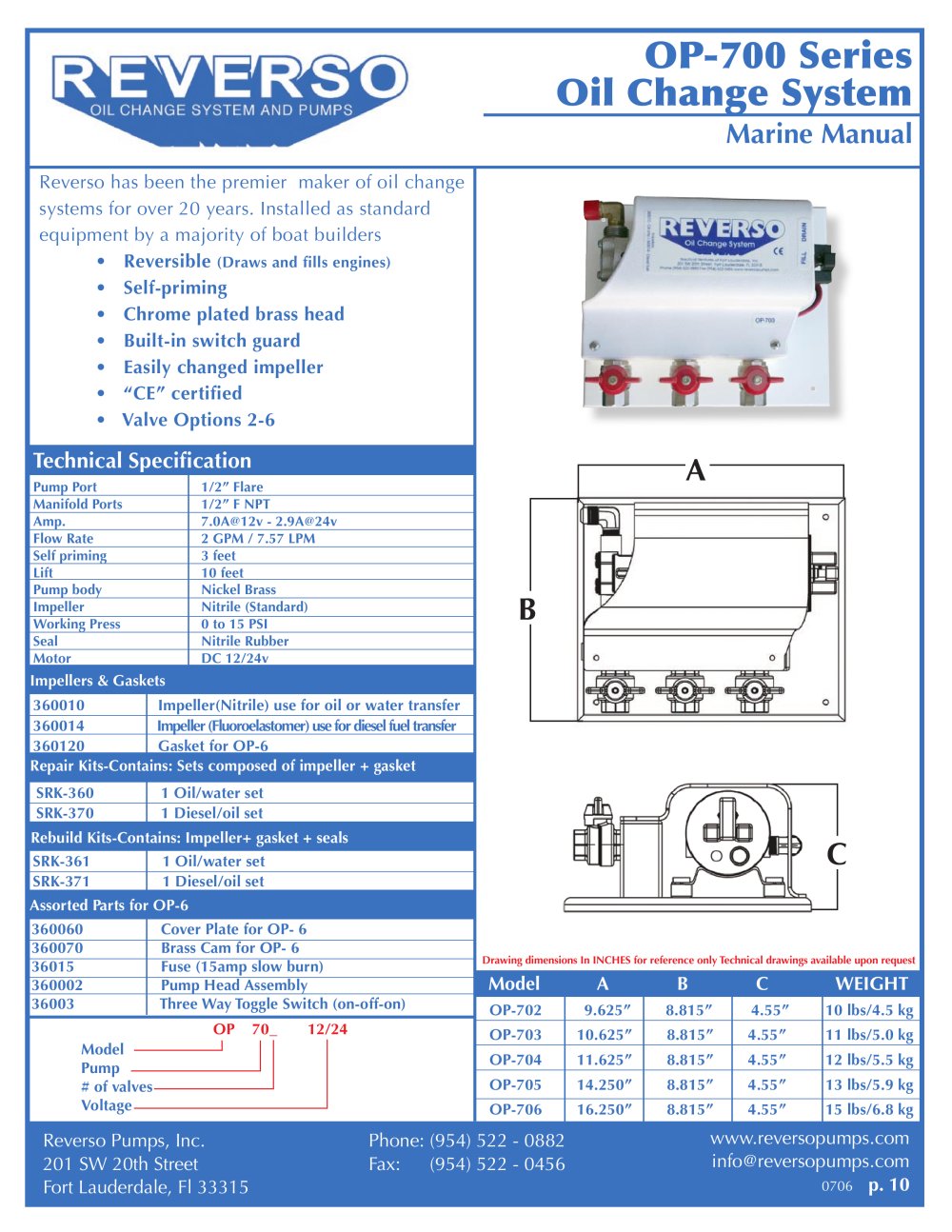

OP-700 Series Oil Change System

• Reversible

Marine Manual

Reverso has been the premier maker of oil change systems for over 20 years. Installed as standard equipment by a majority of boat builders
(Draws and fills engines) • Self-priming • Chrome plated brass head • Built-in switch guard • Easily changed impeller • “CE” certified • Valve Options 2-6

Technical Specification

Pump Port 1/2” FlareManifold Ports 1/2” F NPT Amp. 7.0A@12v - 2.9A@24v Flow Rate 2 GPM / 7.57 LPM Self priming 3 feet Lift 10 feet Pump body Nickel Brass Impeller Nitrile (Standard) Working Press 0 to 15 PSI Seal Nitrile Rubber Motor DC 12/24v

A B

Impellers & GasketsRepair Kits-Contains: Sets composed of impeller + gasketRebuild Kits-Contains: Impeller+ gasket + sealsAssorted Parts for OP-6 360010 Impeller(Nitrile) use for oil or water transfer360014 Impeller (Fluoroelastomer) use for diesel fuel transfer360120 Gasket for OP-6SRK-360 1 Oil/water setSRK-370 1 Diesel/oil setSRK-361 1 Oil/water set SRK-371 1 Diesel/oil set 360060 Cover Plate for OP- 6360070 Brass Cam for OP- 6 36015 Fuse (15amp slow burn) 360002 Pump Head Assembly 36003 Three Way Toggle Switch (on-off-on)

C

Drawing dimensions In INCHES for reference only Technical drawings available upon request Model A B C WEIGHT
OP-702 9.625” 8.815” 4.55” 10 lbs/4.5 kgOP-703 10.625” 8.815” 4.55” 11 lbs/5.0 kg OP-704 11.625” 8.815” 4.55” 12 lbs/5.5 kg OP-705 14.250” 8.815” 4.55” 13 lbs/5.9 kg OP-706 16.250” 8.815” 4.55” 15 lbs/6.8 kg OP 70_ 12/24 ModelPump # of valves Voltage Reverso Pumps, Inc.201 SW 20th Street Fort Lauderdale, Fl 33315Phone: (954) 522 - 0882Fax: (954) 522 - 0456www.reversopumps.cominfo@reversopumps.com
0706 p. 10
