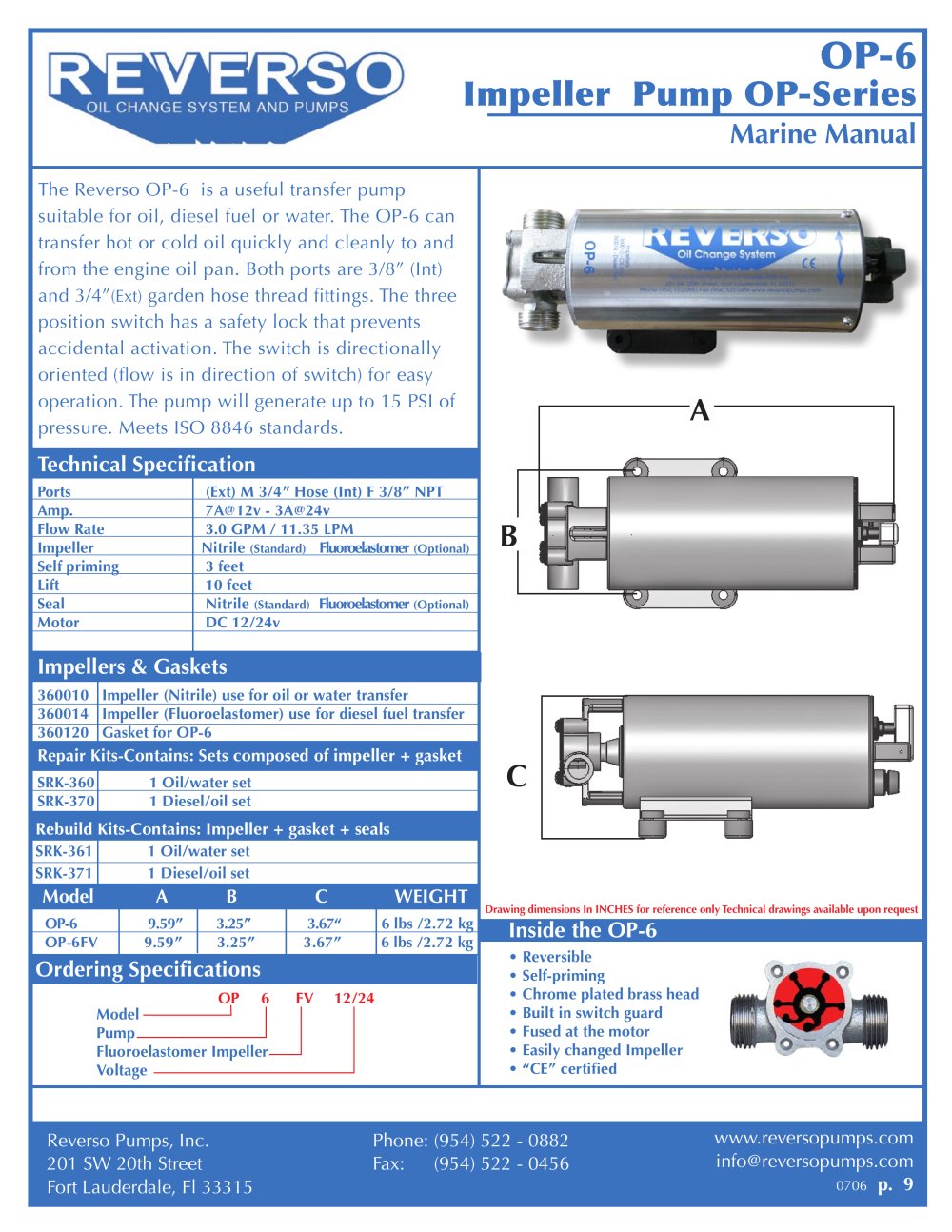

| | | OP-6 Impeller Pump OP-Series Marine Manual | | |
| | | |
| | | The Reverso OP-6 is a useful transfer pump suitable for oil, diesel fuel or water. The OP-6 can transfer hot or cold oil quickly and cleanly to and from the engine oil pan. Both ports are 3/8" (Int) and 3/4"(Ext) garden hose thread fittings. The three position switch has a safety lock that prevents accidental activation. The switch is directionally oriented (flow is in direction of switch) for easy operation. The pump will generate up to 15 PSI of pressure. Meets ISO 8846 standards. | | |
| | | |
| | | Technical Specification | | |
| | | |
| | | | | | | | | | Ports | (Ext) M 3/4" Hose (Int) F 3/8" NPT | | | | Amp. | 7A@12v - 3A@24v | | | | Flow Rate | 3.0 GPM / 11.35 LPM | | | | Impeller | Nitrile (Standard) Fluoroelastomer (Optional) | | | | Self priming | 3 feet | | | | Lift | 10 feet | | | | Seal | Nitrile (Standard) Fluoroelastomer (Optional) | | | | Motor | DC 12/24v | | | | | | | | | | | | | | |
| | | B | | |
| | | |
| | | Impellers & Gaskets | | |
| | | |
| | | Impeller (Nitrile) use for oil or water transfer | | |
| | | 360010 | | |
| | | |
| | | |
| | | Impeller (Fluoroelastomer) use for diesel fuel transfer | | |
| | | 360014 | | |
| | | |
| | | |
| | | Gasket for OP-6 | | |
| | | 360120 | | |
| | | |
| | | Repair Kits-Contains: Sets composed of impeller + gasket | | |
| | | C | | |
| | | |
| | | 1 Oil/water set | | |
| | | SRK-360 | | |
| | | |
| | | |
| | | 1 Diesel/oil set | | |
| | | SRK-370 | | |
| | | |
| | | Rebuild Kits-Contains: Impeller + gasket + seals | | |
| | | |
| | | Drawing dimensions In INCHES for reference only Technical drawings available upon request | | |
| | | |
| | | Inside the OP-6 | | |
| | | |
| | | • Reversible • Self-priming • Chrome plated brass head • Built in switch guard • Fused at the motor • Easily changed Impeller • "CE" certified | | |
| | | Ordering Specifications | | |
| | | |
| | | ^OP 6 FV 12/24 | | |
| | | Model Pump. | | |
| | | |
| | | |
| | | Fluoroelastomer Impeller-Voltage - | | |
| | | |
| | | |
| | | Phone: (954) 522 - 0882 Fax: (954) 522 - 0456 | | |
| | | Reverso Pumps, Inc. 201 SW 20th Street Fort Lauderdale, Fl 33315 | | |
| | | www.reversopumps.com info@reversopumps.com 0706 p. 9 | | |
| | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
