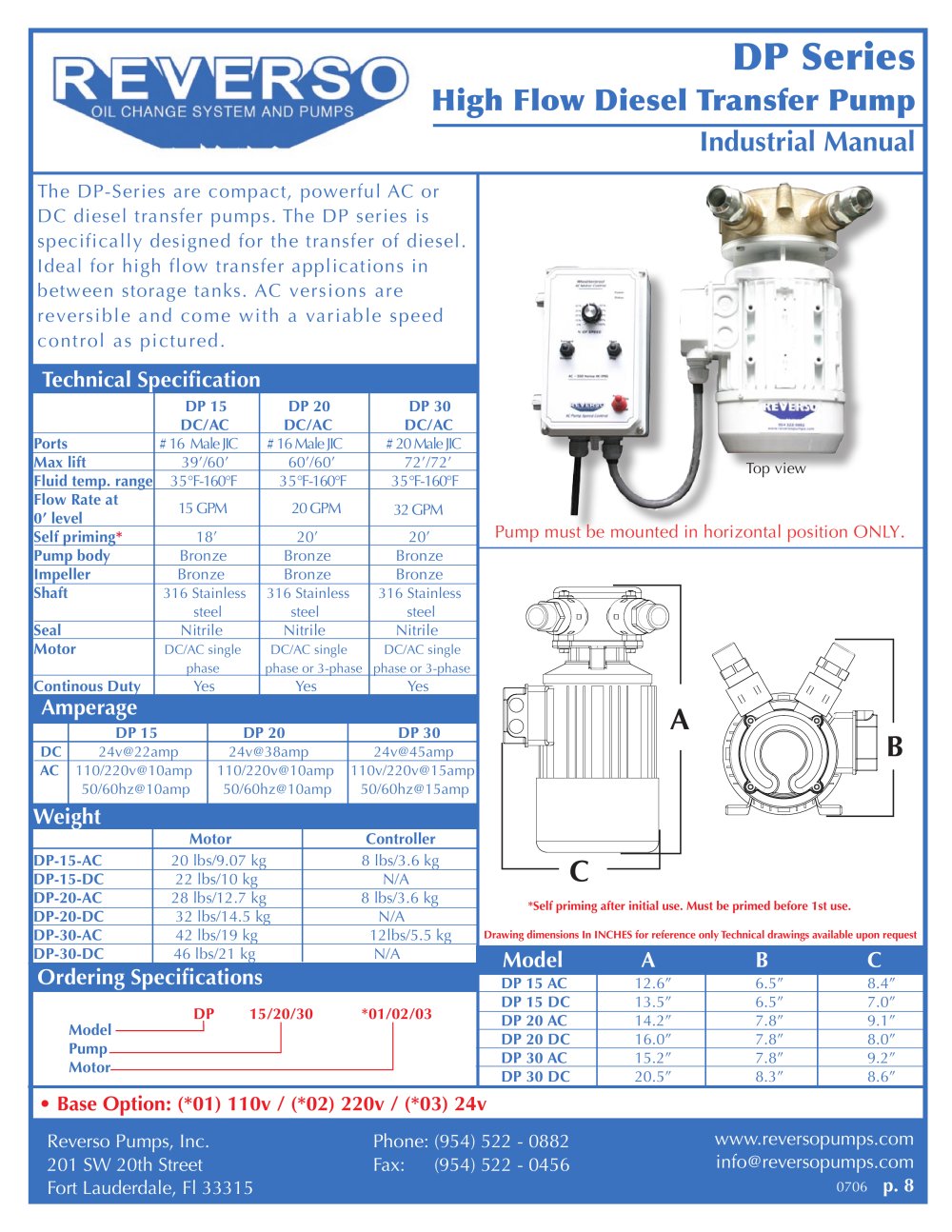

DP Series

High Flow Diesel Transfer Pump

Industrial Manual

The DP-Series are compact, powerful AC or DC diesel transfer pumps. The DP series is specifically designed for the transfer of diesel. Ideal for high flow transfer applications in between storage tanks. AC versions are reversible and come with a variable speed control as pictured.

Technical Specification

DP 15 DP 20 DP 30 DC/AC DC/AC DC/AC Ports # 16 Male JIC # 16 Male JIC # 20 Male JIC Max lift 39’/60’ 60’/60’ 72’/72’ 18’ 20’ 20’ Fluid temp. range Pump body 35°F-160°F 35°F-160°F 35°F-160°F Bronze Bronze Bronze Flow Rate at 0’ level Self priming* Impeller Bronze Bronze Bronze Top view Shaft 15 GPM20 GPM32 GPM

Pump must be mounted in horizontal position ONLY

.

316 Stainless 316 Stainless 316 Stainless steel steel steel Seal Nitrile Nitrile Nitrile Motor
DC/AC single DC/AC single DC/AC single phase phase or 3-phase phase or 3-phase Continous Duty Yes Yes Yes

Amperage

DP 15 DP 20 DP 30

A

DC 24v@22amp 24v@38amp 24v@45amp AC 110/220v@10amp 110/220v@10amp 110v/220v@15amp 50/60hz@10amp 50/60hz@10amp 50/60hz@15amp

B

Weight

Motor Controller DP-15-AC 20 lbs/9.07 kg 8 lbs/3.6 kg DP-15-DC 22 lbs/10 kg N/A DP-20-AC 28 lbs/12.7 kg 8 lbs/3.6 kg

C

DP-20-DC 32 lbs/14.5 kg N/A
*Self priming after initial use. Must be primed before 1st use. DP-30-AC 42 lbs/19 kg 12lbs/5.5 kg
Drawing dimensions In INCHES for reference only Technical drawings available upon request DP-30-DC 46 lbs/21 kg N/A

Model A B C Ordering Specifications

DP 15 AC 12.6” 6.5” 8.4” DP 15/20/30 *01/02/03 ModelPump Motor DP 15 DC 13.5” 6.5” 7.0” DP 20 AC 14.2” 7.8” 9.1” DP 20 DC 16.0” 7.8” 8.0” DP 30 AC 15.2” 7.8” 9.2” DP 30 DC 20.5” 8.3” 8.6”

• Base Option: (*01) 110v / (*02) 220v / (*03) 24v Reverso Pumps, Inc.201 SW 20th Street Fort Lauderdale, Fl 33315Phone: (954) 522 - 0882Fax: (954) 522 - 0456www.reversopumps.cominfo@reversopumps.com

0706

p. 8
