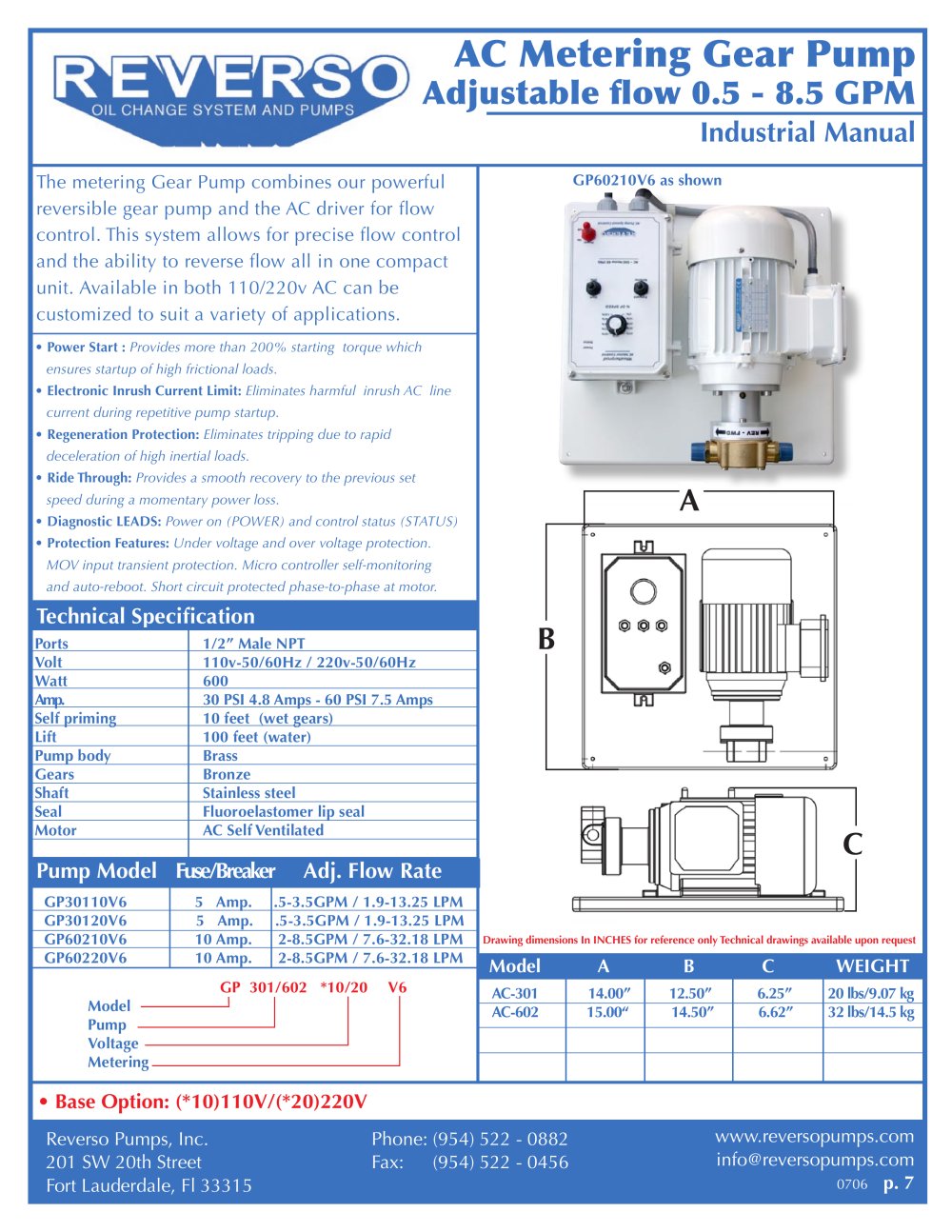

AC Metering Gear Pump Adjustable flow 0.5 - 8.5 GPM

Industrial Manual

The metering Gear Pump combines our powerful

GP60210V6 as shown

reversible gear pump and the AC driver for flow control. This system allows for precise flow control and the ability to reverse flow all in one compact unit. Available in both 110/220v AC can be customized to suit a variety of applications.

• Power Start : Provides more than 200% starting torque which ensures startup of high frictional loads. • Electronic Inrush Current Limit: Eliminates harmful inrush AC line current during repetitive pump startup. • Regeneration Protection: Eliminates tripping due to rapid deceleration of high inertial loads. • Ride Through: Provides a smooth recovery to the previous set speed during a momentary power loss. • Diagnostic LEADS: Power on (POWER) and control status (STATUS)

A

• Protection Features: Under voltage and over voltage protection. MOV input transient protection. Micro controller self-monitoring and auto-reboot. Short circuit protected phase-to-phase at motor.

Technical Specification

Ports 1/2” Male NPT Volt 110v-50/60Hz / 220v-50/60Hz

B

Watt 600 Amp. 30 PSI 4.8 Amps - 60 PSI 7.5 Amps Self priming 10 feet (wet gears) Lift 100 feet (water) Pump body Brass Gears Bronze Shaft Stainless steel Seal Fluoroelastomer lip seal Motor AC Self Ventilated

C

Pump Model Fuse/Breaker Adj. Flow Rate

GP30110V6 5 Amp. .5-3.5GPM / 1.9-13.25 LPM GP30120V6 5 Amp. .5-3.5GPM / 1.9-13.25 LPM GP60210V6 10 Amp. 2-8.5GPM / 7.6-32.18 LPM
Drawing dimensions In INCHES for reference only Technical drawings available upon request GP60220V6 10 Amp. 2-8.5GPM / 7.6-32.18 LPM

Model A B C WEIGHT

GP 301/602 *10/20 V6 AC-301 14.00” 12.50” 6.25” 20 lbs/9.07 kg Model AC-602 15.00“ 14.50” 6.62” 32 lbs/14.5 kg Pump Voltage Metering

• Base Option: (*10)110V/(*20)220V

Reverso Pumps, Inc. Phone: (954) 522 - 0882 www.reversopumps.com 201 SW 20th Street Fax: (954) 522 - 0456 info@reversopumps.com Fort Lauderdale, Fl 33315

0706

p. 7
