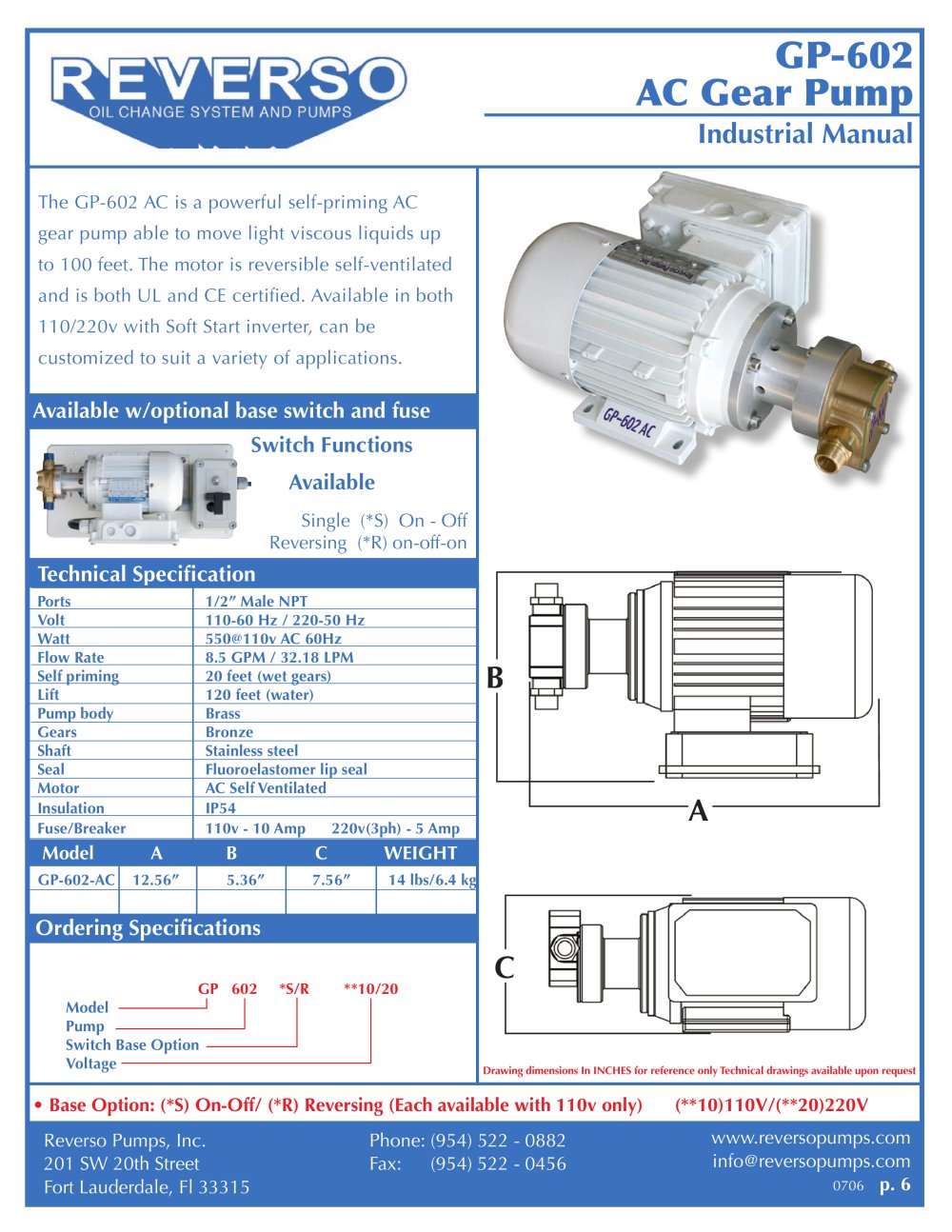

GP-602 AC Gear Pump

Industrial Manual

The GP-602 AC is a powerful self-priming AC gear pump able to move light viscous liquids up to 100 feet. The motor is reversible self-ventilated and is both UL and CE certified. Available in both 110/220v with Soft Start inverter, can be customized to suit a variety of applications.

Available w/optional base switch and fuse Switch Functions Available

Single (*S) On - Off Reversing (*R) on-off-on

Technical Specification

Ports 1/2” Male NPT Volt 110-60 Hz / 220-50 Hz Watt 550@110v AC 60Hz Flow Rate 8.5 GPM / 32.18 LPM Self priming 20 feet (wet gears) Lift 120 feet (water)

B

Pump body Brass Gears Bronze Shaft Stainless steel Seal Fluoroelastomer lip seal Motor AC Self Ventilated Insulation IP54 Fuse/Breaker 110v - 10 Amp 220v(3ph) - 5 Amp

A

Model A B C WEIGHT

GP-602-AC 12.56” 5.36” 7.56” 14 lbs/6.4 kg

Ordering Specifications

GP 602 *S/R **10/20

C

Model Pump Switch Base Option Voltage
Drawing dimensions In INCHES for reference only Technical drawings available upon request

• Base Option: (*S) On-Off/ (*R) Reversing (Each available with 110v only) (**10)110V/(**20)220V Reverso Pumps, Inc. Phone: (954) 522 - 0882 www.reversopumps.com 201 SW 20th Street Fax: (954) 522 - 0456 info@reversopumps.com Fort Lauderdale, Fl 33315

0706
