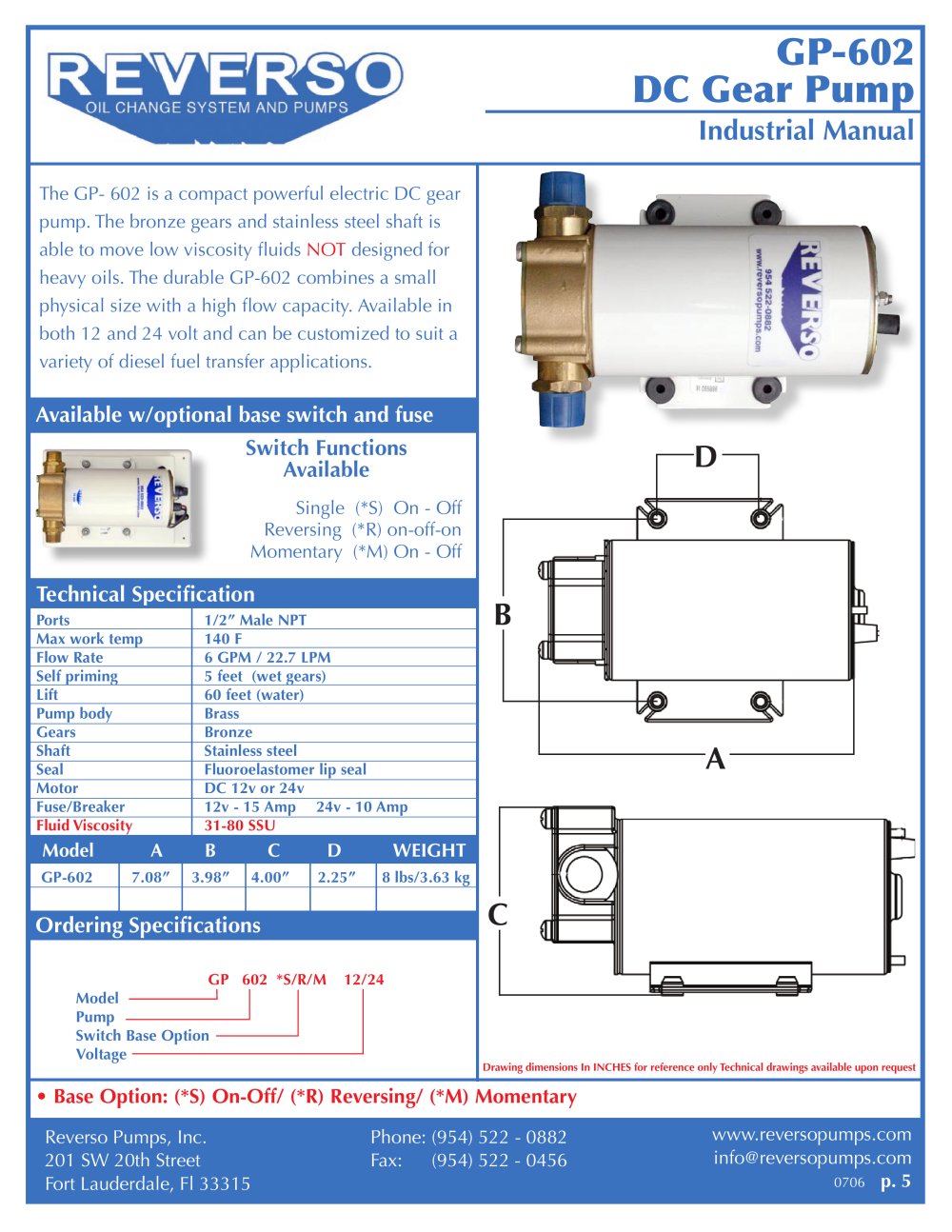

GP-602 DC Gear Pump

Industrial Manual

The GP- 602 is a compact powerful electric DC gear pump. The bronze gears and stainless steel shaft is able to move low viscosity fluids NOT designed for heavy oils. The durable GP-602 combines a small physical size with a high flow capacity. Available in both 12 and 24 volt and can be customized to suit a variety of diesel fuel transfer applications.

Available w/optional base switch and fuse Switch Functions Available

D

Single (*S) On - Off Reversing (*R) on-off-on Momentary (*M) On - Off

Technical Specification

Ports 1/2” Male NPT Max work temp 140 F

B

Flow Rate 6 GPM / 22.7 LPM Self priming 5 feet (wet gears) Lift 60 feet (water) Pump body Brass Gears Bronze Shaft Stainless steel Seal Fluoroelastomer lip seal

A

Motor DC 12v or 24v Fuse/Breaker 12v - 15 Amp 24v - 10 Amp Fluid Viscosity 31-80 SSU

Model A B C D WEIGHT

GP-602 7.08” 3.98” 4.00” 2.25” 8 lbs/3.63 kg

Ordering Specifications

C

GP 602 *S/R/M 12/24 Model Pump Switch Base Option Voltage
Drawing dimensions In INCHES for reference only Technical drawings available upon request

• Base Option: (*S) On-Off/ (*R) Reversing/ (*M) Momentary

Reverso Pumps, Inc. Phone: (954) 522 - 0882 www.reversopumps.com 201 SW 20th Street Fax: (954) 522 - 0456 info@reversopumps.com Fort Lauderdale, Fl 33315

0706

p. 5
