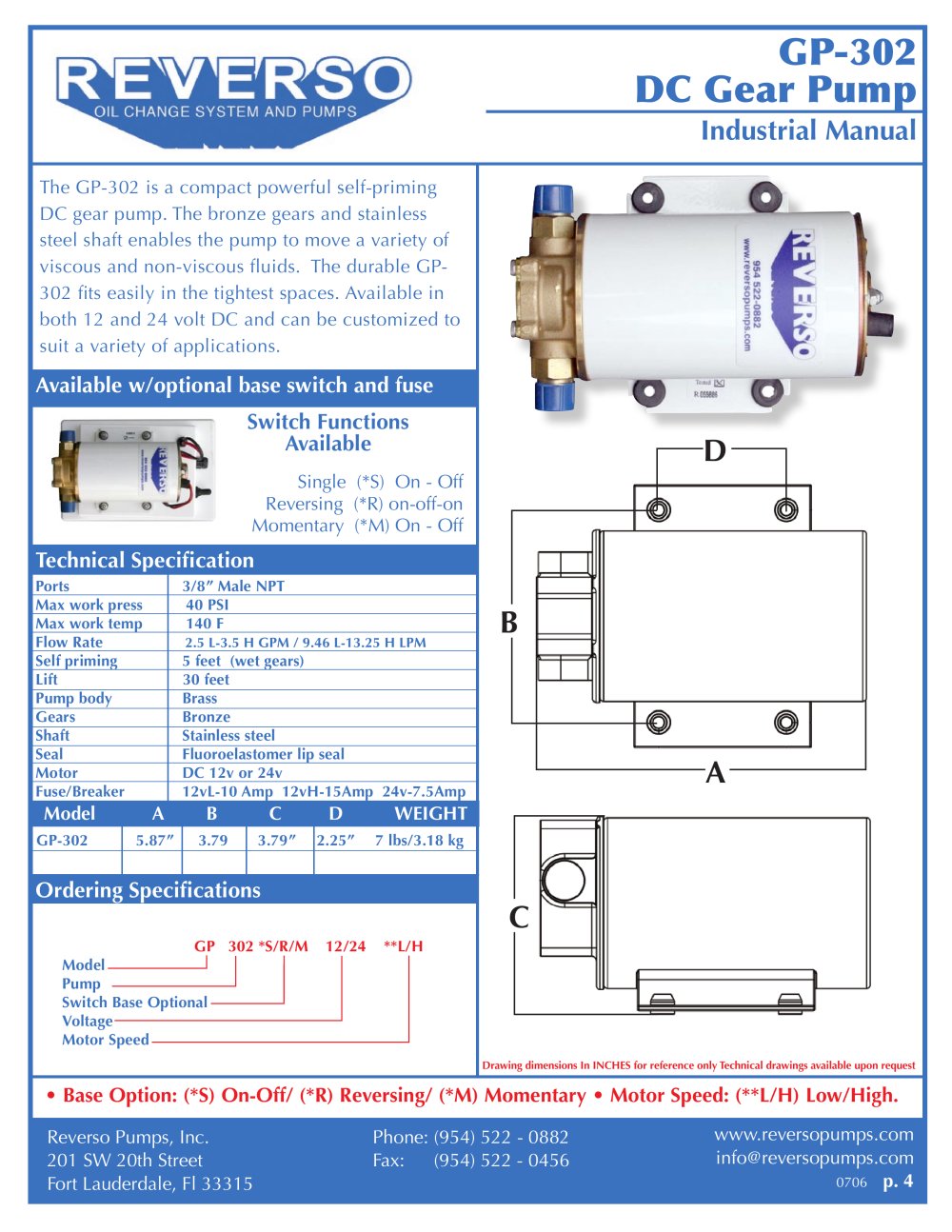

GP-302 DC Gear Pump

Industrial Manual

The GP-302 is a compact powerful self-priming DC gear pump. The bronze gears and stainless steel shaft enables the pump to move a variety of viscous and non-viscous fluids. The durable GP- 302 fits easily in the tightest spaces. Available in both 12 and 24 volt DC and can be customized to suit a variety of applications.

Available w/optional base switch and fuse Switch Functions Available

D

Single (*S) On - Off Reversing (*R) on-off-on Momentary (*M) On - Off

Technical Specification

Ports 3/8” Male NPT Max work press 40 PSI Max work temp 140 F Flow Rate
2.5 L-3.5 H GPM / 9.46 L-13.25 H LPM

B

Self priming 5 feet (wet gears) Lift 30 feet Pump body Brass Gears Bronze Shaft Stainless steel Seal Fluoroelastomer lip seal Motor DC 12v or 24v Fuse/Breaker 12vL-10 Amp 12vH-15Amp 24v-7.5Amp

A

Model A B C D WEIGHT

GP-302 5.87” 3.79 3.79 ” 2.25” 7 lbs/3.18 kg

Ordering Specifications

C

GP 302 *S/R/M 12/24 **L/H Model Pump Switch Base Optional Voltage Motor Speed
Drawing dimensions In INCHES for reference only Technical drawings available upon request

• Base Option: (*S) On-Off/ (*R) Reversing/ (*M) Momentary • Motor Speed: (**L/H) Low/High.

Reverso Pumps, Inc. Phone: (954) 522 - 0882 www.reversopumps.com 201 SW 20th Street Fax: (954) 522 - 0456 info@reversopumps.com Fort Lauderdale, Fl 33315

0706

p. 4
