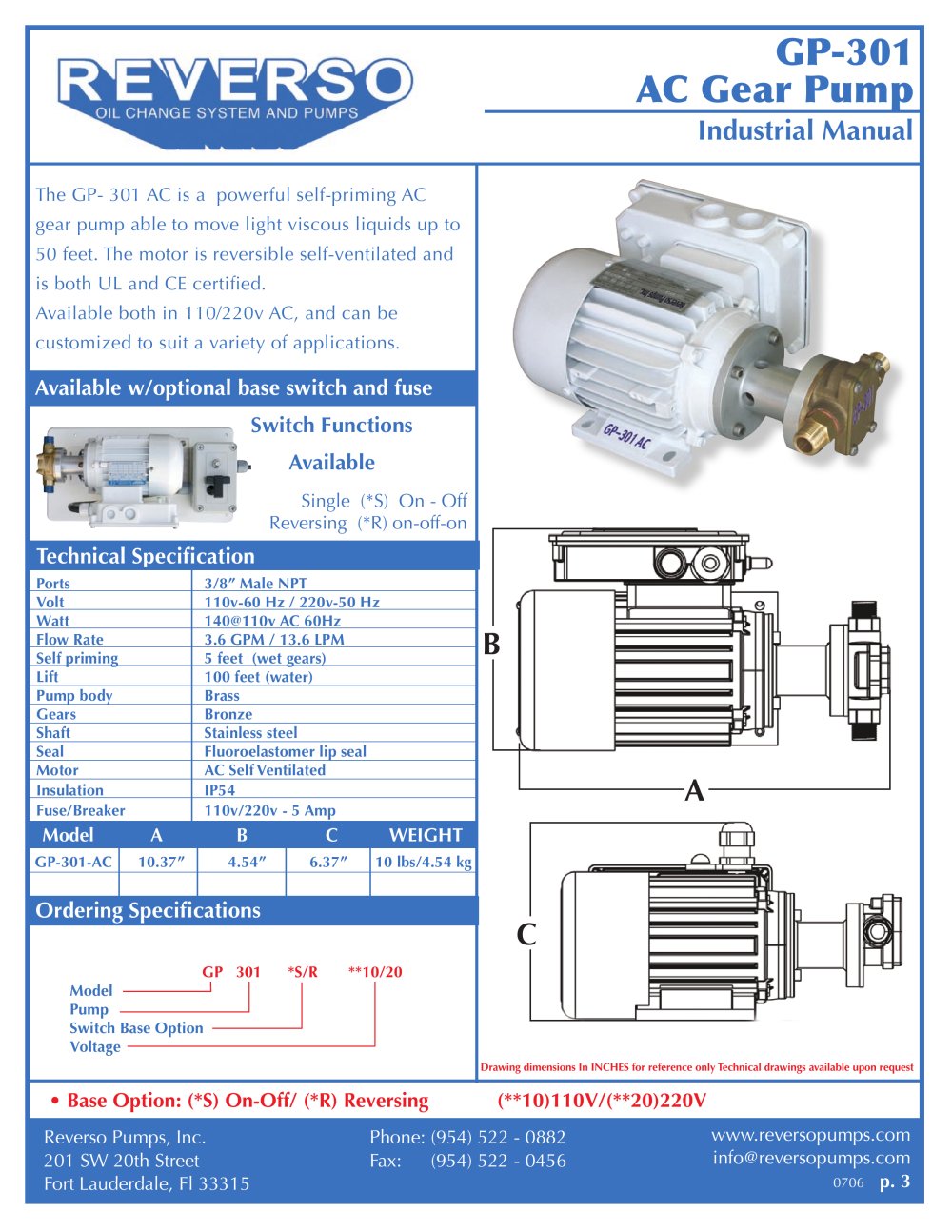

GP-301 AC Gear Pump

Industrial Manual

The GP- 301 AC is a powerful self-priming AC gear pump able to move light viscous liquids up to 50 feet. The motor is reversible self-ventilated and is both UL and CE certified. Available both in 110/220v AC, and can be customized to suit a variety of applications.

Available w/optional base switch and fuse Switch Functions Available

Single (*S) On - Off Reversing (*R) on-off-on

Technical Specification

Ports 3/8” Male NPT Volt 110v-60 Hz / 220v-50 Hz Watt 140@110v AC 60Hz Flow Rate 3.6 GPM / 13.6 LPM Self priming 5 feet (wet gears)

B

Lift 100 feet (water) Pump body Brass Gears Bronze Shaft Stainless steel Seal Fluoroelastomer lip seal Motor AC Self Ventilated Insulation IP54 Fuse/Breaker 110v/220v - 5 Amp

A

Model A B C WEIGHT

GP-301-AC 10.37” 4.54” 6.37” 10 lbs/4.54 kg

Ordering Specifications

C

GP 301 *S/R **10/20 Model Pump Switch Base Option Voltage
Drawing dimensions In INCHES for reference only Technical drawings available upon request

• Base Option: (*S) On-Off/ (*R) Reversing (**10)110V/(**20)220V

Reverso Pumps, Inc. Phone: (954) 522 - 0882 www.reversopumps.com 201 SW 20th Street Fax: (954) 522 - 0456 info@reversopumps.com Fort Lauderdale, Fl 33315

0706

p. 3
