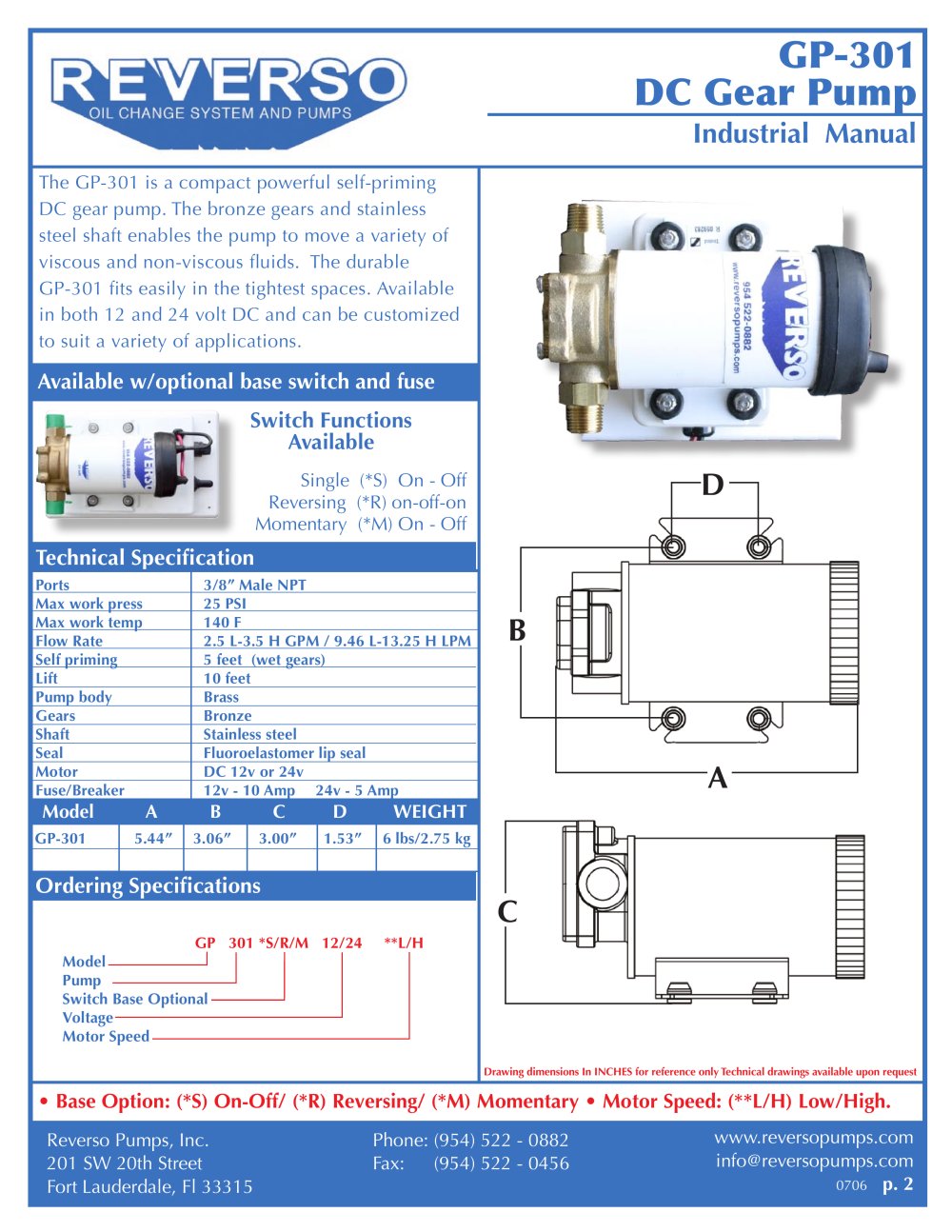

GP-301 DC Gear Pump

Industrial Manual

The GP-301 is a compact powerful self-priming DC gear pump. The bronze gears and stainless steel shaft enables the pump to move a variety of viscous and non-viscous fluids. The durable GP-301 fits easily in the tightest spaces. Available in both 12 and 24 volt DC and can be customized to suit a variety of applications.

Available w/optional base switch and fuse Switch Functions Available

Single (*S) On - Off Reversing (*R) on-off-on

D

Momentary (*M) On - Off

Technical Specification

Ports 3/8” Male NPT Max work press 25 PSI Max work temp 140 F Flow Rate 2.5 L-3.5 H GPM / 9.46 L-13.25 H LPM

B

Self priming 5 feet (wet gears) Lift 10 feet Pump body Brass Gears Bronze Shaft Stainless steel Seal Fluoroelastomer lip seal Motor DC 12v or 24v Fuse/Breaker 12v - 10 Amp 24v - 5 Amp

A

Model A B C D WEIGHT

GP-301 5.44” 3.06” 3.00” 1.53” 6 lbs/2.75 kg

Ordering Specifications

C

GP 301 *S/R/M 12/24 **L/H Model Pump Switch Base Optional Voltage Motor Speed
Drawing dimensions In INCHES for reference only Technical drawings available upon request

• Base Option: (*S) On-Off/ (*R) Reversing/ (*M) Momentary • Motor Speed: (**L/H) Low/High.

Reverso Pumps, Inc. Phone: (954) 522 - 0882 www.reversopumps.com 201 SW 20th Street Fax: (954) 522 - 0456 info@reversopumps.com Fort Lauderdale, Fl 33315

0706

p. 2
