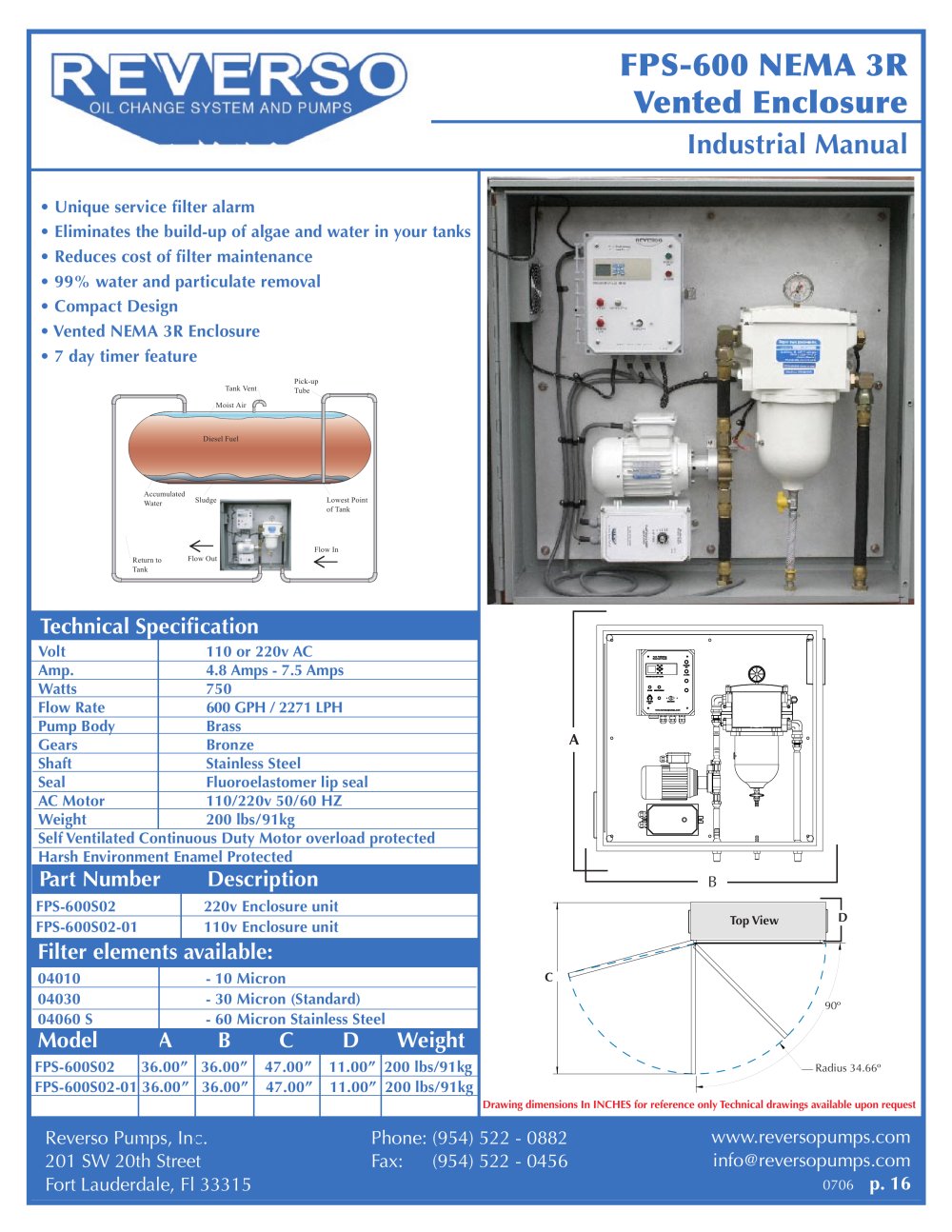

FPS-600 NEMA 3R Vented Enclosure Industrial Manual

• Unique service filter a larm • Eliminates the build-up of algae and water in your tanks • Reduces cost of filter maintenance • 99% water and particulate removal • Compact Design • Vented NEMA 3R Enclosure • 7 day timer feature

Pick-up Tube Return toTank Diesel FuelSludgeLowest Point of TankAccumulatedWater Moist Air Flow OutFlow In Tank Vent

Technical Specification

Volt 110 or 220v AC Amp. 4.8 Amps - 7.5 Amps Watts 750 Flow Rate 600 GPH / 2271 LPH Pump Body Brass Gears Bronze

A

Shaft Stainless Steel Seal Fluoroelastomer lip seal AC Motor 110/220v 50/60 HZ Weight 200 lbs/ 91kg Self Ventilated Continuous Duty Motor overload protected Harsh Environment Enamel Protected

Part Number Description

B

FPS-600S02 220v Enclosure unit FPS-600S02-01 110v Enclosure unit
Top View D

Filter elements available:

04010 - 10 Micron
C 04030 - 30 Micron (Standard)
90º 04060 S - 60 Micron Stainless Steel

Model A B C D Weight

FPS-600S02 36.00” 36.00” 47.00” 11.00” 200 lbs/91kg
Radius 34.66º FPS-600S02-01 36.00” 36.00” 47.00” 11.00” 200 lbs/91kg
Drawing dimensions In INCHES for reference only Technical drawings available upon request

Reverso Pumps, Inc. Phone: (954) 522 - 0882 www.reversopumps.com 201 SW 20th Street Fax: (954) 522 - 0456 info@reversopumps.com Fort Lauderdale, Fl 33315

0706

p. 16
