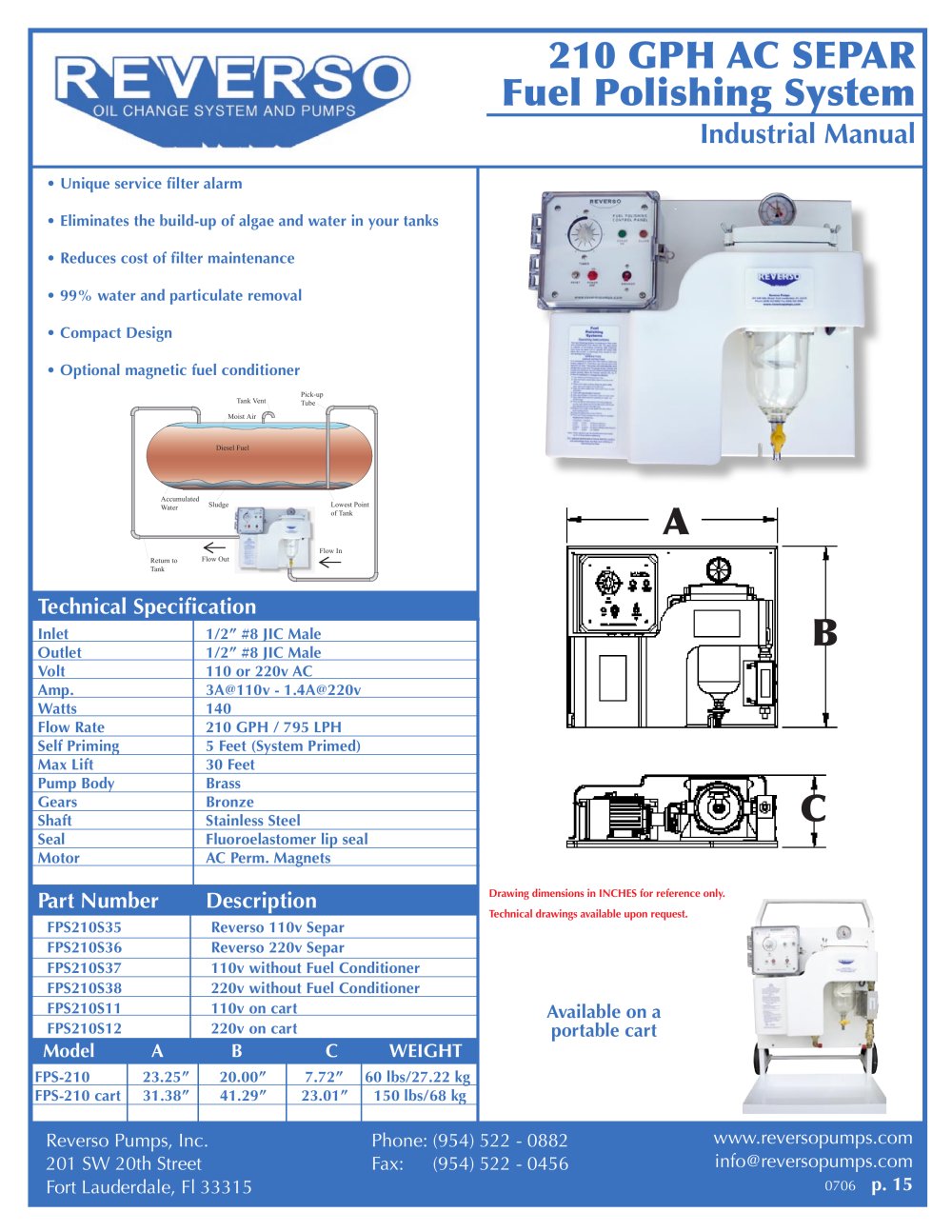

210 GPH AC SEPAR Fuel Polishing System

Industrial Manual

• Unique service filter a larm • Eliminates the build-up of algae and water in your tanks • Reduces cost of filter maintenance • 99% water and particulate removal • Compact Design • Optional magnetic fuel conditioner
Pick-up Tube Return toTank Diesel FuelSludgeLowest Point of TankAccumulated Water Moist Air Flow OutFlow In Tank Vent

A

Technical Specification

Inlet 1/2” #8 JIC Male Outlet 1/2” #8 JIC Male

B

Volt 110 or 220v AC Amp. 3A@110v - 1.4A@220v Watts 140 Flow Rate 210 GPH / 795 LPH Self Priming 5 Feet (System Primed) Max Lift 30 Feet Pump Body Brass Gears Bronze Shaft Stainless Steel Seal Fluoroelastomer lip seal

C

Motor AC Perm. Magnets

Part Number Description

Drawing dimensions in INCHES for reference only. Technical drawings available upon request. FPS210S35 Reverso 110v Separ FPS210S36 Reverso 220v Separ FPS210S37 110v without Fuel Conditioner FPS210S38 220v without Fuel Conditioner FPS210S11 110v on cart

Available on a

FPS210S12 220v on cart

portable cart Model A B C WEIGHT

FPS-210 23.25” 20.00” 7.72” 60 lbs/27.22 kg FPS-210 cart 31.38” 41.29” 23.01” 150 lbs/68 kg

Reverso Pumps, Inc. Phone: (954) 522 - 0882 www.reversopumps.com 201 SW 20th Street Fax: (954) 522 - 0456 info@reversopumps.com Fort Lauderdale, Fl 33315

0706

p. 15
