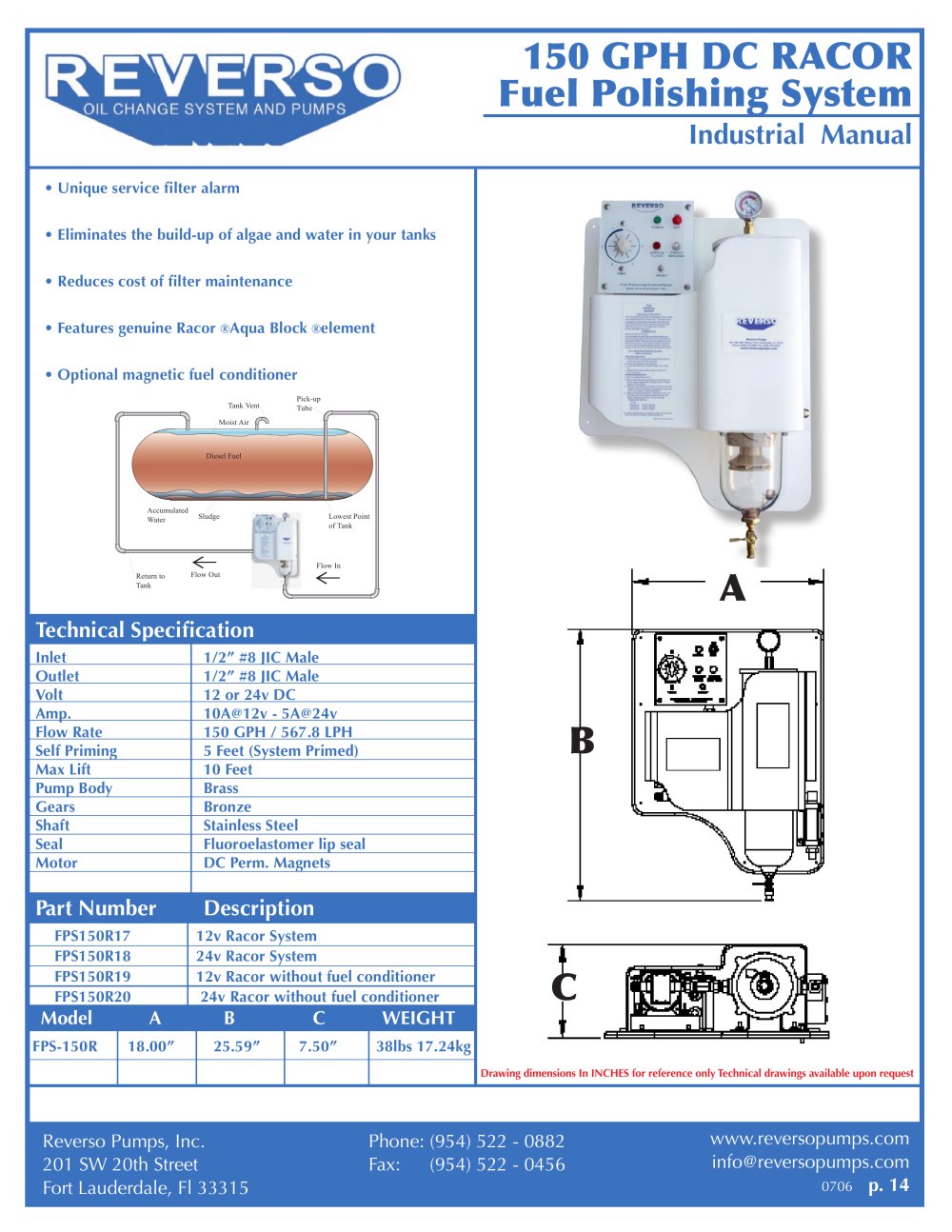

150 GPH DC RACOR Fuel Polishing System

Industrial Manual

• Unique service filter alarm • Eliminates the build-up of algae and water in your tanks • Reduces cost of filter maintenance • Features genuine Racor
® Aqua Block
® element • Optional magnetic fuel conditioner
Pick-up Tube Return to Tank Diesel FuelSludgeLowest Point of TankAccumulated Water Moist Air Flow OutFlow In Tank Vent

A

Technical Specification

Inlet 1/2” #8 JIC Male Outlet 1/2” #8 JIC Male Volt 12 or 24v DC Amp. 10A@12v - 5A@24v Flow Rate 150 GPH / 567.8 LPH Self Priming 5 Feet (System Primed) Max Lift 10 Feet

B

Pump Body Brass Gears Bronze Shaft Stainless Steel Seal Fluoroelastomer lip seal Motor DC Perm. Magnets

Part Number Description

FPS150R17 12v Racor System FPS150R18 24v Racor System FPS150R19 12v Racor without fuel conditioner FPS150R20 24v Racor without fuel conditioner

Model A B C WEIGHT

C

FPS-150R 18.00” 25.59” 7.50” 38lbs 17.24kg
Drawing dimensions In INCHES for reference only Technical drawings available upon request

Reverso Pumps, Inc. Phone: (954) 522 - 0882 www.reversopumps.com 201 SW 20th Street Fax: (954) 522 - 0456 info@reversopumps.com Fort Lauderdale, Fl 33315

0706

p. 14
