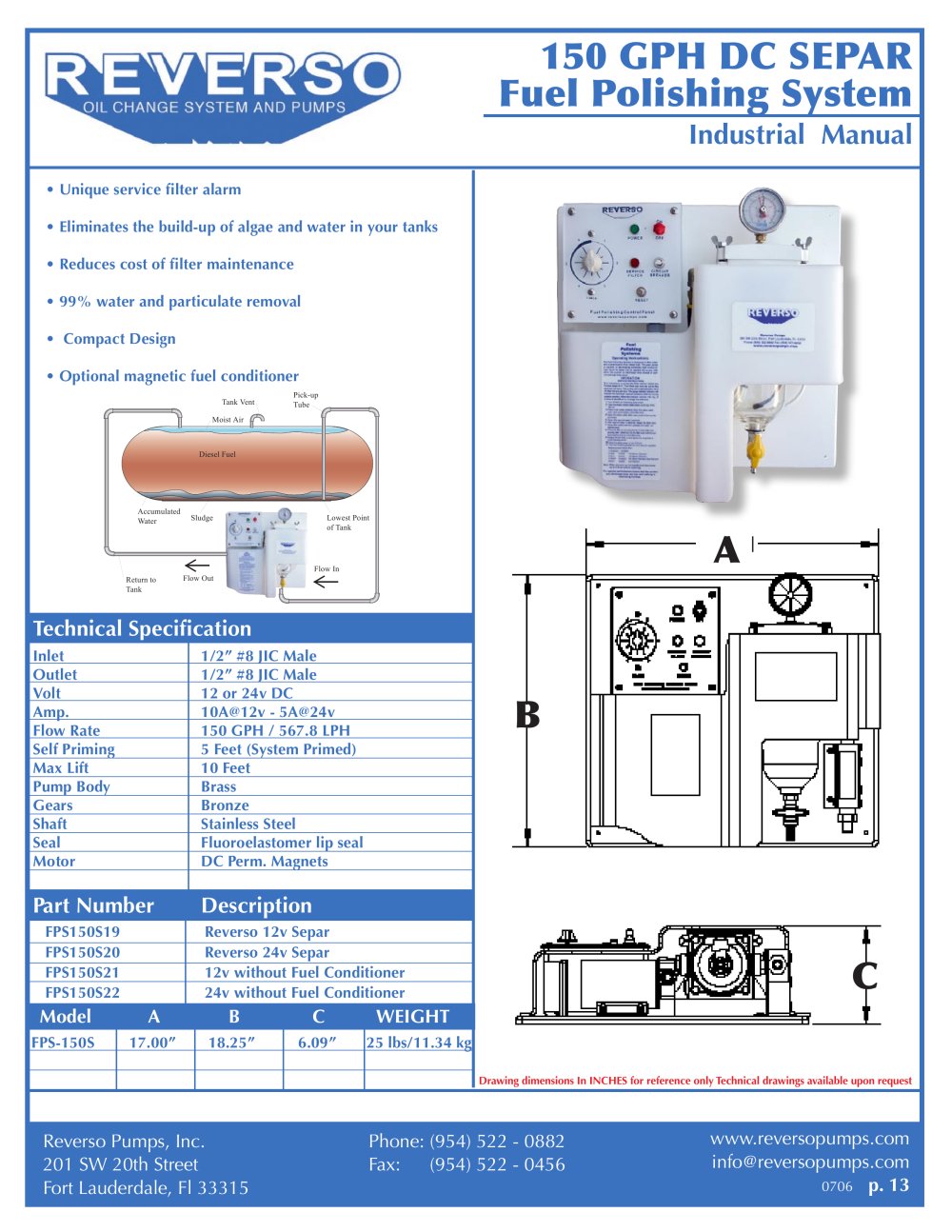

150 GPH DC SEPAR Fuel Polishing System

Industrial Manual

• Unique service filter alarm • Eliminates the build-up of algae and water in your tanks • Reduces cost of filter maintenance • 99% water and particulate removal • Compact Design • Optional magnetic fuel conditioner
Pick-up Tube Return to Tank Diesel FuelSludgeLowest Point of TankAccumulated Water Moist Air Flow OutFlow In Tank Vent

A

Technical Specification

Inlet 1/2” #8 JIC Male Outlet 1/2” #8 JIC Male Volt 12 or 24v DC Amp. 10A@12v - 5A@24v Flow Rate 150 GPH / 567.8 LPH Self Priming 5 Feet (System Primed)

B

Max Lift 10 Feet Pump Body Brass Gears Bronze Shaft Stainless Steel Seal Fluoroelastomer lip seal Motor DC Perm. Magnets

Part Number Description

FPS150S19 Reverso 12v Separ FPS150S20 Reverso 24v Separ FPS150S21 12v without Fuel Conditioner FPS150S22 24v without Fuel Conditioner

C

Model A B C WEIGHT

FPS-150S 17.00” 18.25 ” 6.09” 25 lbs/11.34 kg
Drawing dimensions In INCHES for reference only Technical drawings available upon request

Reverso Pumps, Inc. Phone: (954) 522 - 0882 www.reversopumps.com 201 SW 20th Street Fax: (954) 522 - 0456 info@reversopumps.com Fort Lauderdale, Fl 33315

0706

p. 13
