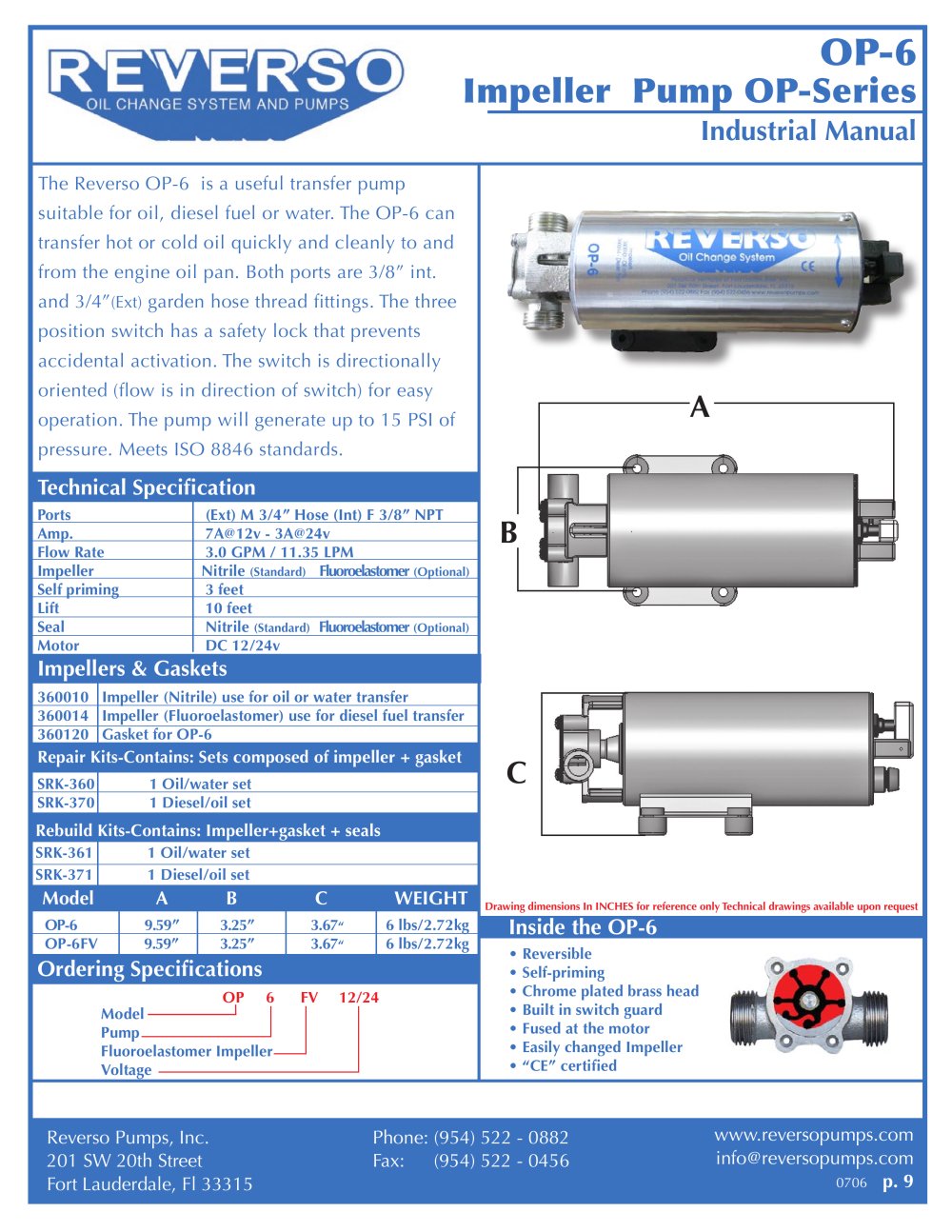

OP-6 Impeller Pump OP-Series

Industrial Manual

The Reverso OP-6 is a useful transfer pump suitable for oil, diesel fuel or water. The OP-6 can transfer hot or cold oil quickly and cleanly to and from the engine oil marine pan. Both ports are 3/8” int. and 3/4”

(Ext)

garden hose thread fittings. The three position switch has a safety lock that prevents accidental activation. The switch is directionally oriented (flow is in direction of switch) for easy operation. The pump will generate up to 15 PSI of

A

pressure. Meets ISO 8846 standards.

Technical Specification

Ports (Ext) M 3/4” Hose (Int) F 3/8” NPT Amp. 7A@12v - 3A@24v Flow Rate 3.0 GPM / 11.35 LPM

B

Impeller Nitrile
(Standard) Fluoroelastomer
(Optional) Self priming 3 feet Lift 10 feet Seal Nitrile
(Standard) Fluoroelastomer
(Optional) Motor DC 12/24v

Impellers & Gaskets

360010 Impeller (Nitrile) use for oil or water transfer 360014 Impeller (Fluoroelastomer) use for diesel fuel transfer 360120 Gasket for OP-6

Repair Kits-Contains: Sets composed of impeller + gasket

SRK-360 1 Oil/water set

C

SRK-370 1 Diesel/oil set

Rebuild Kits-Contains: Impeller+gasket + seals

SRK-361 1 Oil/water set SRK-371 1 Diesel/oil set

Model A B C WEIGHT

Drawing dimensions In INCHES for reference only Technical drawings available upon request OP-6 9.59” 3.25” 3.67
“ 6 lbs/2.72kg OP-6FV 9.59” 3.25” 3.67
“ 6 lbs/2.72kg

Inside the OP-6

• Reversible

Ordering Specifications

• Self-priming OP 6 FV 12/24 • Chrome plated brass head Model • Built in switch guard Pump • Fused at the motor Fluoroelastomer Impeller • Easily changed Impeller Voltage • “CE” certified

Reverso Pumps, Inc. Phone: (954) 522 - 0882 www.reversopumps.com 201 SW 20th Street Fax: (954) 522 - 0456 info@reversopumps.com Fort Lauderdale, Fl 33315

0706

p. 9
