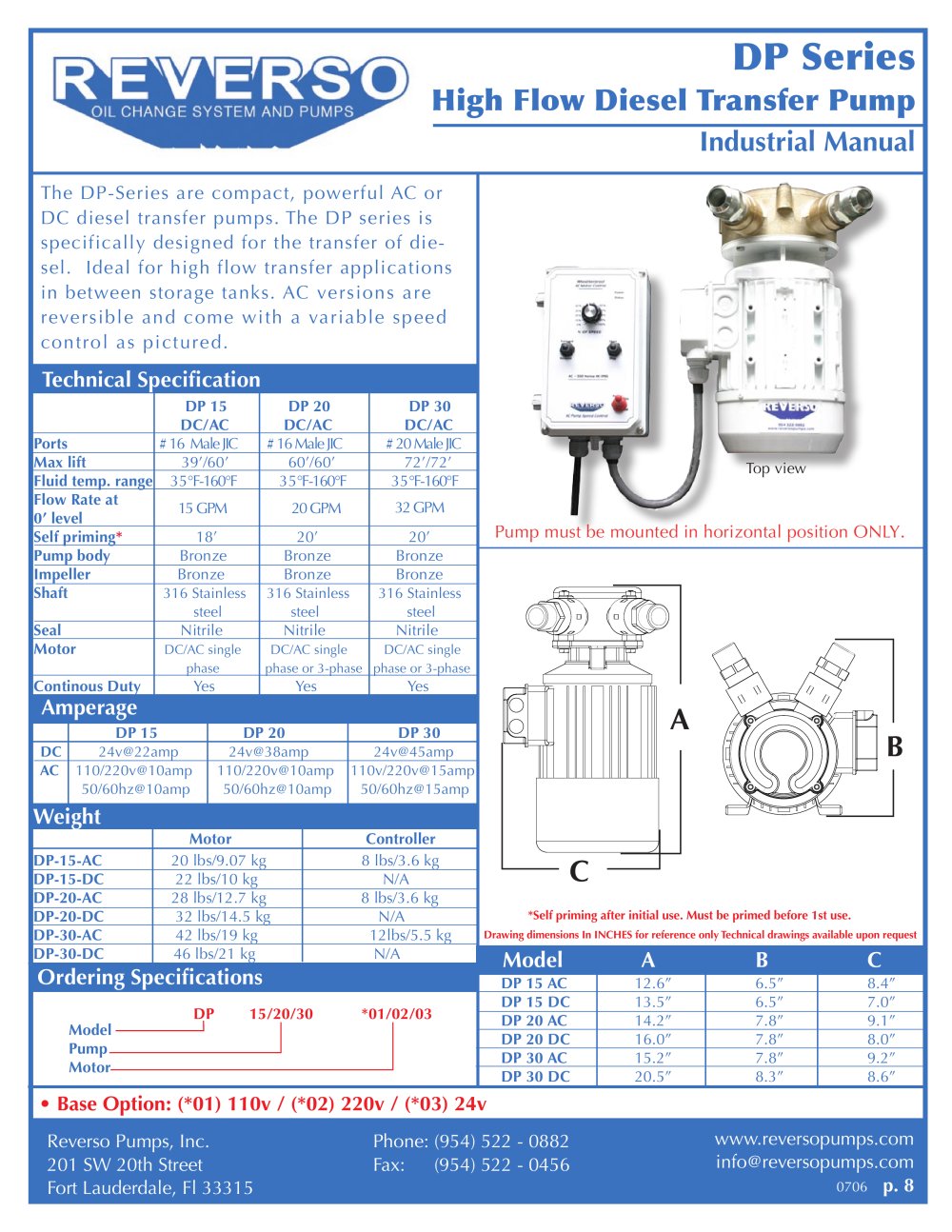

DP Series
High Flow Diesel Transfer Pump
Industrial Manual
The DP-Series are compact, powerful AC or DC diesel transfer pumps. The DP series is specifically designed for the transfer of die - sel. Ideal for high flow transfer applications in between storage tanks. AC versions are reversible and come with a variable speed control as pictured.
Technical Specification
DP 15 DP 20 DP 30 DC/AC DC/AC DC/AC Ports # 16 Male JIC # 16 Male JIC # 20 Male JIC Max lift 39’/60’ 60’/60’ 72’/72’
Boat top view Fluid temp. range 35 °F-160 °F 35 °F-160 °F 35 °F-160 °F Flow Rate at 0’ level 15 GPM 20 GPM 32 GPM Self priming * 18’ 20’ 20’
Pump must be mounted in horizontal position ONLY
.
Pump body Bronze Bronze Bronze Impeller Bronze Bronze Bronze Shaft
316 Stainless 316 Stainless 316 Stainless steel steel steel Seal Nitrile Nitrile Nitrile Motor
DC/AC single DC/AC single DC/AC single phase phase or 3-phase phase or 3-phase Continous Duty Yes Yes Yes
Amperage
DP 15 DP 20 DP 30
A
DC 24v@22amp 24v@38amp 24v@45amp AC 110/220v@10amp 110/220v@10amp 110v/220v@15amp B
50/60hz@10amp 50/60hz@10amp 50/60hz@15amp Weight
Motor Controller DP-15-AC 20 lbs/9.07 kg 8 lbs/3.6 kg DP-15-DC 22 lbs/10 kg N/A DP-20-AC 28 lbs/12.7 kg 8 lbs/3.6 kg
C
DP-20-DC 32 lbs /14.5 kg N/A
*Self priming after initial use. Must be primed before 1st use. DP-30-AC 42 lbs/19 kg 12lbs/5.5 kg
Drawing dimensions In INCHES for reference only Technical drawings available upon request DP-30-DC 46 lbs/21 kg N/A
Model A B C Ordering Specifications
DP 15 AC 12.6” 6.5” 8.4” DP 15/20/30 *01/02/03 DP 15 DC 13.5” 6.5” 7.0” Model DP 20 AC 14.2” 7.8” 9.1” Pump DP 20 DC 16.0” 7.8” 8.0” Motor DP 30 AC 15.2” 7.8” 9.2” DP 30 DC 20.5” 8.3” 8.6”
• Base Option: (*01) 110v / (*02) 220v / (*03) 24v Reverso Pumps, Inc. Phone: (954) 522 - 0882 www.reversopumps.com 201 SW 20th Street Fax: (954) 522 - 0456 info@reversopumps.com Fort Lauderdale, Fl 33315
0706 p. 8
