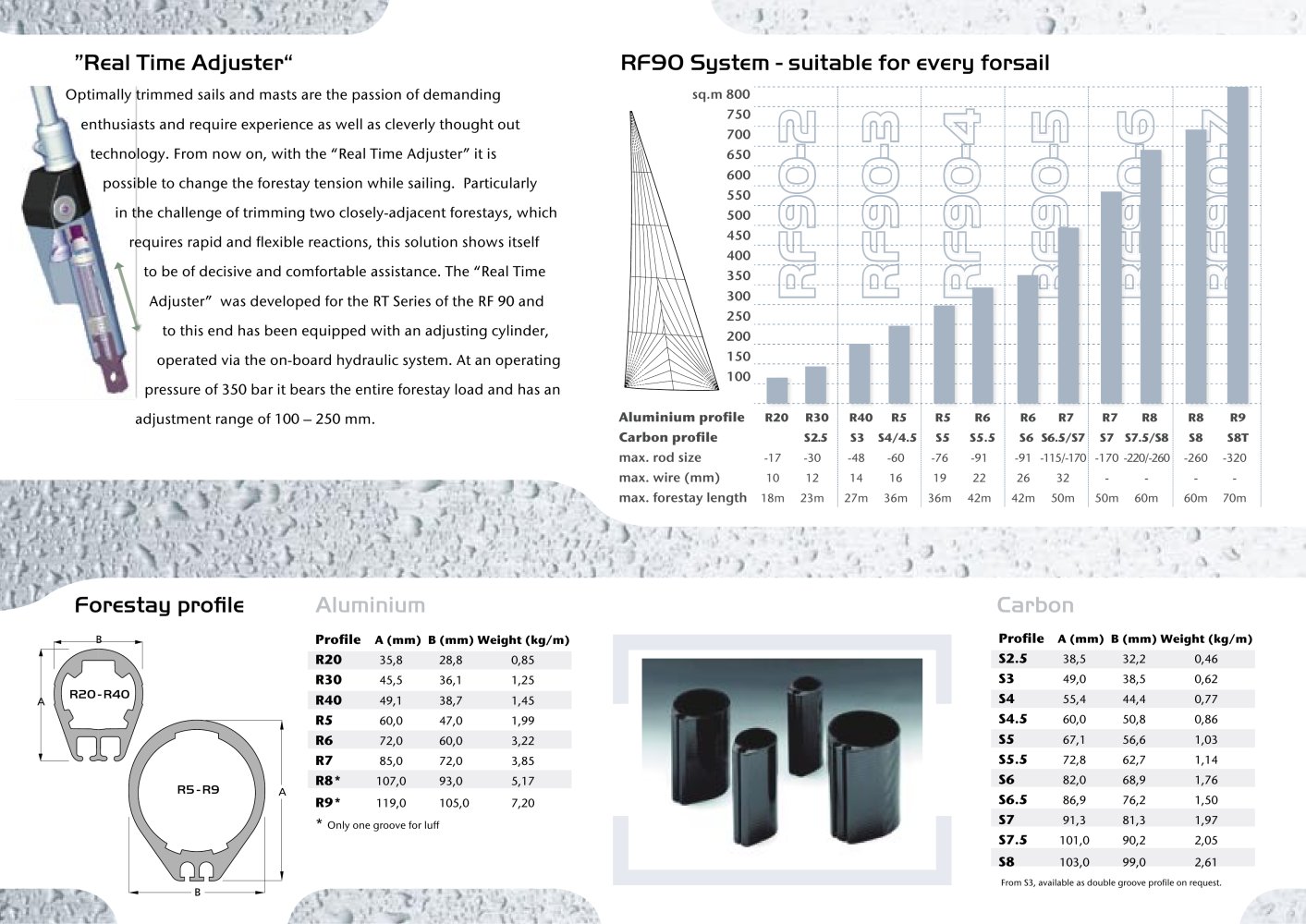

| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | "RealTime Adjuster" Optimally trimmed sails and masts are the passion of demanding enthusiasts and require experience as well as cleverly thought out technology. From now on, with the "Real Time Adjuster" it is possible to change the forestay tension while sailing. Particularly in the challenge oftrimming two closely-adjacentforestays, which requires rapid and flexible reactions, this solution shows itself to be of decisive and comfortable assistance. The "Real Time Adjuster" was developed for the RT Series of the RF 90 and V to this end has been equipped with an adjusting cylinder, operated via the on-board hydraulic system. At an operating | pressure of 350 bar it bears the entire forestay load and has an adjustment range oflOO- 250 mm. | | RF90 System - suitable for every forsail | | | | | | | | | | sq.m 800 750 700 650 600 550 500 450 400 350 300 250 200 150 100 Aluminium profile Carbon profile max. rod size max. wire (mm) max. forestay length | | | | | | R30 S2.5 -17 -30 10 12 18m 23m P * | | R40 R5 S3 S4/4.S -48 -60 14 16 27m 36m | | R5 S5 -76 -91 19 22 36m 42m | | R6 R7 S6 S6.S/S7 -91 -115/-170 26 32 42m 50m | | R7 R8 S7 S7.S/S8 -170 -220/-260 50m 60m | | R8 S8 -260 60m i | | R9 S8T -320 70m | | | | | | | | | | | | | | | | | | | * y | | | | | | | | | | | | | | | | | | Forestay profile | | Aluminium | | fanhnn | | | | | | | | | | | | | | Profile A (mm) B(mm)Weight(kg/m) | | | | | | Profile A (mm) B(mm)Weight(kg/m) | | | | | | | | | | | | | | | | | | | | | | S2.5 38,5 | 32,2 | 0,46 | | | | S3 49,0 | 38,5 | 0,62 | | | | S4 55,4 | 44,4 | 0,77 | | | | S4.5 60,0 | 50,8 | 0,86 | | | | S5 67,1 | 56,6 | 1,03 | | | | S5.5 72,8 | 62,7 | 1,14 | | | | S6 82,0 | 68,9 | 1,76 | | | | S6.5 86,9 | 76,2 | 1,50 | | | | S7 91,3 | 81,3 | 1,97 | | | | S7.5 101,0 | 90,2 | 2,05 | | | | S8 103,0 | 99,0 | 2,61 | | | | | | | | | | | | | | | | | | | | | | R20 35,8 | 28,8 | 0,85 | | | | R30 45,5 | 36,1 | 1,25 | | | | R40 49,1 | 38,7 | 1,45 | | | | R5 60,0 | 47,0 | 1,99 | | | | R6 72,0 | 60,0 | 3,22 | | | | R7 85,0 | 72,0 | 3,85 | | | | R8* 107,0 | 93,0 | 5,17 | | | | R9* 119,0 | 105,0 | 7,20 | | | | * Onlyonegrooveforluff | | | | | | | | | | | | | | | | | | | | | | | | | From S3, available as double groove profile on request. | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
