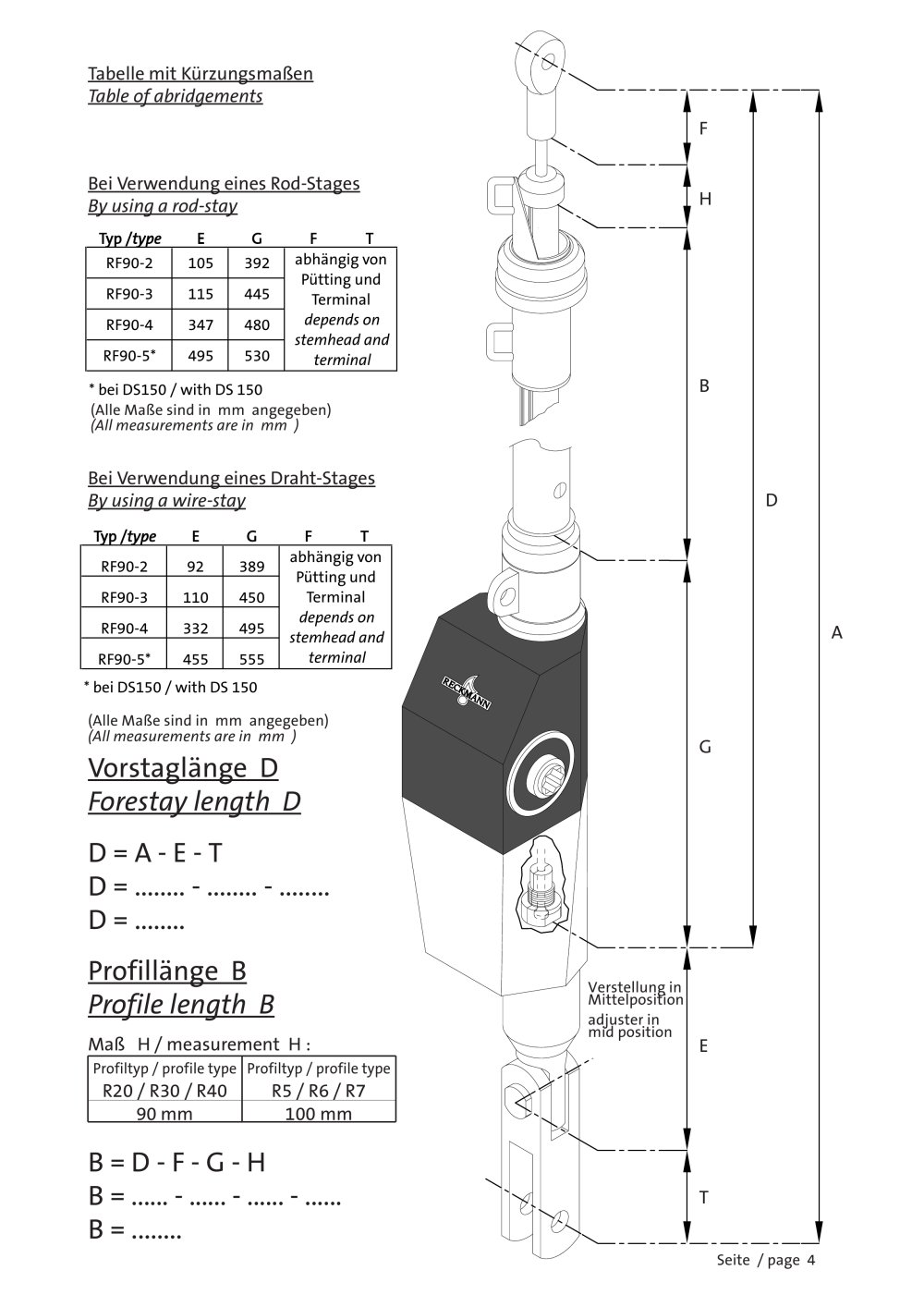

| | | Tabelle mit Kürzungsmaßen Table of abridgements | | |
| | | |
| | | Bei Verwendung eines Rod-Stages By using a rod-stay | | |
| | | |
| | | | | | | | | | | RF90-2 | 105 | 392 | | | | RF90-3 | 115 | 445 | | | | RF90-4 | 347 | 480 | | | | RF90-5* | 495 | 530 | | | | | | | | | | |
| | | abhängig von Pütting und Terminal depends on stemhead and terminal | | |
| | | |
| | | |
| | | B | | |
| | | * bei DS150 / with DS 150 (Alle Maße sind in mm angegeben) (All measurements are in mm ) | | |
| | | |
| | | |
| | | Bei Verwendung eines Draht-Stages By using a wire-stay | | |
| | | |
| | | F | | |
| | | |
| | | | | | | | | | | RF90-2 | 92 | 389 | | | | RF90-3 | 110 | 450 | | | | RF90-4 | 332 | 495 | | | | RF90-5* | 455 | 555 | | | | | | | | | | |
| | | abhängig von Pütting und Terminal depends on stemhead and terminal | | |
| | | |
| | | |
| | | * bei DS150 / with DS 150 (Alle Maße sind in mm angegeben) (All measurements are in mm ) Vorstaglänge D Forestay length D | | |
| | | G | | |
| | | |
| | | |
| | | D = A - E - T D =........- ... D =........ | | |
| | | |
| | | Profillänge B Profile length B | | |
| | | Verstellung in Mittelposition adjuster in mid position | | |
| | | |
| | | |
| | | | | | | | | | Profiltyp / profile type R20 / R30 / R40 | Profiltyp / profile type R5 / R6 / R7 | | | | 90 mm | 100 mm | | | | | | | | | |
| | | |
| | | B = D - F - G - H B =......-......- .... B =........ | | |
| | | |
| | | Seite / page 4 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
