ia@MiiliE8aiM

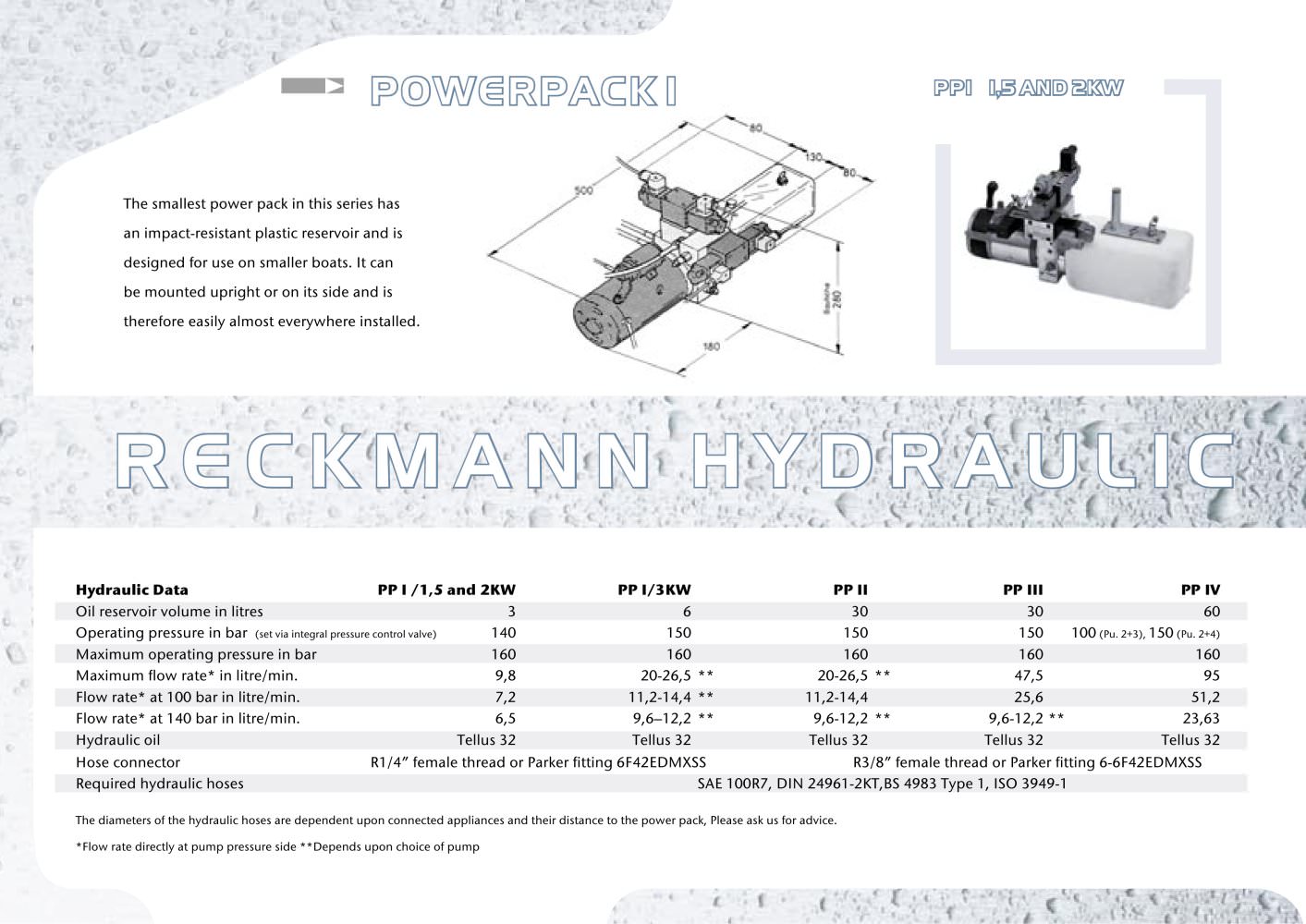

The smallest power pack in this series has an impact-resistant plastic reservoirand is designed for use on smaller boats. It can be mounted upright or on its side and is therefore easily almost everywhere installed.
Hydraulic Data PP I /1,5 and 2KW
Oilreservoirvolumeinlitres 3
Operating pressure in bar (setvia integral pressure control valve) 140
Maximum operating pressure in bar 160
Maximum flow rate* in litre/min. 9,8
Flow rate* at 100 bar in litre/min. 7,2
Flow rate* at 140 bar in litre/min. 6,5
Hydraulicoil Tellus32
PP I/3KW
6
150 160
20-26,5 ** 11,2-14,4 ** 9,6-12,2 ** Tellus32
PP IV
60
100(Pu.2+3), 150(Pu.2+4)
160 95 51,2 23,63 Tellus32
PP II 30
150 160
20-26,5 ** 11,2-14,4
9,6-12,2 ** Tellus32
PP III 30
150 160 47,5 25,6 9,6-12,2 ** Tellus32
R1/4" female thread or Parkerfitting 6F42EDMXSS
R3/8" female thread or Parkerfitting 6-6F42EDMXSS
Hose connector Required hydraulichoses
SAE 100R7, DIN 24961-2KT,BS 4983Type 1, IS0 3949-1
The diameters of the hydraulic hoses are dependentupon connected appliances and their distance to the power pack, Please ask us foradvice. *Flow rate directly at pump pressure side **Depends upon choice of pump
