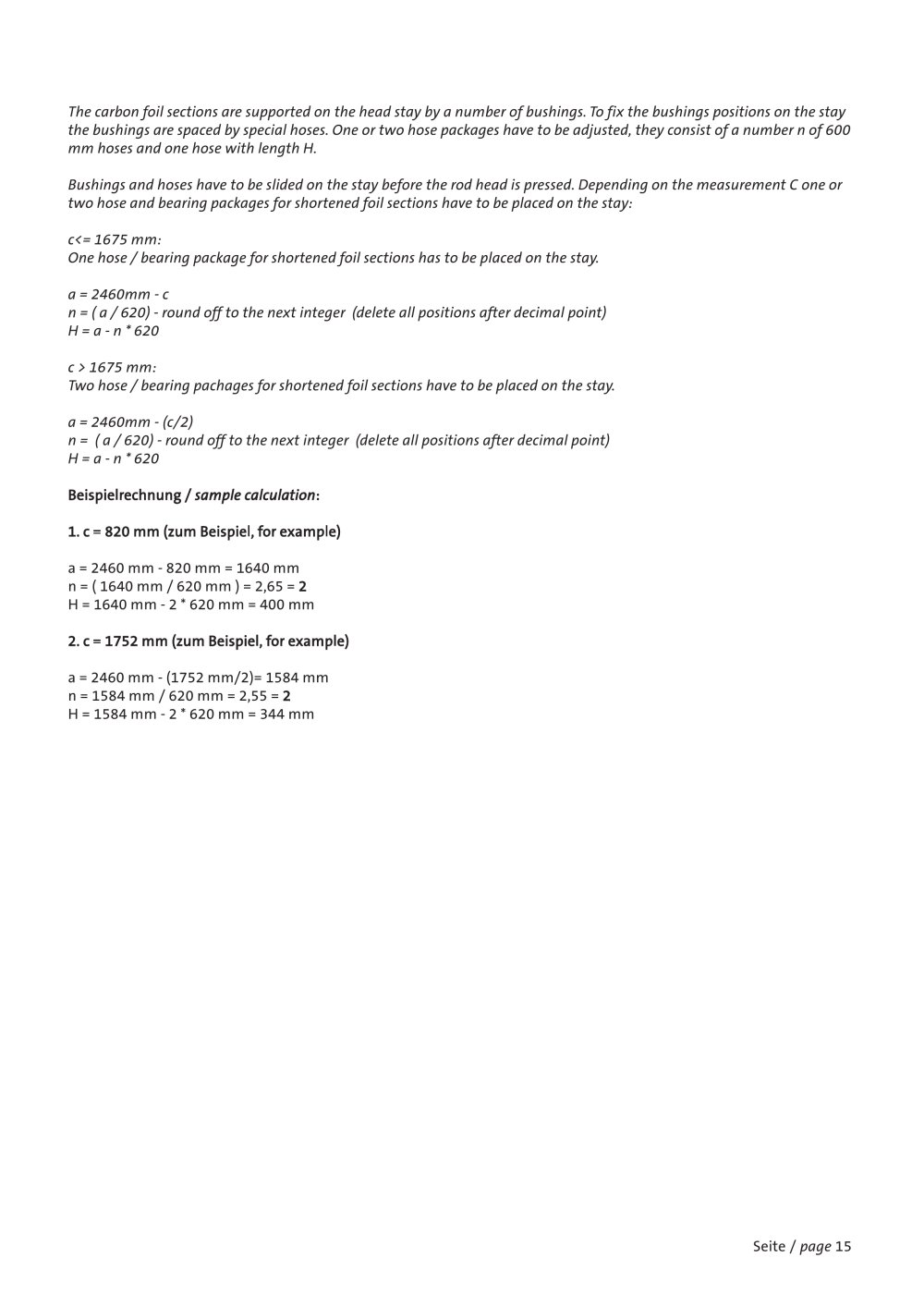

The carbon foil sections are supported on the head stay by a number of bushings. To fix the bushings positions on the staythe bushings are spaced by special hoses. One or two hose packages haveto be adjusted, they consist of a number n of 600 mm hoses and one hose with length H. Bushings and hoses haveto be slided on the stay beforethe rod head is pressed. Depending on the measurement C one ortwo hose and bearing packages for shortened foil sections haveto be placed on the stay:c<= 1675 mm:One hose / bearing package for shortened foil sections has to be placed on the stay.a = 2460mm - cn = ( a / 620) - round off to the next integer (delete all positions after decimal point) H = a - n * 620c > 1675 mm:Two hose / bearing pachages for shortened foil sections haveto be placed on the stay.a = 2460mm - (c/2)n = ( a / 620) - round off to the next integer (delete all positions after decimal point) H = a - n * 620 Beispielrechnun g g / / sampl e e calculation :1 . . c c = = 82 m m m (zu m m Beispiel , , fo r r example) a = 2460 mm - 820 mm = 1640 mm n = ( 1640 mm / 620 mm ) = 2,65 = 2 2 H = 1640 mm - 2 * 620 mm = 400 mm 2 . . c c = = 175 2 2 m m m (zu m m Beispiel , , fo r r example) a = 2460 mm - (1752 mm/2)= 1584 mm n = 1584 mm / 620 mm = 2,55 =2 2 H = 1584 mm - 2 * 620 mm = 344 mm Seite / page 15
