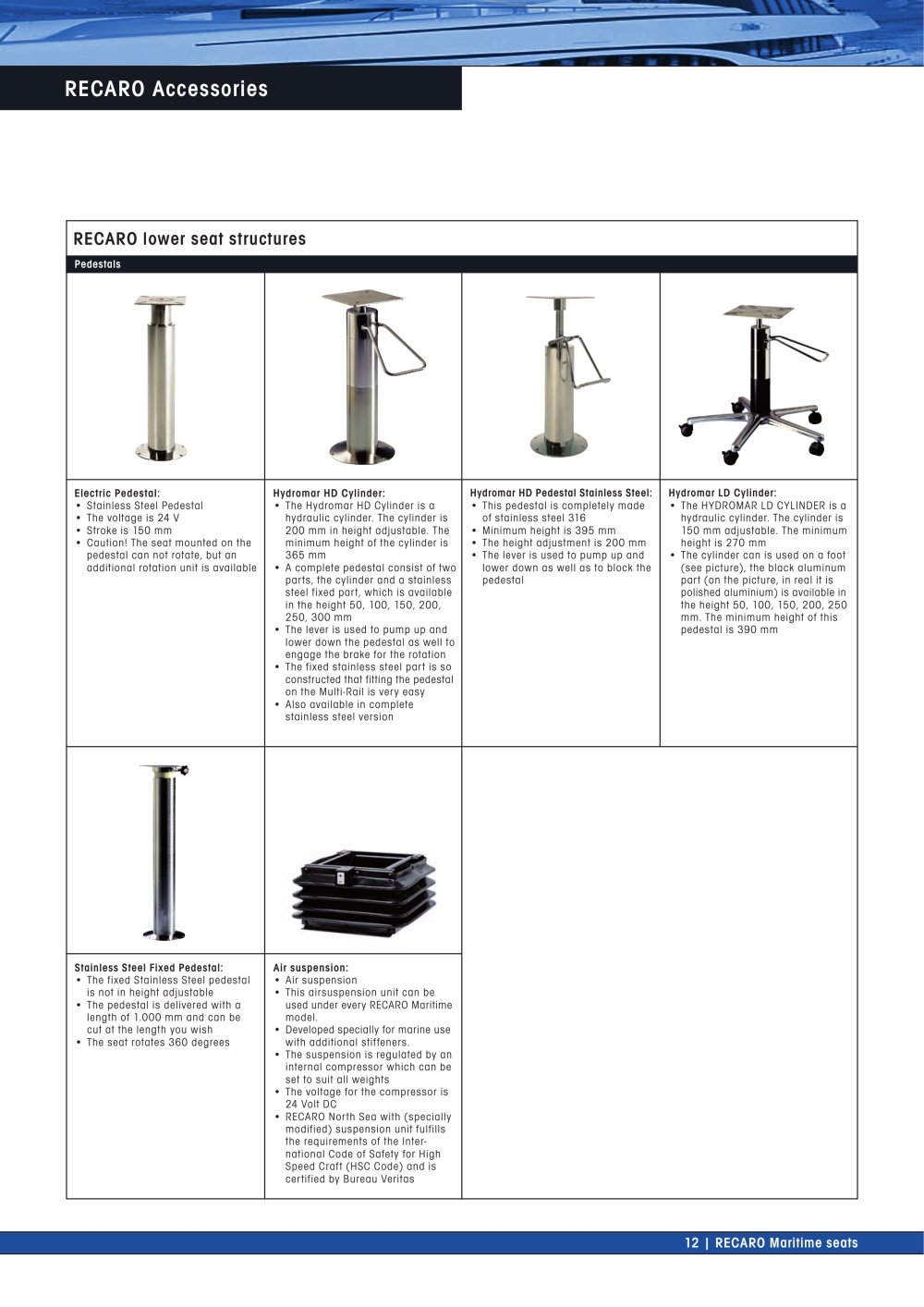

RECARO Accessories

RECARO lower seat structures

Pedestals Electric Boat pedestal: Hydromar HD Cylinder: Hydromar HD Pedestal Stainless Steel: Hydromar LD Cylinder: •Stainless Steel Pedestal•The voltage is 24 V•Stroke is 150 mm•Caution! The seat mounted on thepedestal can not rotate, but an additional rotation unit is available •The Hydromar HD Cylinder is ahydraulic cylinder. The cylinder is200 mm in height adjustable. Theminimum height of the cylinder is365 mm•A complete pedestal consist of twoparts, the cylinder and a stainlesssteel fixed part, which is availablein the height 50, 100, 150, 200,250, 300 mm•The lever is used to pump up andlower down the pedestal as well toengage the brake for the rotation•The fixed stainless steel part is soconstructed that fitting the pedestalon the Multi-Rail is very easy•Also available in complete stainless steel version •This pedestal is completely made of stainless steel 316•Minimum height is 395 mm•The height adjustment is 200 mm•The lever is used to pump up and lower down as well as to block thepedestal •The HYDROMAR LD CYLINDER is ahydraulic cylinder. The cylinder is150 mm adjustable. The minimumheight is 270 mm•The cylinder can is used on a foot (see picture), the black aluminumpart (on the picture, in real it ispolished aluminium) is available inthe height 50, 100, 150, 200, 250mm. The minimum height of thispedestal is 390 mm Stainless Steel Fixed Pedestal: Air suspension: •The fixed Stainless Steel pedestalis not in height adjustable•The pedestal is delivered with alength of 1.000 mm and can becut at the length you wish•The seat rotates 360 degrees •Air suspension•This airsuspension unit can beused under every RECARO Maritimemodel.•Developed specially for marine usewith additional stiffeners.•The suspension is regulated by aninternal compressor which can beset to marine suit all weights•The voltage for the compressor is24 Volt DC•RECARO North Sea with (speciallymodified) suspension unit fulfillsthe requirements of the Inter-national Code of Safety for HighSpeed Craft (HSC Code) and is certified by Bureau Veritas

12 | RECARO Maritime seats
