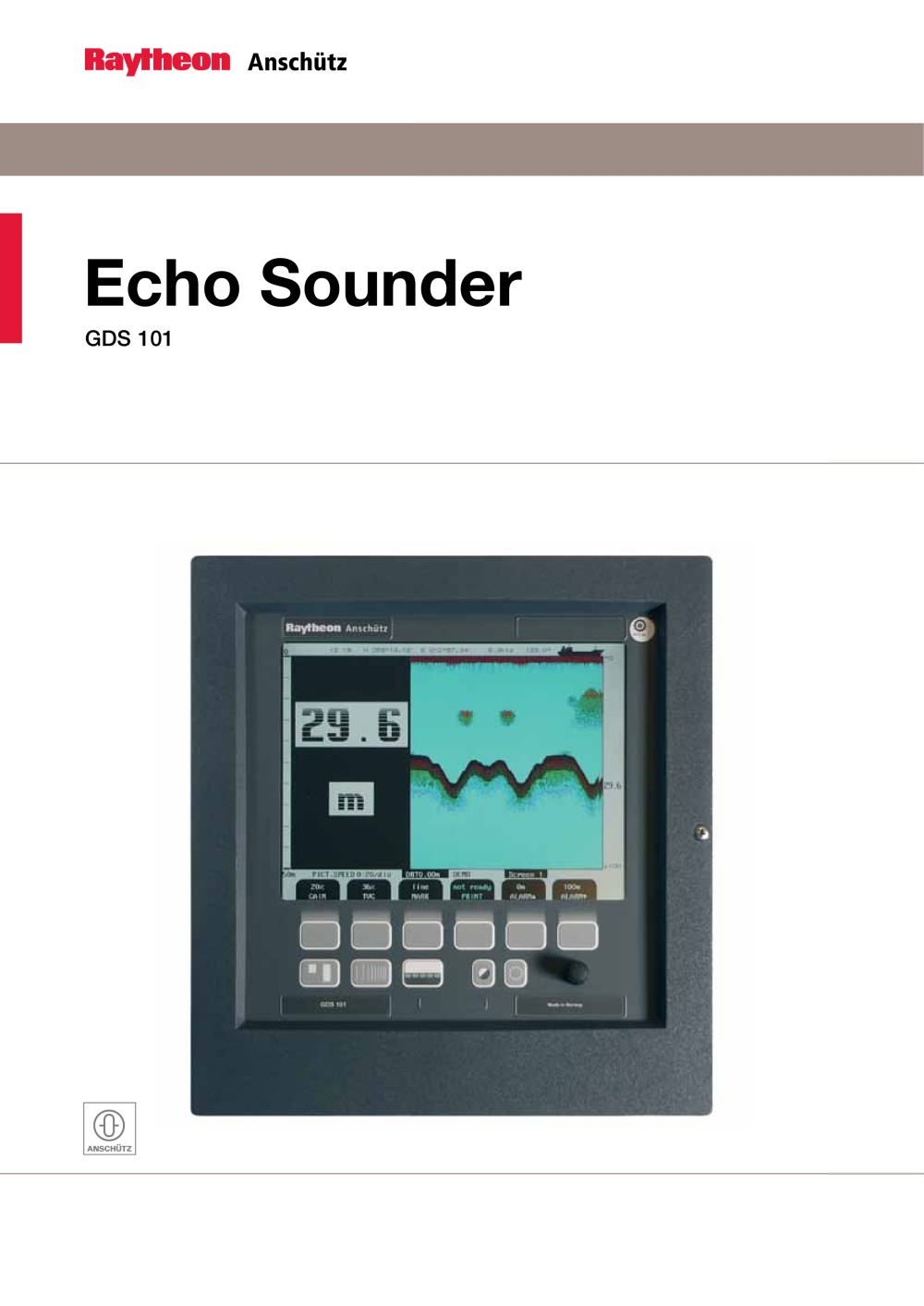

Echo Sounder The Raytheon Anschütz Colour GDS 101 (Graphic Depth Sounder) is a universal echo sounder for vessels of all sizes which re­ uire a navigational echo sounder on­­­­­ q board. The echo sounder is designed for ease of use and incorpo­ ates more fear tures than the most other echo sounders on the market. It has a rugged and robust mechanical design and can be operated on 50kHz or 200kHz (selectable by user). The GDS 101 has a backlit LCD colour display with high resolution dot-matrix screen which indi­ ates all vital data. c Information is presented in graphic and/or numeric format....

external alarm alarm reset optional printer protocol printer 0-10 V/4-20 mA analogue depth information additional VGA output slave display operator unit GDS 101 115/230 V AC and/or 24 V DC optional remote repeaters IEC 61162-1 GNSS navigator IEC 61162-1 speed log IEC 61162-1 speed log 100/200 p/nm remote printer start transducer tank depth indicators

Technical Data 96-125 V AC or 195-253 V AC, and/or 20-32 V DC with automatic switch over Power consumption Transducer frequencies 50 kHz and/or 200 kHz, selectable from key board (other freq. on request) single or dual-frequency as standard 10.4"/150x 200 mm colour graphic (640 x 480) dot-matrix super twist TFT screen Operator unit Power supply Languages English, French, German, Spanish, Russian, Norwegian Ranges adjustable from 0-10 m to 0-1600 m fixed, ranges adjustable or automatic range function Transducer tank Min. depth below transducer approx. 0.5 m (200 kHz) shallow and deep alarm Measuring...
