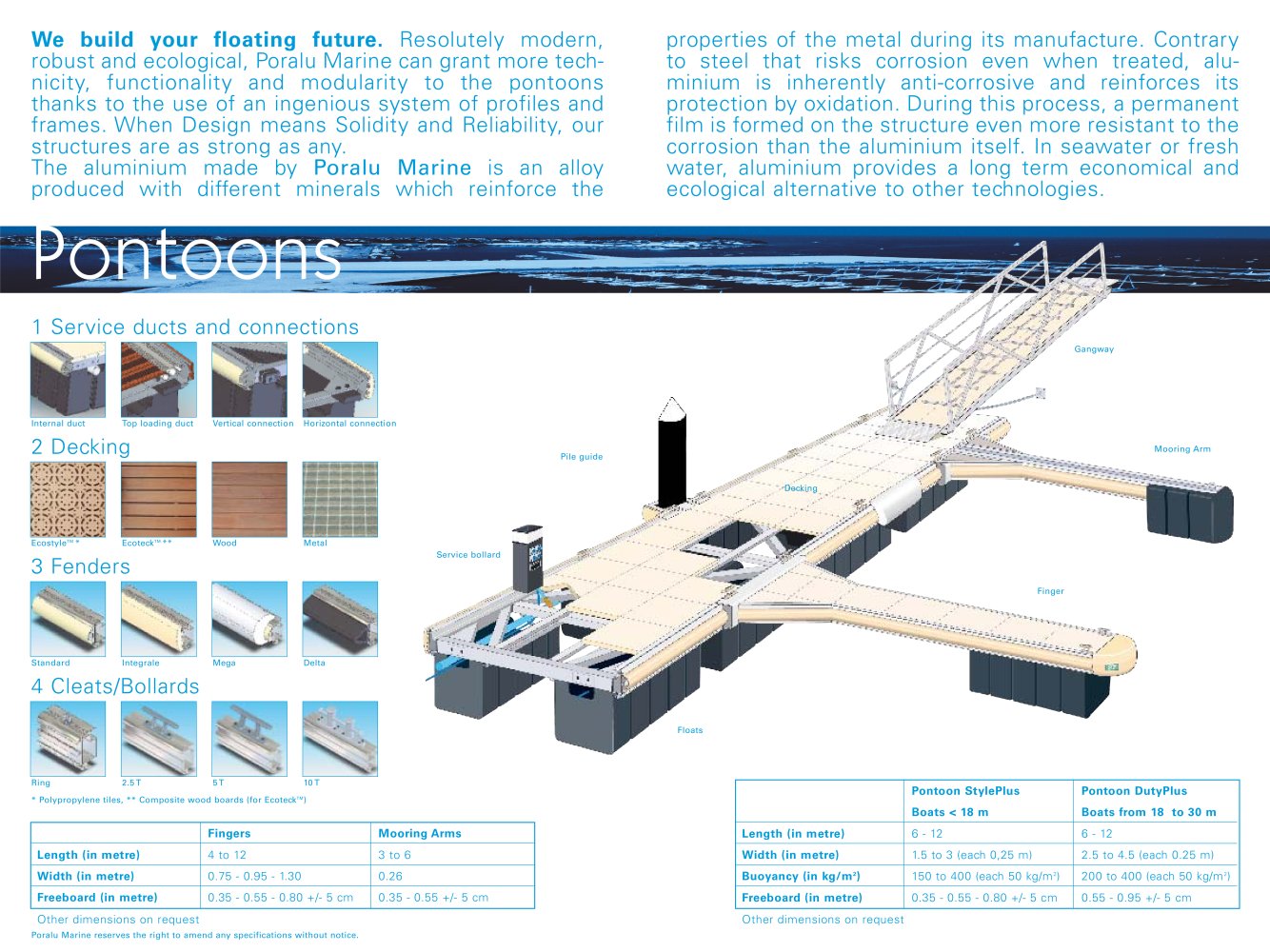

| | | floating future. Resolutely robust and ecological, Poralu Marine can grant more tech-nicily, functionality and modularity to the pontoons thanks to the use of an ingenious system of profiles and frames. When Design means Solidity and Reliability, our structures are as strong as any. The aluminium made by Poralu Marine is an alloy produced with different minerals which reinforce the | | |
| | | I \-/ J*-/ V_/ I L I V_/ O | | metal during its manufacture. contrary
| |
| | | |
| | | to steel that risks corrosion even when treated, aluminium is inherently anti-corrosive and reinforces its protection by oxidation. During this process, a permanent film is formed on the structure even more resistant to the corrosion than the aluminium itself. In seawater or fresh water, aluminium provides a long term economical and ecological alternative to other technologies. | | |
| | | |
| | | | | | | | | | | | Pontoon StylePlus Boats < 18 m | Pontoon DutyPlus Boats from 18 to 30 m | | | | Length (in metre) | 6 - 12 | 6 - 12 | | | | Width (in metre) | 1.5 to 3 (each 0,25 m) | 2.5 to 4.5 (each 0.25 m) | | | | Buoyancy (in kg/m2) | 150 to 400 (each 50 kg/m2) | 200 to 400 (each 50 kg/m2) | | | | Freeboard (in metre) | 0.35 - 0.55 - 0.80 +/- 5 cm | 0.55 - 0.95 +/- 5 cm | | | | | | | | | | |
| | | Ring 2.5 T 5 T 10 T * Polypropylene tiles, ** Composite wood boards (for EcoteckTM) | | |
| | | |
| | | | | | | | | | | | Fingers | Mooring Arms | | | | Length (in metre) | 4 to 12 | 3 to 6 | | | | Width (in metre) | 0.75 - 0.95 - 1.30 | 0.26 | | | | Freeboard (in metre) | 0.35 - 0.55 - 0.80 +/- 5 cm | 0.35 - 0.55 +/- 5 cm | | | | | | | | | | |
| | | |
| | | Other dimensions on request Poralu Marine reserves the right to amend any specifications without notice. | | Other dimensions on request | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | |
