ISAF & ISO 9650-1

sivity : Plastimo exclu ber double cham the

1.49 m2

1.03 m

4-man Transocean

2.23 m2

1.04 m

6-man Transocean

2.98 m2

1.05 m

12-man ISAF Transocean

3.88 m2

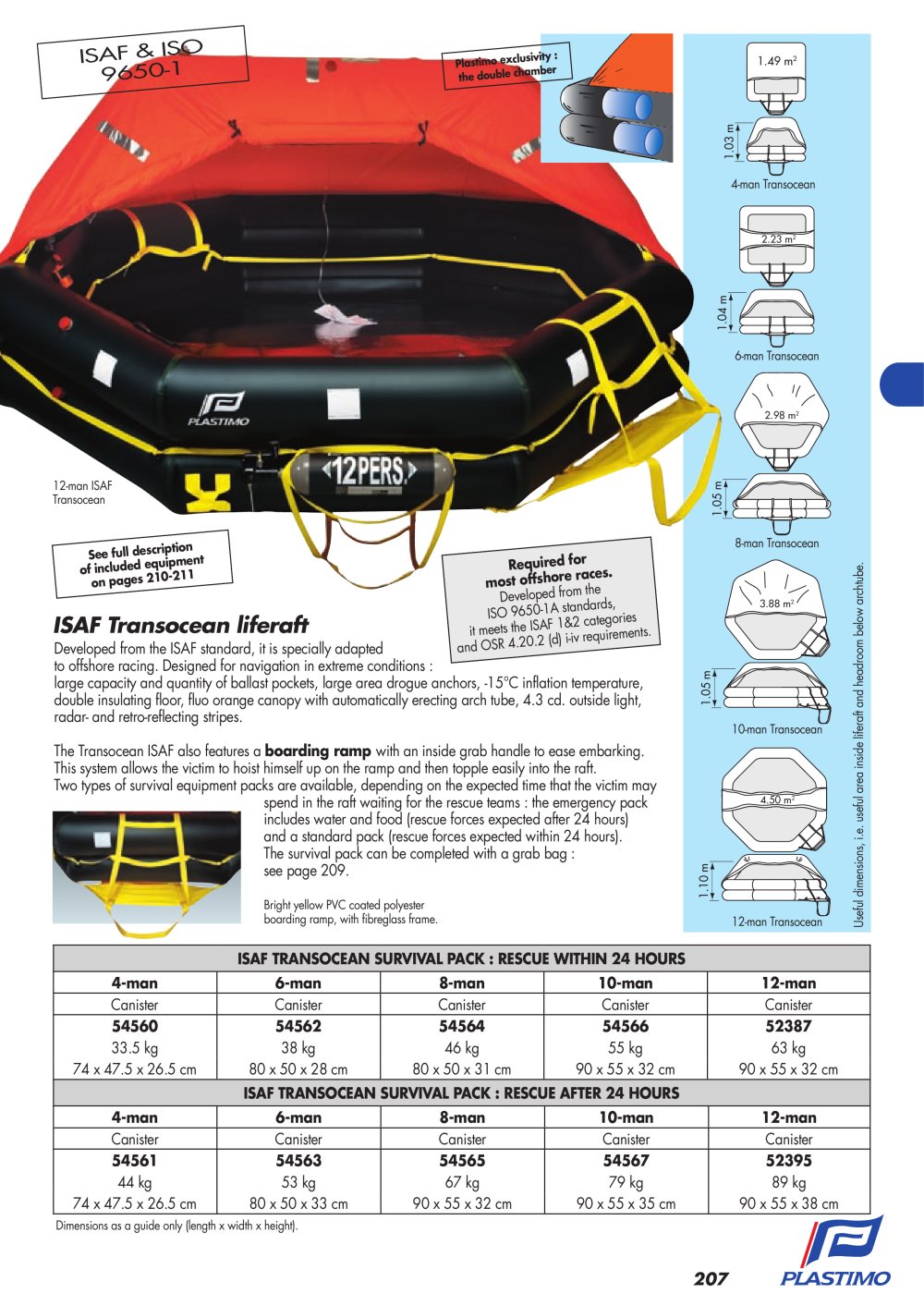

ISAF Transocean liferaft

Developed from the ISAF standard, it is specially adapted to offshore racing. Designed for navigation in extreme conditions : large capacity and quantity of ballast pockets, large area drogue anchors, -15°C inflation temperature, double insulating floor, fluo orange canopy with automatically erecting arch tube, 4.3 cd. outside light, radar- and retro-reflecting stripes.

10-man Transocean

Bright yellow PVC coated polyester boarding ramp, with fibreglass frame.

1.10 m

The Transocean ISAF also features a boarding ramp with an inside grab handle to ease embarking. This system allows the victim to hoist himself up on the ramp and then topple easily into the raft. Two types of survival equipment packs are available, depending on the expected time that the victim may spend in the raft waiting for the rescue teams : the emergency pack includes water and food (rescue forces expected after 24 hours) and a standard pack (rescue forces expected within 24 hours). The survival pack can be completed with a grab bag : see page 209.

4.50 m2

12-man Transocean

ISAF TRANSOCEAN SURVIVAL PACK : RESCUE WITHIN 24 HOURS 4-man Canister 54560 33.5 kg 74 x 47.5 x 26.5 cm 4-man Canister 54561 44 kg 74 x 47.5 x 26.5 cm 6-man Canister 54562 38 kg 80 x 50 x 28 cm 6-man Canister 54563 53 kg 80 x 50 x 33 cm 8-man Canister 54564 46 kg 80 x 50 x 31 cm 8-man Canister 54565 67 kg 90 x 55 x 32 cm 10-man Canister 54566 55 kg 90 x 55 x 32 cm 10-man Canister 54567 79 kg 90 x 55 x 35 cm 12-man Canister 52387 63 kg 90 x 55 x 32 cm 12-man Canister 52395 89 kg 90 x 55 x 38 cm

ISAF TRANSOCEAN SURVIVAL PACK : RESCUE AFTER 24 HOURS

Dimensions as a guide only (length x width x height).

207

Useful dimensions, i.e. useful area inside liferaft and headroom below archtube.

tion See full descrip ent d equipm of include 211 on pages 210-

8-man Transocean

Required for races. most offshore the veloped from De ndards, ISO 9650-1A sta tegories 1&2 ca it meets the ISAF ts. (d) i-iv requiremen and OSR 4.20.2
1.05 m
