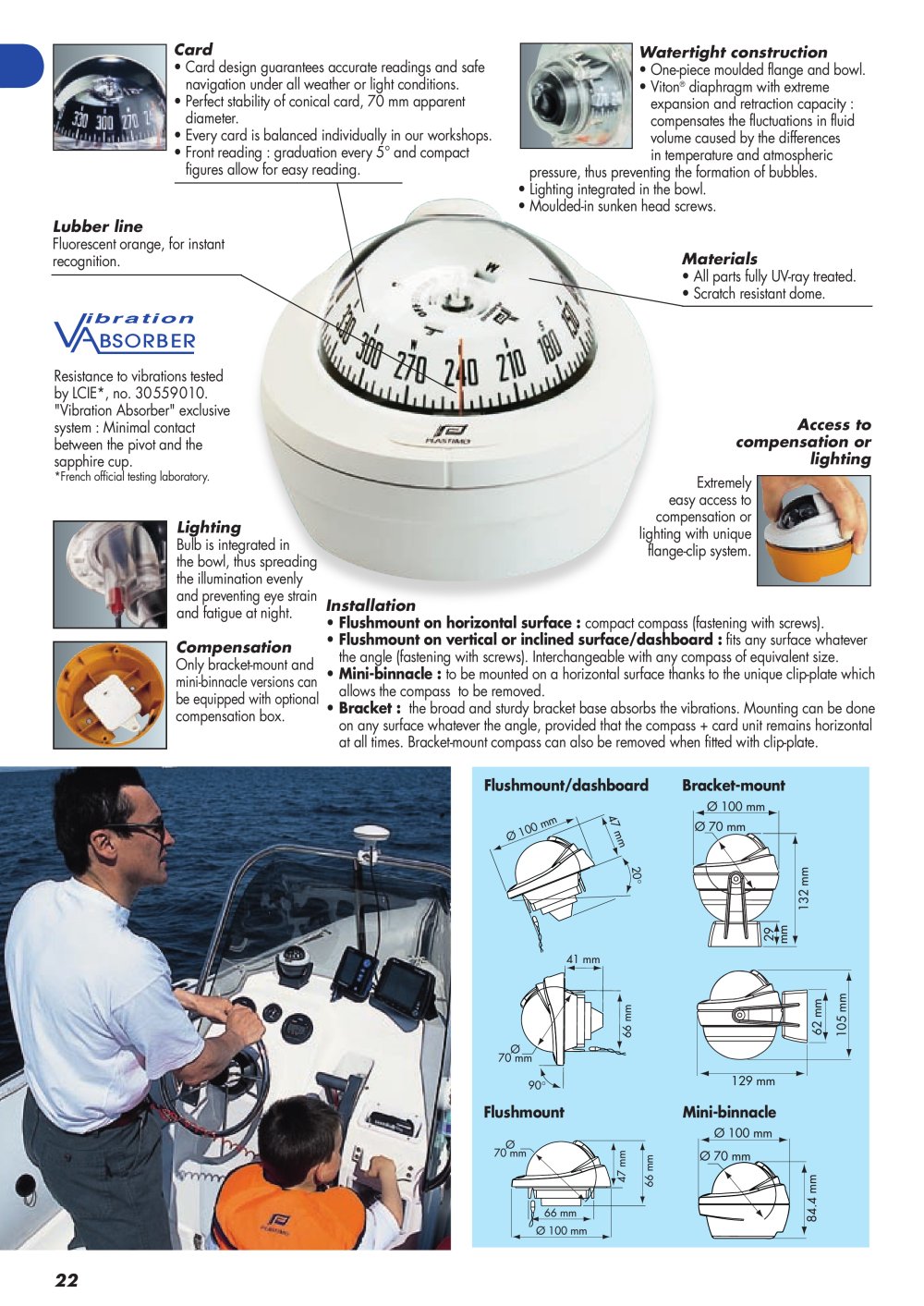

Card · Card design guarantees accurate readings and safe navigation under all weather or light conditions. · Perfect stability of conical card, 70 mm apparent diameter. · Every card is balanced individually in our workshops. · Front reading : graduation every 5° and compact figures allow for easy reading.

Watertight construction · One-piece moulded flange and bowl. · Viton® diaphragm with extreme expansion and retraction capacity : compensates the fluctuations in fluid volume caused by the differences in temperature and atmospheric pressure, thus preventing the formation of bubbles. · Lighting integrated in the bowl. · Moulded-in sunken head screws. Materials · All parts fully UV-ray treated. · Scratch resistant dome.

Lubber line Fluorescent orange, for instant recognition.

*French official testing laboratory.

Resistance to vibrations tested by LCIE*, no. 30 559 010. "Vibration Absorber" exclusive system : Minimal contact between the pivot and the sapphire cup.

Access to compensation or lighting Extremely easy access to compensation or lighting with unique flange-clip system.

Lighting Bulb is integrated in the bowl, thus spreading the illumination evenly and preventing eye strain Installation and fatigue at night. · Flushmount on horizontal surface : compact compass (fastening with screws). · Flushmount on vertical or inclined surface/dashboard : fits any surface whatever Compensation the angle (fastening with screws). Interchangeable with any compass of equivalent size. Only bracket-mount and · Mini-binnacle : to be mounted on a horizontal surface thanks to the unique clip-plate which mini-binnacle versions can be equipped with optional allows the compass to be removed. · Bracket : the broad and sturdy bracket base absorbs the vibrations. Mounting can be done compensation box. on any surface whatever the angle, provided that the compass + card unit remains horizontal at all times. Bracket-mount compass can also be removed when fitted with clip-plate. Flushmount/dashboard
Ø1 0 m 0m
47 mm
20

Bracket-mount
Ø 100 mm Ø 70 mm

41 mm

29 mm

132 mm
129 mm

Ø 70 mm 90

Flushmount
47 mm 66 mm Ø 70 mm

66 mm

Mini-binnacle
Ø 100 mm Ø 70 mm
84.4 mm

66 mm Ø 100 mm

22

105 mm

62 mm
