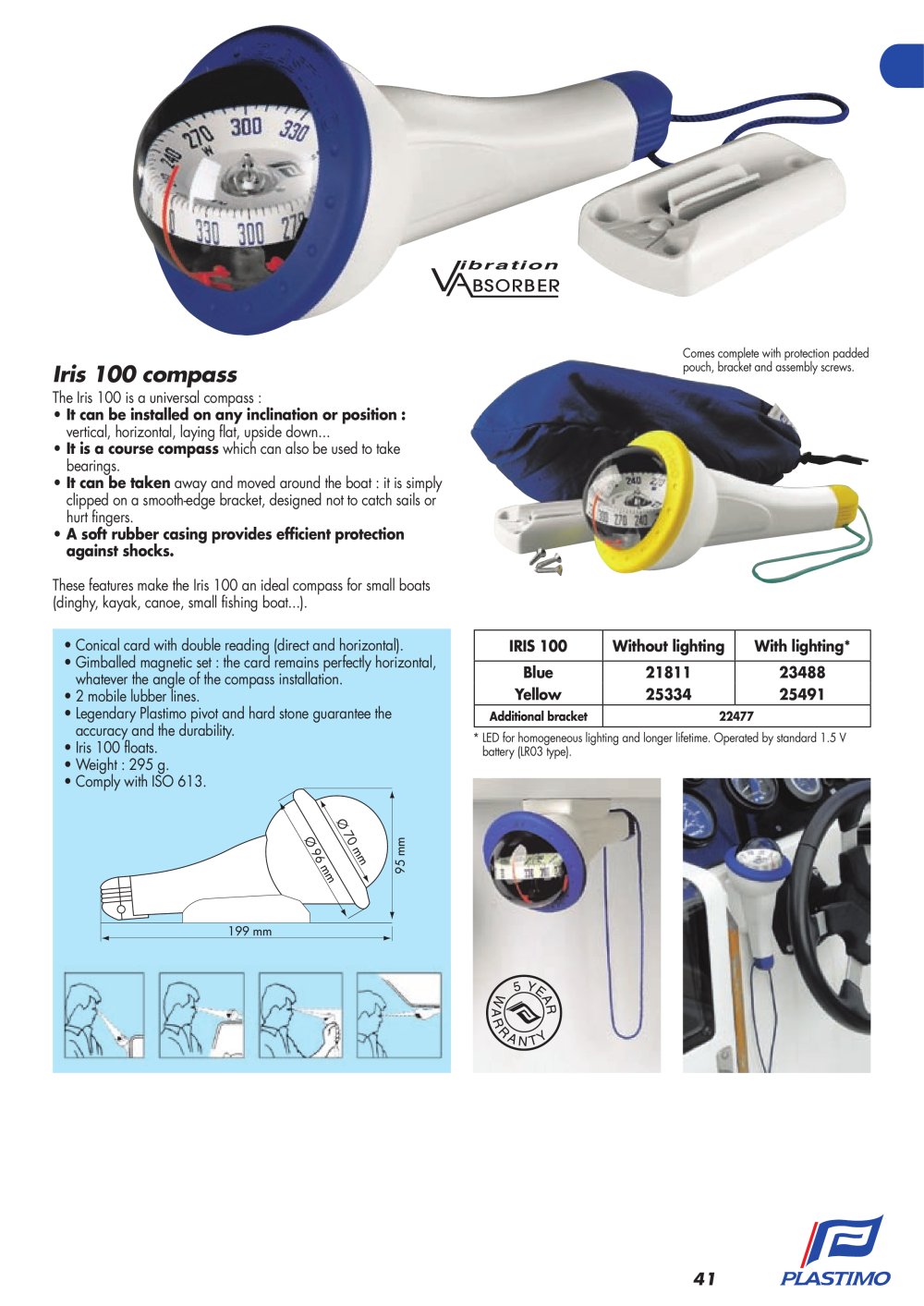

Iris 100 compass
The Iris 100 is a universal compass : · It can be installed on any inclination or position : vertical, horizontal, laying flat, upside down... · It is a course compass which can also be used to take bearings. · It can be taken away and moved around the boat : it is simply clipped on a smooth-edge bracket, designed not to catch sails or hurt fingers. · A soft rubber casing provides efficient protection against shocks. These features make the Iris 100 an ideal compass for small boats (boat dinghy, boat kayak, boat canoe, small fishing boat...). · Conical card with double reading (direct and horizontal). · Gimballed magnetic set : the card remains perfectly horizontal, whatever the angle of the compass installation. · 2 mobile lubber lines. · Legendary Plastimo pivot and hard stone guarantee the accuracy and the durability. · Iris 100 floats. · Weight : 295 g. · Comply with ISO 613.
Ø

Comes complete with protection padded pouch, bracket and assembly screws.

IRIS 100 Blue Yellow
Additional bracket

Without lighting 21811 25334
22477

With lighting* 23488 25491

* LED for homogeneous lighting and longer lifetime. Operated by standard 1.5 V battery (LR03 type).

199 mm

95 mm

mm 70

Ø mm 96

41
