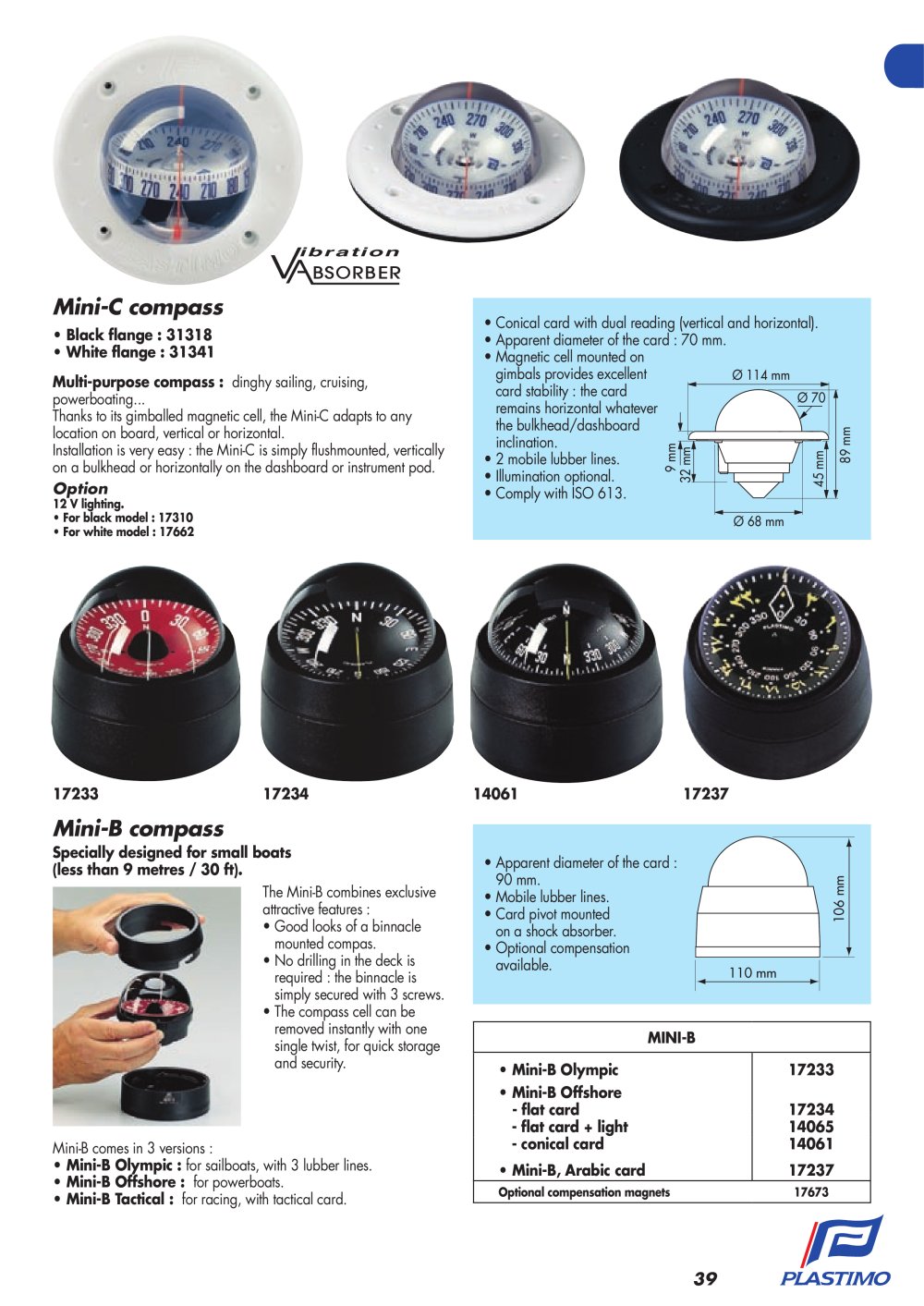

Mini-C compass
· Black flange : 31318 · White flange : 31341 Multi-purpose compass : marine dinghy sailing, cruising, powerboating... Thanks to its gimballed magnetic cell, the Mini-C adapts to any location on board, vertical or horizontal. Installation is very easy : the Mini-C is simply flushmounted, vertically on a bulkhead or horizontally on the dashboard or instrument pod. Option
12 V lighting. · For black model : 17310 · For white model : 17662

· Conical card with dual reading (vertical and horizontal). · Apparent diameter of the card : 70 mm. · Magnetic cell mounted on gimbals provides excellent Ø 114 mm card stability : the card Ø 70 remains horizontal whatever the bulkhead/dashboard inclination. · 2 mobile lubber lines. · Illumination optional. · Comply with ISO 613.
9 mm 32 mm Ø 68 mm

17233

17234

14061

17237

Mini-B compass
Specially designed for small boats (less than 9 metres / 30 ft). The Mini-B combines exclusive attractive features : · Good looks of a binnacle mounted compas. · No drilling in the deck is required : the binnacle is simply secured with 3 screws. · The compass cell can be removed instantly with one single twist, for quick storage and security. · Apparent diameter of the card : 90 mm. · Mobile lubber lines. · Card pivot mounted on a shock absorber. · Optional compensation available.
106 mm 110 mm

MINI-B · Mini-B Olympic · Mini-B Offshore - flat card - flat card + light - conical card · Mini-B, Arabic card
Optional compensation magnets

17233 17234 14065 14061 17237
17673

Mini-B comes in 3 versions : · Mini-B Olympic : for sailboats, with 3 lubber lines. · Mini-B Offshore : for powerboats. · Mini-B Tactical : for racing, with tactical card.

39

45 mm

89 mm
