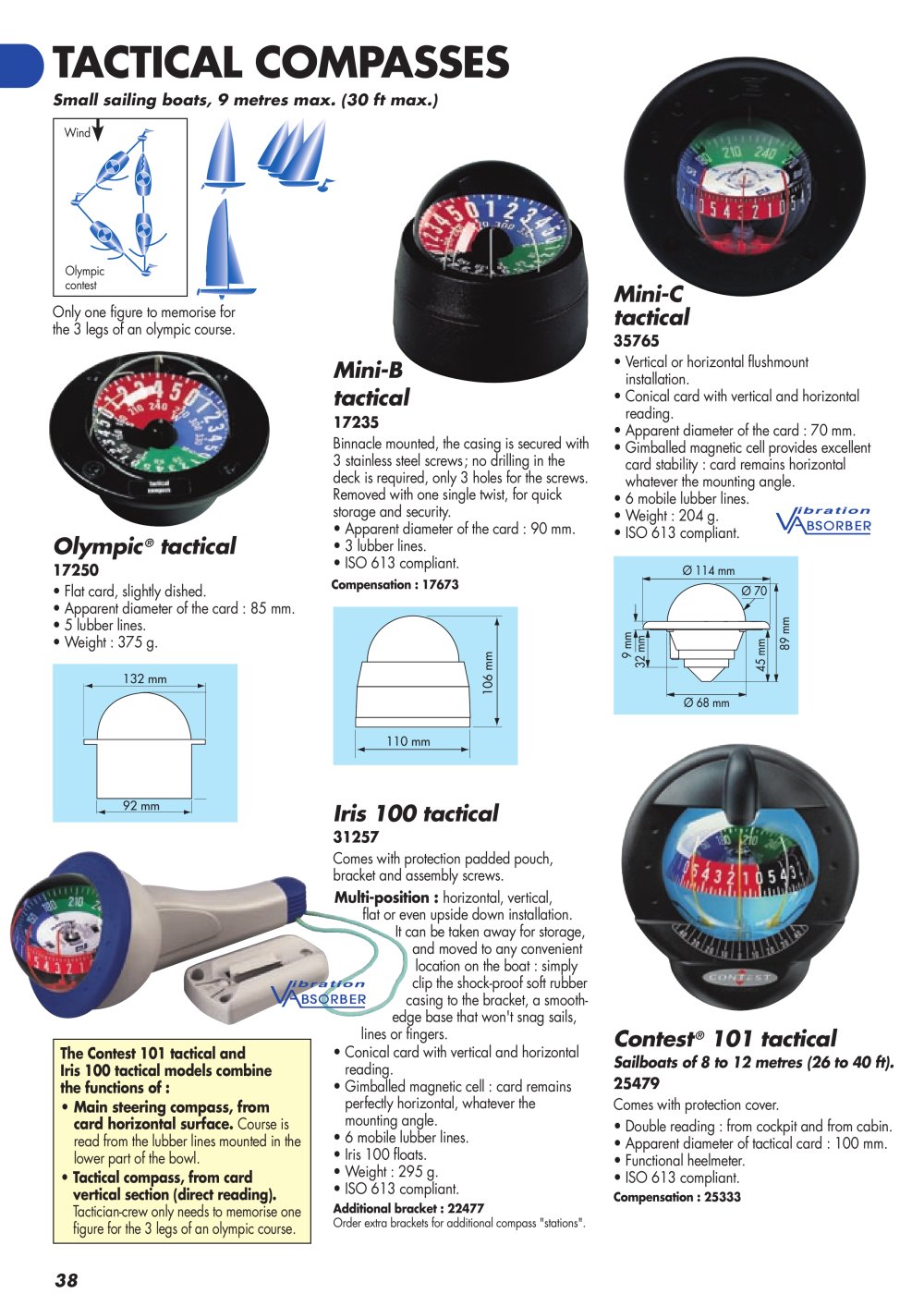

TACTICAL COMPASSES
Small sailing boats, 9 metres max. (30 ft max.)
Wind

Olympic contest

Only one figure to memorise for the 3 legs of an olympic course.

Mini-C tactical Mini-B tactical
17235 Binnacle mounted, the casing is secured with 3 stainless steel screws ; no drilling in the deck is required, only 3 holes for the screws. Removed with one single twist, for quick storage and security. · Apparent diameter of the card : 90 mm. · 3 lubber lines. · ISO 613 compliant.
Compensation : 17673

Olympic ® tactical
17250 · Flat card, slightly dished. · Apparent diameter of the card : 85 mm. · 5 lubber lines. · Weight : 375 g.
132 mm

35765 · Vertical or horizontal flushmount installation. · Conical card with vertical and horizontal reading. · Apparent diameter of the card : 70 mm. · Gimballed magnetic cell provides excellent card stability : card remains horizontal whatever the mounting angle. · 6 mobile lubber lines. · Weight : 204 g. · ISO 613 compliant.
Ø 114 mm Ø 70 89 mm

9 mm 32 mm

106 mm

Ø 68 mm 110 mm

92 mm

Iris 100 tactical
31257 Comes with protection padded pouch, bracket and assembly screws. Multi-position : horizontal, vertical, flat or even upside down installation. It can be taken away for storage, and moved to any convenient location on the boat : simply clip the shock-proof soft rubber casing to the bracket, a smoothedge base that won't snag sails, lines or fingers. · Conical card with vertical and horizontal reading. · Gimballed magnetic cell : card remains perfectly horizontal, whatever the mounting angle. · 6 mobile lubber lines. · Iris 100 floats. · Weight : 295 g. · ISO 613 compliant.
Additional bracket : 22477 Order extra brackets for additional compass "stations".

The Contest 101 tactical and Iris 100 tactical models combine the functions of : · Main steering compass, from card horizontal surface. Course is read from the lubber lines mounted in the lower part of the bowl. · Tactical compass, from card vertical section (direct reading). Tactician-crew only needs to memorise one figure for the 3 legs of an olympic course.

Contest ® 101 tactical
Sailboats of 8 to 12 metres (26 to 40 ft). 25479 Comes with protection cover. · Double reading : from cockpit and from cabin. · Apparent diameter of tactical card : 100 mm. · Functional heelmeter. · ISO 613 compliant.
Compensation : 25333

38

45 mm
