B.Y. Leglatin ©

Stylish design : articulated protective hood that slides shut, opening and closing click-stop. "Tunnel rods" provide easy access to compensators through the binnacle.

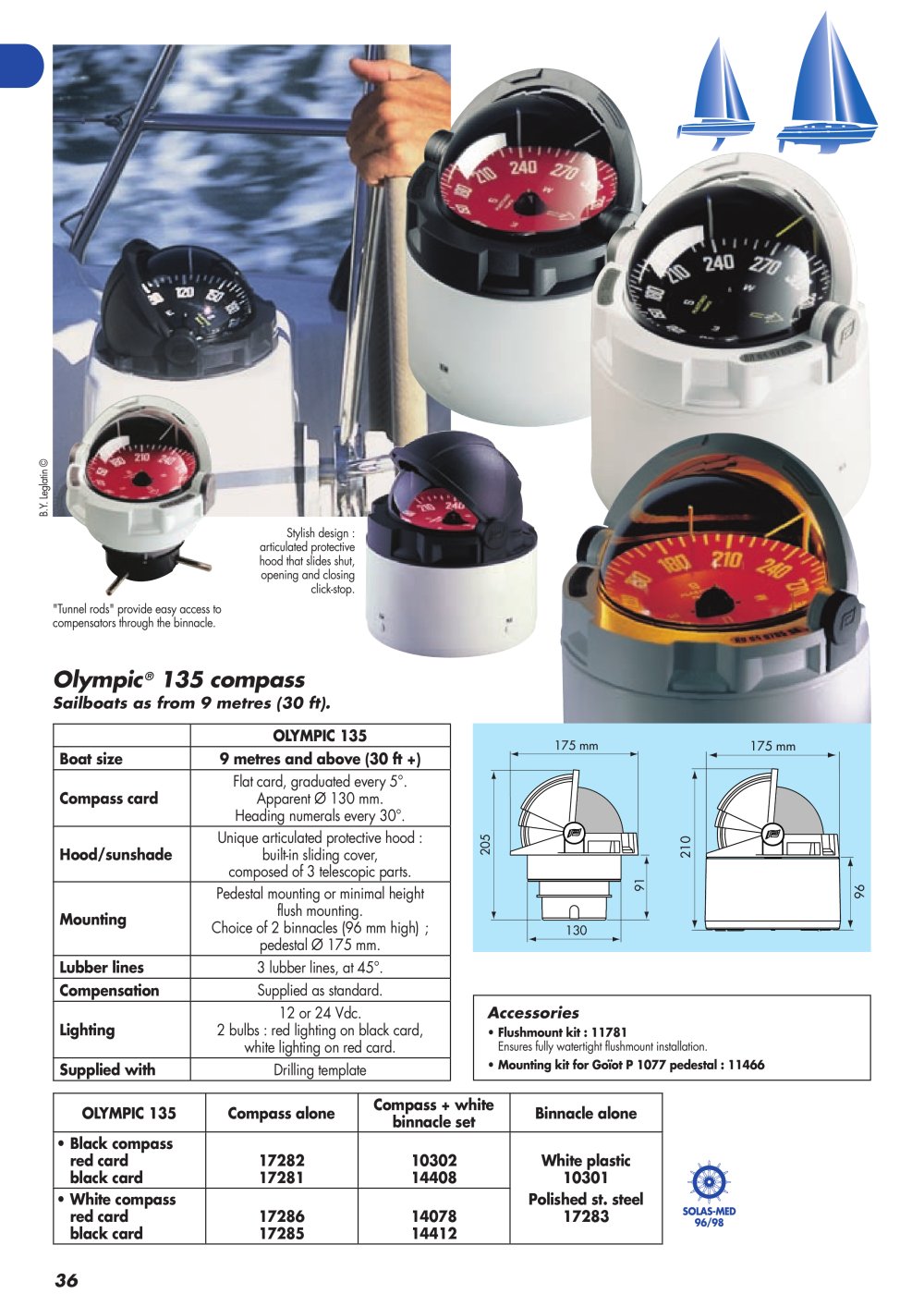

Olympic ® 135 compass
Sailboats as from 9 metres (30 ft). Boat size Compass card OLYMPIC 135 9 metres and above (30 ft +) Flat card, graduated every 5°. Apparent Ø 130 mm. Heading numerals every 30°. Unique articulated protective hood : built-in sliding cover, composed of 3 telescopic parts. Pedestal mounting or minimal height flush mounting. Choice of 2 binnacles (96 mm high) ; pedestal Ø 175 mm. 3 lubber lines, at 45°. Supplied as standard. 12 or 24 Vdc. 2 bulbs : red lighting on black card, white lighting on red card. Drilling template Compass alone 17282 17281 17286 17285
175 mm

175 mm

205

Hood/sunshade

91

210

Mounting Lubber lines Compensation Lighting Supplied with OLYMPIC 135 · Black compass red card black card · White compass red card black card

130

Accessories
· Flushmount kit : 11781 Ensures fully watertight flushmount installation. · Mounting kit for Goïot P 1077 pedestal : 11466

Compass + white binnacle set 10302 14408 14078 14412

Binnacle alone White plastic 10301 Polished st. steel 17283

36

96
