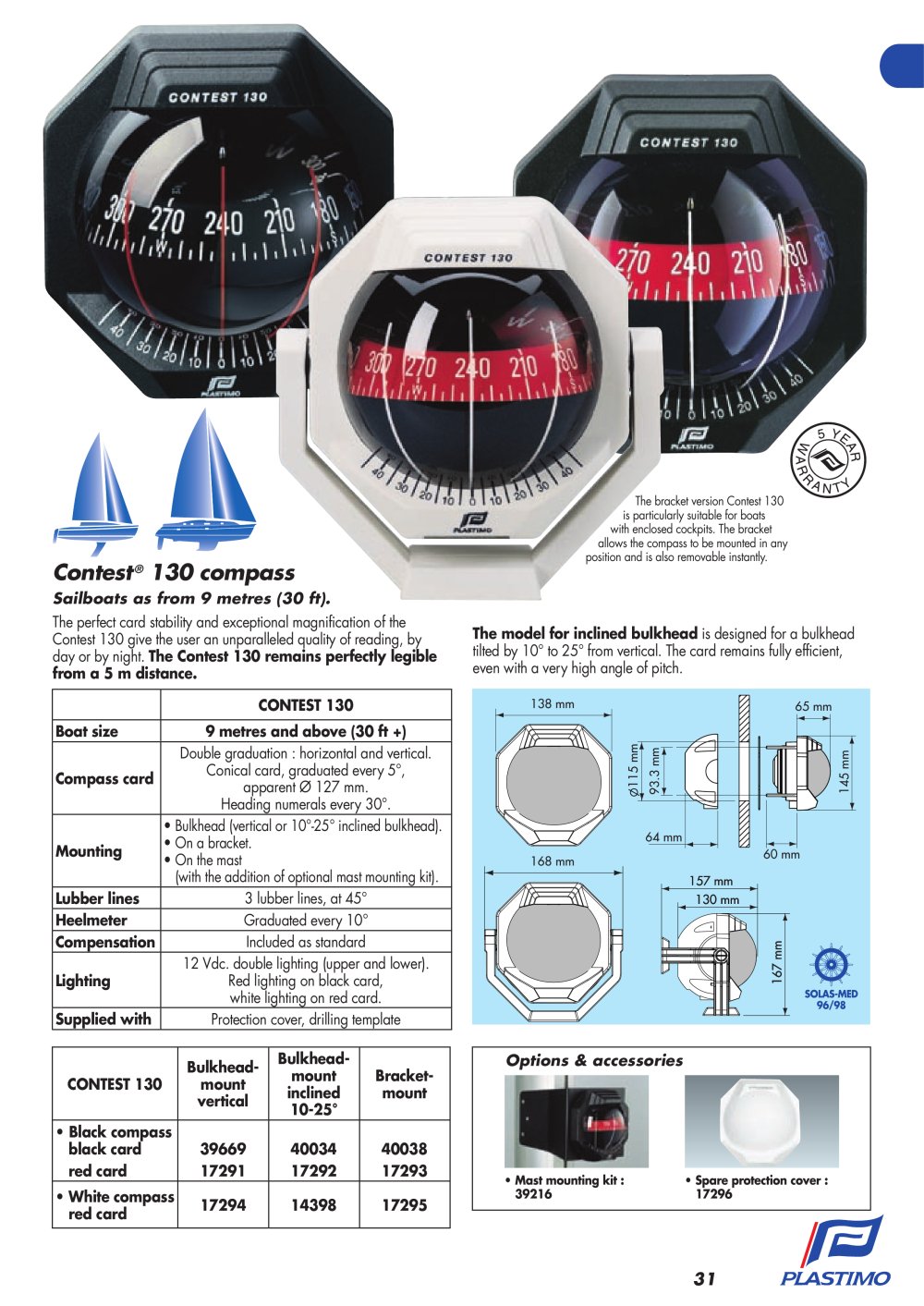

Contest ® 130 compass
Sailboats as from 9 metres (30 ft). The perfect card stability and exceptional magnification of the Contest 130 give the user an unparalleled quality of reading, by day or by night. The Contest 130 remains perfectly legible from a 5 m distance. CONTEST 130 9 metres and above (30 ft +) Double graduation : horizontal and vertical. Conical card, graduated every 5°, Compass card apparent Ø 127 mm. Heading numerals every 30°. · Bulkhead (vertical or 10°-25° inclined bulkhead). · On a bracket. Mounting · On the mast (with the addition of optional mast mounting kit). 3 lubber lines, at 45° Lubber lines Graduated every 10° Heelmeter Included as standard Compensation 12 Vdc. double lighting (upper and lower). Red lighting on black card, Lighting white lighting on red card. Protection cover, drilling template Supplied with Bulkheadmount vertical 39669 17291 17294 Bulkheadmount inclined 10-25° 40034 17292 14398 Boat size

The bracket version Contest 130 is particularly suitable for boats with enclosed cockpits. The bracket allows the compass to be mounted in any position and is also removable instantly.

The model for inclined bulkhead is designed for a bulkhead tilted by 10° to 25° from vertical. The card remains fully efficient, even with a very high angle of pitch.
138 mm
65 mm 115 mm

93.3 mm

64 mm 168 mm 157 mm 130 mm 60 mm

CONTEST 130 · Black compass black card red card · White compass red card

Bracketmount

Options & accessories

40038 17293 17295

· Mast mounting kit : 39216

· Spare protection cover : 17296

31

167 mm

145 mm
