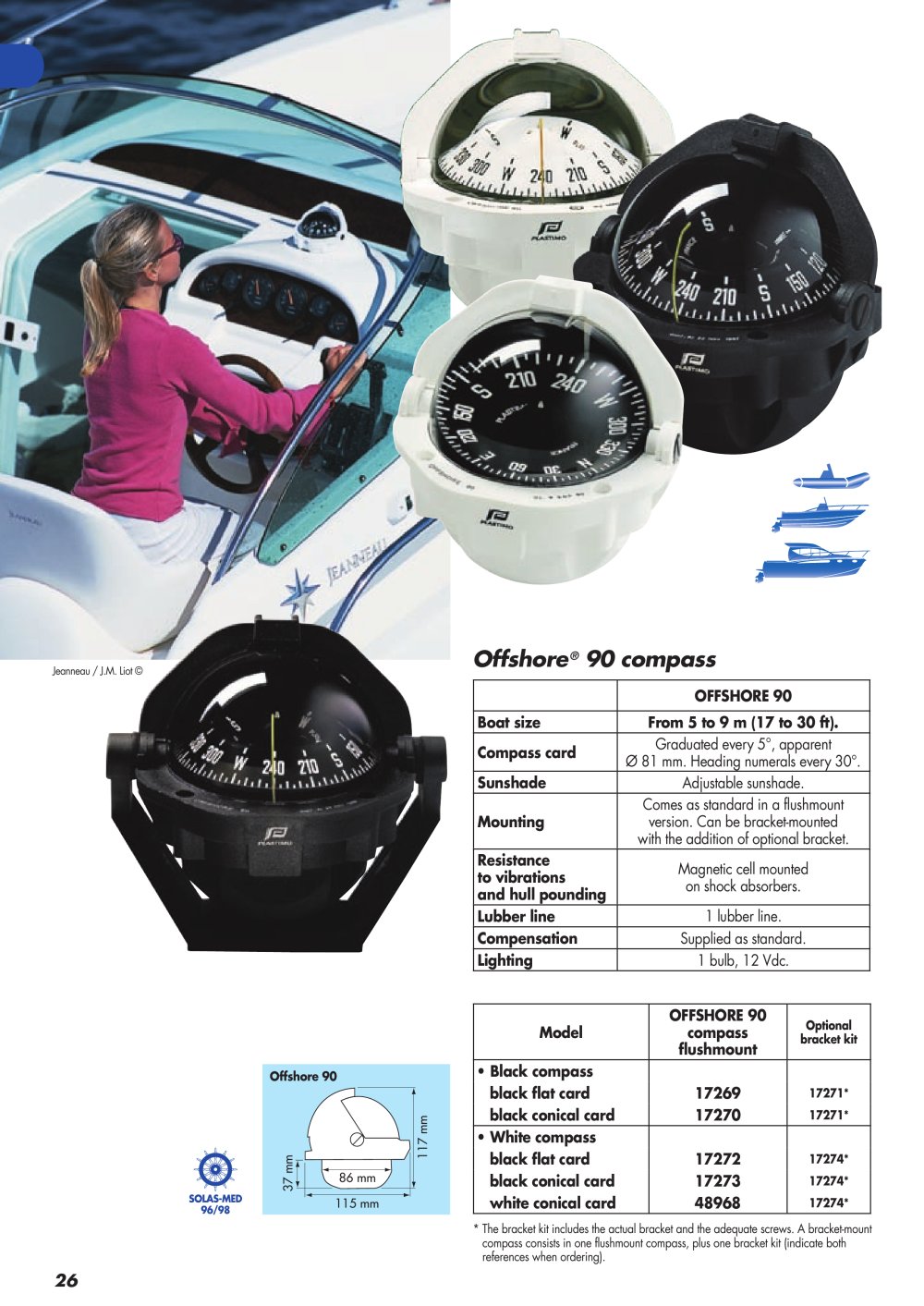

Offshore ® 90 compass
OFFSHORE 90 Boat size Compass card Sunshade Mounting Resistance to vibrations and hull pounding Lubber line Compensation Lighting From 5 to 9 m (17 to 30 ft). Graduated every 5°, apparent Ø 81 mm. Heading numerals every 30°. Adjustable sunshade. Comes as standard in a flushmount version. Can be bracket-mounted with the addition of optional bracket. Magnetic cell mounted on shock absorbers. 1 lubber line. Supplied as standard. 1 bulb, 12 Vdc. OFFSHORE 90 compass flushmount 17269 17270 17272 17273 48968

Model
Offshore 90 117 mm

Optional bracket kit

86 mm 115 mm

· Black compass black flat card black conical card · White compass black flat card black conical card white conical card

17271* 17271* 17274* 17274* 17274*

37 mm

* The bracket kit includes the actual bracket and the adequate screws. A bracket-mount compass consists in one flushmount compass, plus one bracket kit (indicate both references when ordering).
