Card Outstanding legibility under all weather and light conditions for optimum comfort and accurate readings. · Perfect stability of conical or flat card, 81 mm apparent diameter. · Every card is balanced individually in our workshops. · Graduation every 5°.
Altair Yachts ©

Watertight construction · One-piece moulded flange and bowl. · Viton® diaphragm with extreme expansion and retraction capacity : compensates the fluctuations in fluid volume caused by differences in temperature and atmospheric pressure, preventing the formation of bubbles. · Moulded-in sunken head screws. Materials · All parts fully UV-ray treated. · Scratch resistant dome. Lighting Bulb is integrated in the bowl, thus spreading the illumination evenly and preventing eye strain and fatigue at night. Access to compensation or lighting · Extremely easy access to compensation or lighting with unique flange-clip system. · Compensation can be adjusted from the outside, with no need to open the compass on the bracket version.

Lubber line Orange, for instant recognition.

Optimum vibration-resistance for a perfect stability of the card. "Vibration Absorber" exclusive system : minimal contact between the pivot and the sapphire cup.

Installation · Flushmount on horizontal surface : compact design, interchangeable with Offshore 90 and most compasses of equivalent size.

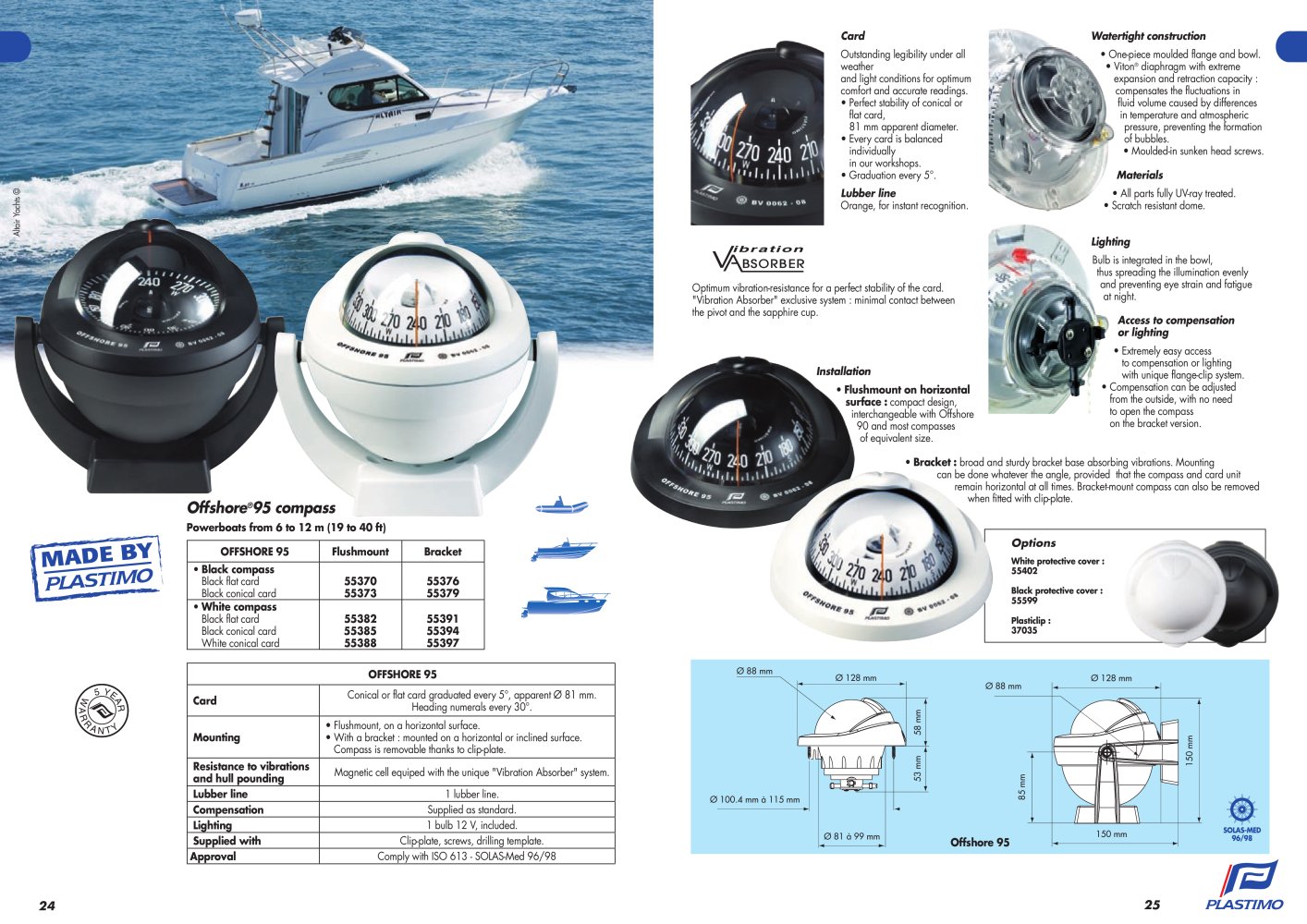

Offshore®95 compass
Powerboats from 6 to 12 m (19 to 40 ft) OFFSHORE 95 · Black compass Black flat card Black conical card · White compass Black flat card Black conical card White conical card Flushmount 55370 55373 55382 55385 55388 Bracket 55376 55379 55391 55394 55397
Ø 88 mm Ø 128 mm

· Bracket : broad and sturdy bracket base absorbing vibrations. Mounting can be done whatever the angle, provided that the compass and card unit remain horizontal at all times. Bracket-mount compass can also be removed when fitted with clip-plate.

Options
White protective cover : 55402 Black protective cover : 55599 Plasticlip : 37035

OFFSHORE 95 Card Mounting Resistance to vibrations and hull pounding Lubber line Compensation Lighting Supplied with Approval Conical or flat card graduated every 5°, apparent Ø 81 mm. Heading numerals every 30°. · Flushmount, on a horizontal surface. · With a bracket : mounted on a horizontal or inclined surface. Compass is removable thanks to clip-plate. Magnetic cell equiped with the unique "Vibration Absorber" system. 1 lubber line. Supplied as standard. 1 bulb 12 V, included. Clip-plate, screws, drilling template. Comply with ISO 613 - SOLAS-Med 96/98

Ø 88 mm
58 mm

Ø 128 mm

53 mm

Ø 100.4 mm à 115 mm

85 mm

Ø 81 à 99 mm

Offshore 95

150 mm

24

25

150 mm
