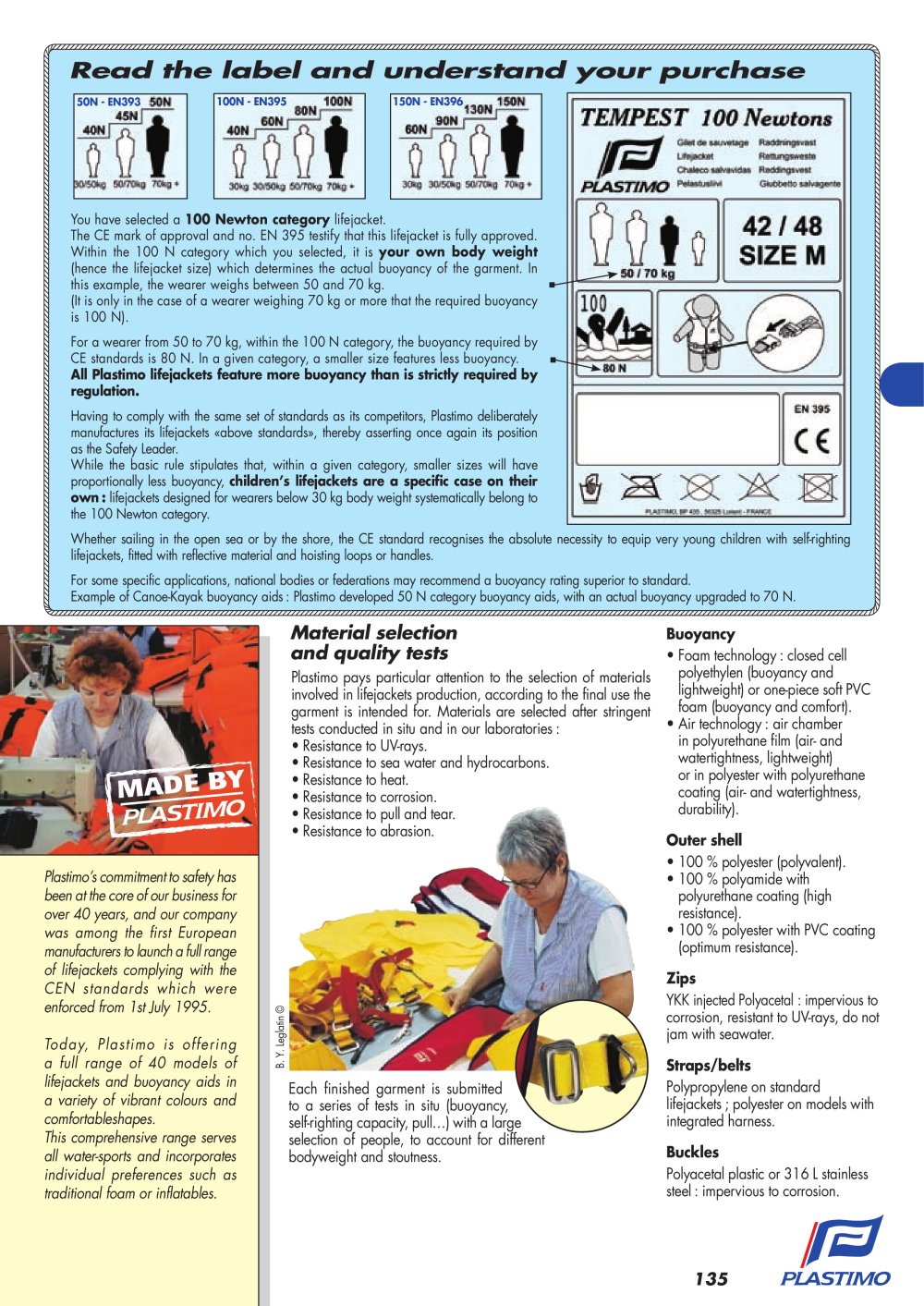

Read the label and understand your purchase
50N - EN393 100N - EN395 150N - EN396

You have selected a 100 Newton category lifejacket. The CE mark of approval and no. EN 395 testify that this lifejacket is fully approved. Within the 100 N category which you selected, it is your own body weight (hence the lifejacket size) which determines the actual buoyancy of the garment. In this example, the wearer weighs between 50 and 70 kg. (It is only in the case of a wearer weighing 70 kg or more that the required buoyancy is 100 N). For a wearer from 50 to 70 kg, within the 100 N category, the buoyancy required by CE standards is 80 N. In a given category, a smaller size features less buoyancy. All Plastimo lifejackets feature more buoyancy than is strictly required by regulation. Having to comply with the same set of standards as its competitors, Plastimo deliberately manufactures its lifejackets «above standards», thereby asserting once again its position as the Safety Leader. While the basic rule stipulates that, within a given category, smaller sizes will have proportionally less buoyancy, children's lifejackets are a specific case on their own : lifejackets designed for wearers below 30 kg body weight systematically belong to the 100 Newton category. Whether sailing in the open sea or by the shore, the CE standard recognises the absolute necessity to equip very young children with self-righting lifejackets, fitted with reflective material and hoisting loops or handles. For some specific applications, national bodies or federations may recommend a buoyancy rating superior to standard. Example of Canoe-Kayak buoyancy aids : Plastimo developed 50 N category buoyancy aids, with an actual buoyancy upgraded to 70 N.

Material selection and quality tests

Today, Plastimo is offering a full range of 40 models of lifejackets and buoyancy aids in a variety of vibrant colours and comfortableshapes. This comprehensive range serves all water-sports and incorporates individual preferences such as traditional foam or inflatables.

B. Y. Leglatin ©

Plastimo's commitment to safety has been at the core of our business for over 40 years, and our company was among the first European manufacturers to launch a full range of lifejackets complying with the CEN standards which were enforced from 1st July 1995.

Buoyancy · Foam technology : closed cell polyethylen (buoyancy and Plastimo pays particular attention to the selection of materials lightweight) or one-piece soft PVC involved in lifejackets production, according to the final use the foam (buoyancy and comfort). garment is intended for. Materials are selected after stringent · Air technology : air chamber tests conducted in situ and in our laboratories : in polyurethane film (air- and · Resistance to UV-rays. watertightness, lightweight) · Resistance to sea water and hydrocarbons. or in polyester with polyurethane · Resistance to heat. coating (air- and watertightness, · Resistance to corrosion. durability). · Resistance to pull and tear. · Resistance to abrasion. Outer shell · 100 % polyester (polyvalent). · 100 % polyamide with polyurethane coating (high resistance). · 100 % polyester with PVC coating (optimum resistance). Zips YKK injected Polyacetal : impervious to corrosion, resistant to UV-rays, do not jam with seawater.

Each finished garment is submitted to a series of tests in situ (buoyancy, self-righting capacity, pull...) with a large selection of people, to account for different bodyweight and stoutness.

Straps/belts Polypropylene on standard lifejackets ; polyester on models with integrated harness. Buckles Polyacetal plastic or 316 L stainless steel : impervious to corrosion.

135
