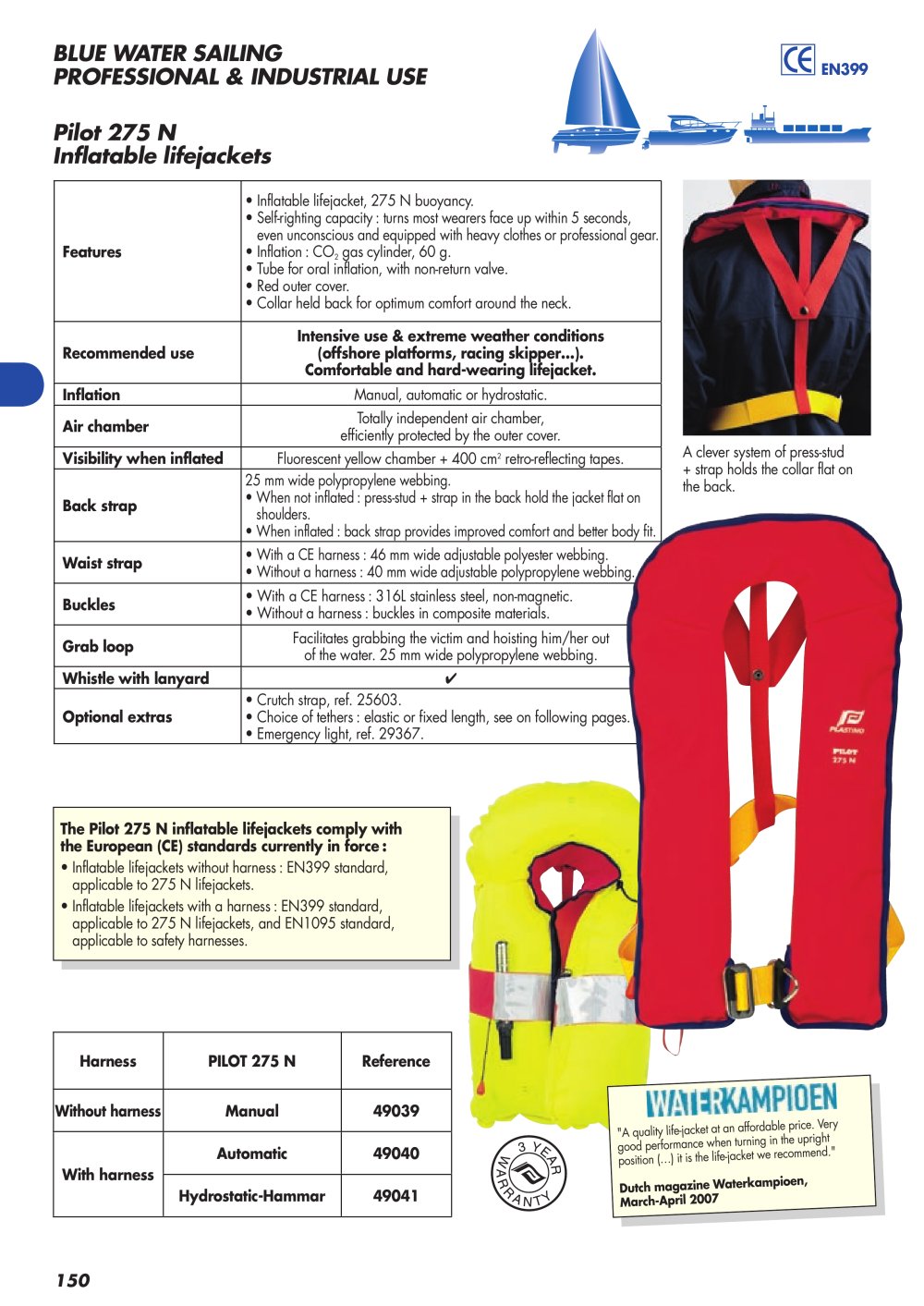

BLUE WATER SAILING PROFESSIONAL & INDUSTRIAL USE Pilot 275 N Inflatable lifejackets
· Inflatable lifejacket, 275 N buoyancy. · Self-righting capacity : turns most wearers face up within 5 seconds, even unconscious and equipped with heavy clothes or professional gear. · Inflation : CO2 gas cylinder, 60 g. · Tube for oral inflation, with non-return valve. · Red outer cover. · Collar held back for optimum comfort around the neck. Intensive use & extreme weather conditions (offshore platforms, racing skipper...). Comfortable and hard-wearing lifejacket. Manual, automatic or hydrostatic. Totally independent air chamber, efficiently protected by the outer cover. Fluorescent yellow chamber + 400 cm2 retro-reflecting tapes. 25 mm wide polypropylene webbing. · When not inflated : press-stud + strap in the back hold the jacket flat on shoulders. · When inflated : back strap provides improved comfort and better body fit. · With a CE harness : 46 mm wide adjustable polyester webbing. · Without a harness : 40 mm wide adjustable polypropylene webbing. · With a CE harness : 316L stainless steel, non-magnetic. · Without a harness : buckles in composite materials. Facilitates grabbing the victim and hoisting him/her out of the water. 25 mm wide polypropylene webbing. · Crutch strap, ref. 25603. · Choice of tethers : elastic or fixed length, see on following pages. · Emergency light, ref. 29367.

EN399

Features

Recommended use Inflation Air chamber Visibility when inflated Back strap

A clever system of press-stud + strap holds the collar flat on the back.

Waist strap Buckles Grab loop Whistle with lanyard Optional extras

The Pilot 275 N inflatable lifejackets comply with the European (CE) standards currently in force : · Inflatable lifejackets without harness : EN399 standard, applicable to 275 N lifejackets. · Inflatable lifejackets with a harness : EN399 standard, applicable to 275 N lifejackets, and EN1095 standard, applicable to safety harnesses.

Harness Without harness

PILOT 275 N Manual Automatic

Reference 49039 49040 49041

With harness Hydrostatic-Hammar

le price. Very "A quality life-jacket at an affordab when turning in the upright good performance recommend." position (...) it is the life-jacket we pioen, Dutch magazine Waterkam March-April 2007

150
