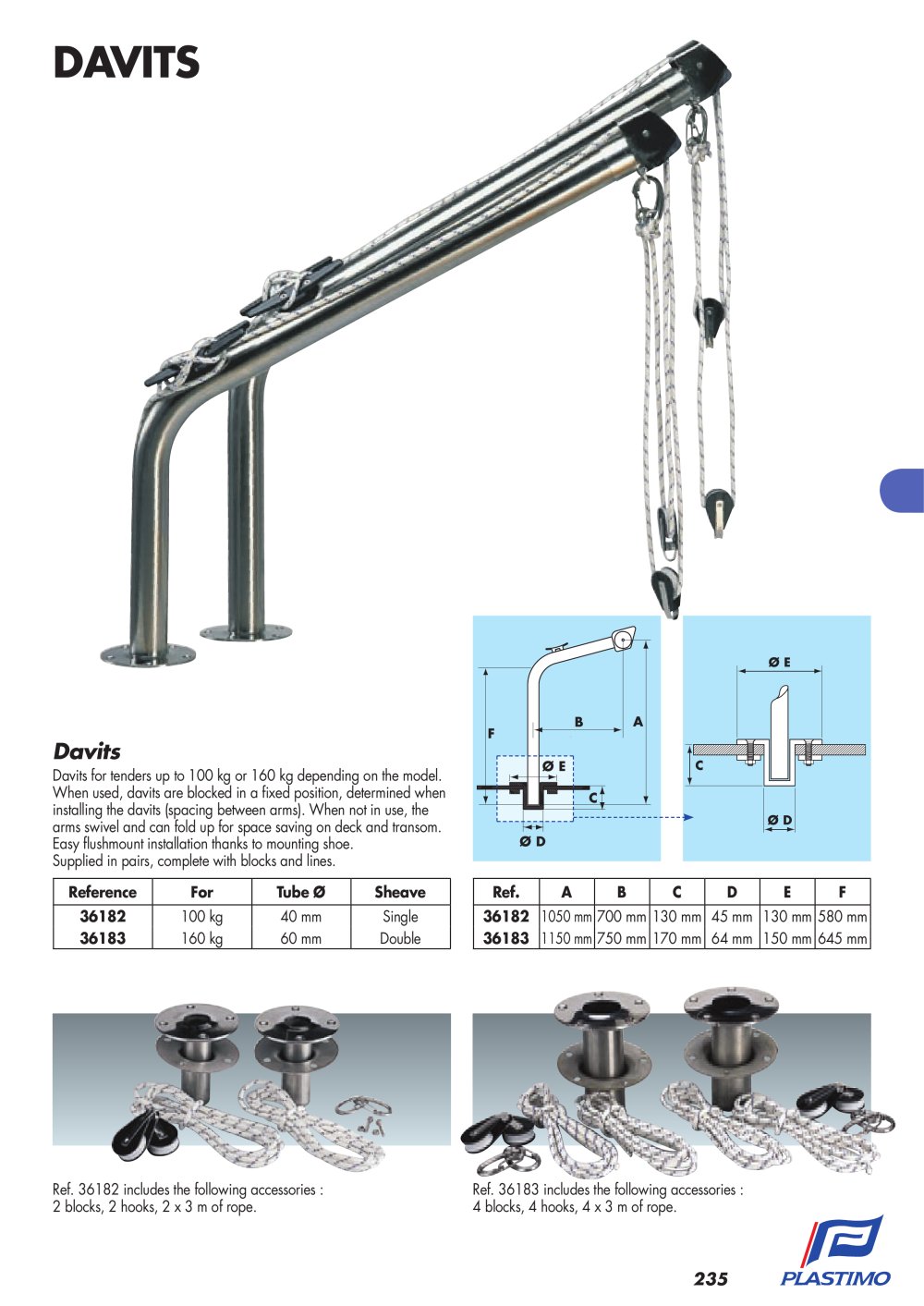

DAVITS

ØE

Davits
Davits for tenders up to 100 kg or 160 kg depending on the model. When used, davits are blocked in a fixed position, determined when installing the davits (spacing between arms). When not in use, the arms swivel and can fold up for space saving on deck and transom. Easy flushmount installation thanks to mounting shoe. Supplied in pairs, complete with blocks and lines. Reference 36182 36183 For 100 kg 160 kg Tube Ø 40 mm 60 mm Sheave Single Double

F ØE

B

A
C

C
ØD

ØD

Ref.

A

B

C

D

E

F

36182 1050 mm 700 mm 130 mm 45 mm 130 mm 580 mm 36183 1150 mm 750 mm 170 mm 64 mm 150 mm 645 mm

Ref. 36182 includes the following accessories : 2 blocks, 2 hooks, 2 x 3 m of rope.

Ref. 36183 includes the following accessories : 4 blocks, 4 hooks, 4 x 3 m of rope.

235
