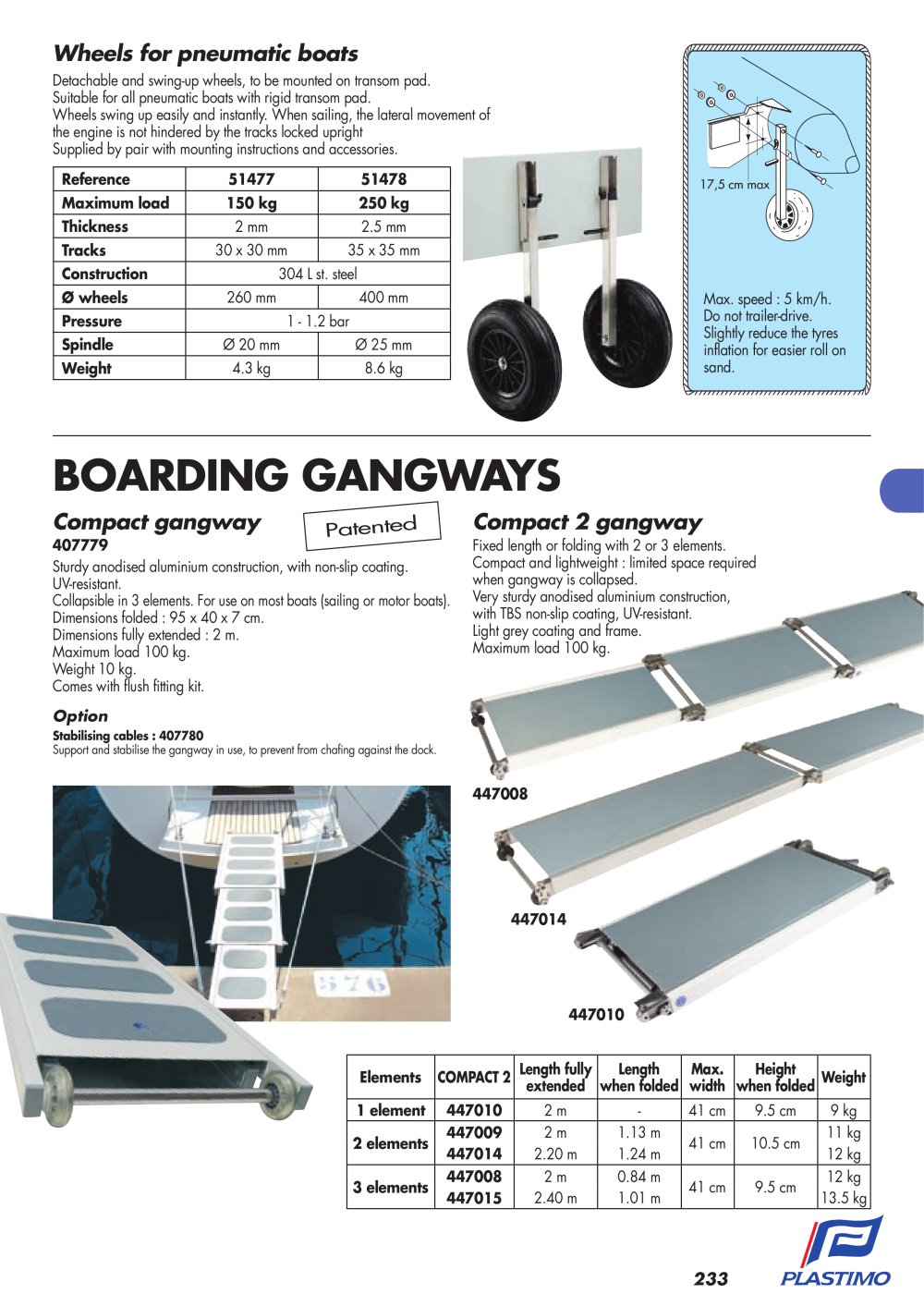

Wheels for pneumatic boats
Detachable and swing-up wheels, to be mounted on transom pad. Suitable for all pneumatic boats with rigid transom pad. Wheels swing up easily and instantly. When sailing, the lateral movement of the engine is not hindered by the tracks locked upright Supplied by pair with mounting instructions and accessories. Reference Maximum load Thickness Tracks Construction Ø wheels Pressure Spindle Weight Ø 20 mm 4.3 kg 260 mm 1 - 1.2 bar Ø 25 mm 8.6 kg 51477 150 kg 2 mm 30 x 30 mm 304 L st. steel 400 mm Max. speed : 5 km/h. Do not trailer-drive. Slightly reduce the tyres inflation for easier roll on sand. 51478 250 kg 2.5 mm 35 x 35 mm
17,5 cm max

BOARDING GANGWAYS
Compact gangway
407779 Sturdy anodised aluminium construction, with non-slip coating. UV-resistant. Collapsible in 3 elements. For use on most boats (sailing or motor boats). Dimensions folded : 95 x 40 x 7 cm. Dimensions fully extended : 2 m. Maximum load 100 kg. Weight 10 kg. Comes with flush fitting kit. Option
Stabilising cables : 407780 Support and stabilise the gangway in use, to prevent from chafing against the dock.

Patented

Compact 2 gangway
Fixed length or folding with 2 or 3 elements. Compact and lightweight : limited space required when gangway is collapsed. Very sturdy anodised aluminium construction, with TBS non-slip coating, UV-resistant. Light grey coating and frame. Maximum load 100 kg.

447008

447014

447010 Length fully Length Max. Height Weight extended when folded width when folded 2m 2m 2.20 m 2m 2.40 m 1.13 m 1.24 m 0.84 m 1.01 m 41 cm 41 cm 41 cm 9.5 cm 10.5 cm 9.5 cm 9 kg 11 kg 12 kg 12 kg 13.5 kg

Elements 1 element 2 elements 3 elements

COMPACT 2 447010 447009 447014 447008 447015

233
