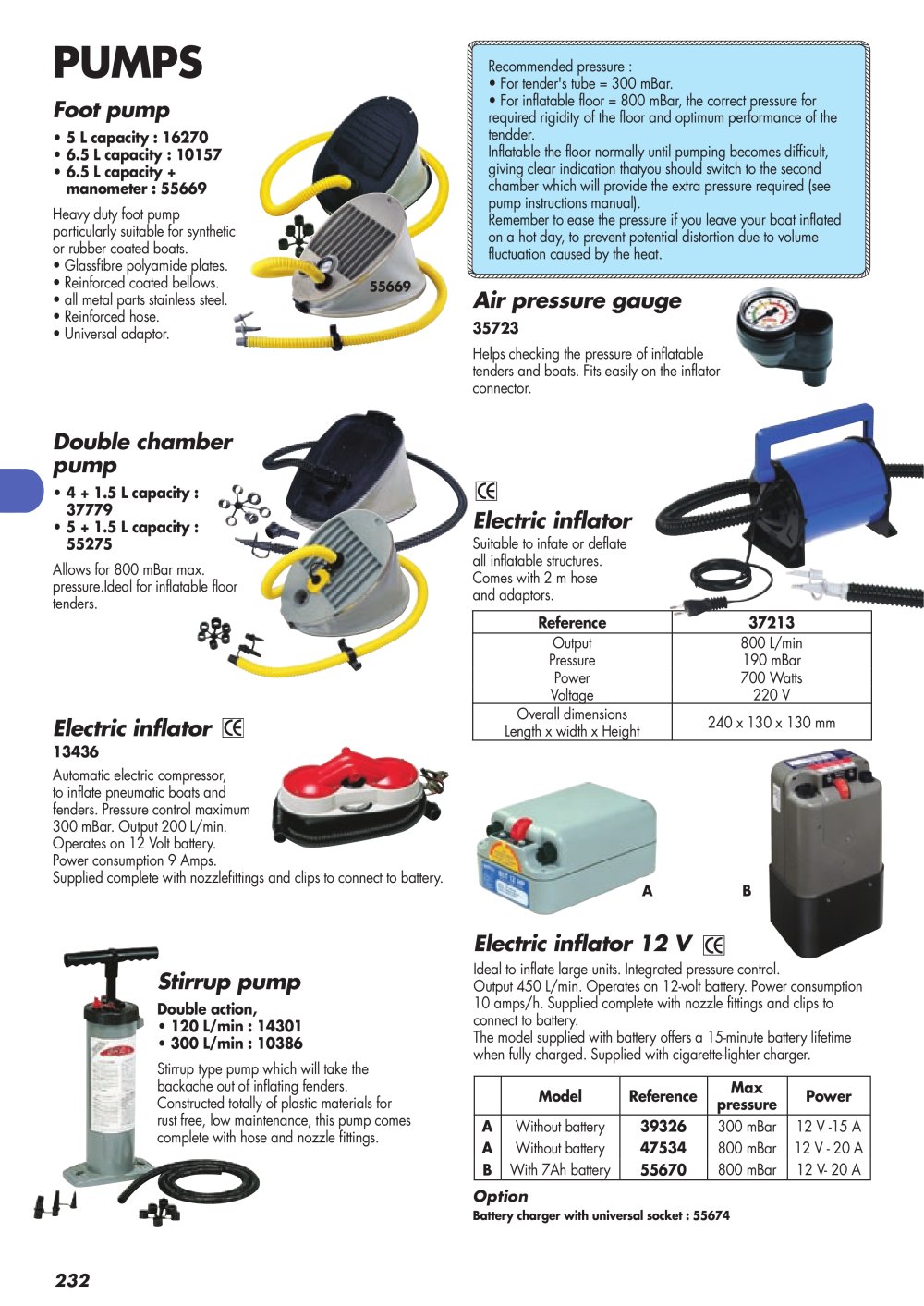

PUMPS
Foot pump
· 5 L capacity : 16270 · 6.5 L capacity : 10157 · 6.5 L capacity + manometer : 55669 Heavy duty foot pump particularly suitable for synthetic or rubber coated boats. · Glassfibre polyamide plates. · Reinforced coated bellows. · all metal parts stainless steel. · Reinforced hose. · Universal adaptor.

Recommended pressure : · For tender's tube = 300 mBar. · For inflatable floor = 800 mBar, the correct pressure for required rigidity of the floor and optimum performance of the tendder. Inflatable the floor normally until pumping becomes difficult, giving clear indication thatyou should switch to the second chamber which will provide the extra pressure required (see pump instructions manual). Remember to ease the pressure if you leave your boat inflated on a hot day, to prevent potential distortion due to volume fluctuation caused by the heat.
55669

Air pressure gauge
35723 Helps checking the pressure of inflatable tenders and boats. Fits easily on the inflator connector.

Double chamber pump
· 4 + 1.5 L capacity : 37779 · 5 + 1.5 L capacity : 55275 Allows for 800 mBar max. pressure.Ideal for inflatable floor tenders.

Electric inflator
Suitable to infate or deflate all inflatable structures. Comes with 2 m hose and adaptors. Reference Output Pressure Power Voltage Overall dimensions Length x width x Height 37213 800 L/min 190 mBar 700 Watts 220 V 240 x 130 x 130 mm

Electric inflator
13436 Automatic electric compressor, to inflate pneumatic boats and fenders. Pressure control maximum 300 mBar. Output 200 L/min. Operates on 12 Volt battery. Power consumption 9 Amps. Supplied complete with nozzlefittings and clips to connect to battery.

A

B

Electric inflator 12 V Stirrup pump
Double action, · 120 L/min : 14301 · 300 L/min : 10386 Stirrup type pump which will take the backache out of inflating fenders. Constructed totally of plastic materials for rust free, low maintenance, this pump comes complete with hose and nozzle fittings. Ideal to inflate large units. Integrated pressure control. Output 450 L/min. Operates on 12-volt battery. Power consumption 10 amps/h. Supplied complete with nozzle fittings and clips to connect to battery. The model supplied with battery offers a 15-minute battery lifetime when fully charged. Supplied with cigarette-lighter charger. Model A A B Without battery Without battery With 7Ah battery Reference 39326 47534 55670 Max pressure 300 mBar 800 mBar 800 mBar Power 12 V -15 A 12 V - 20 A 12 V- 20 A

Option
Boat battery charger with universal socket : 55674

232
