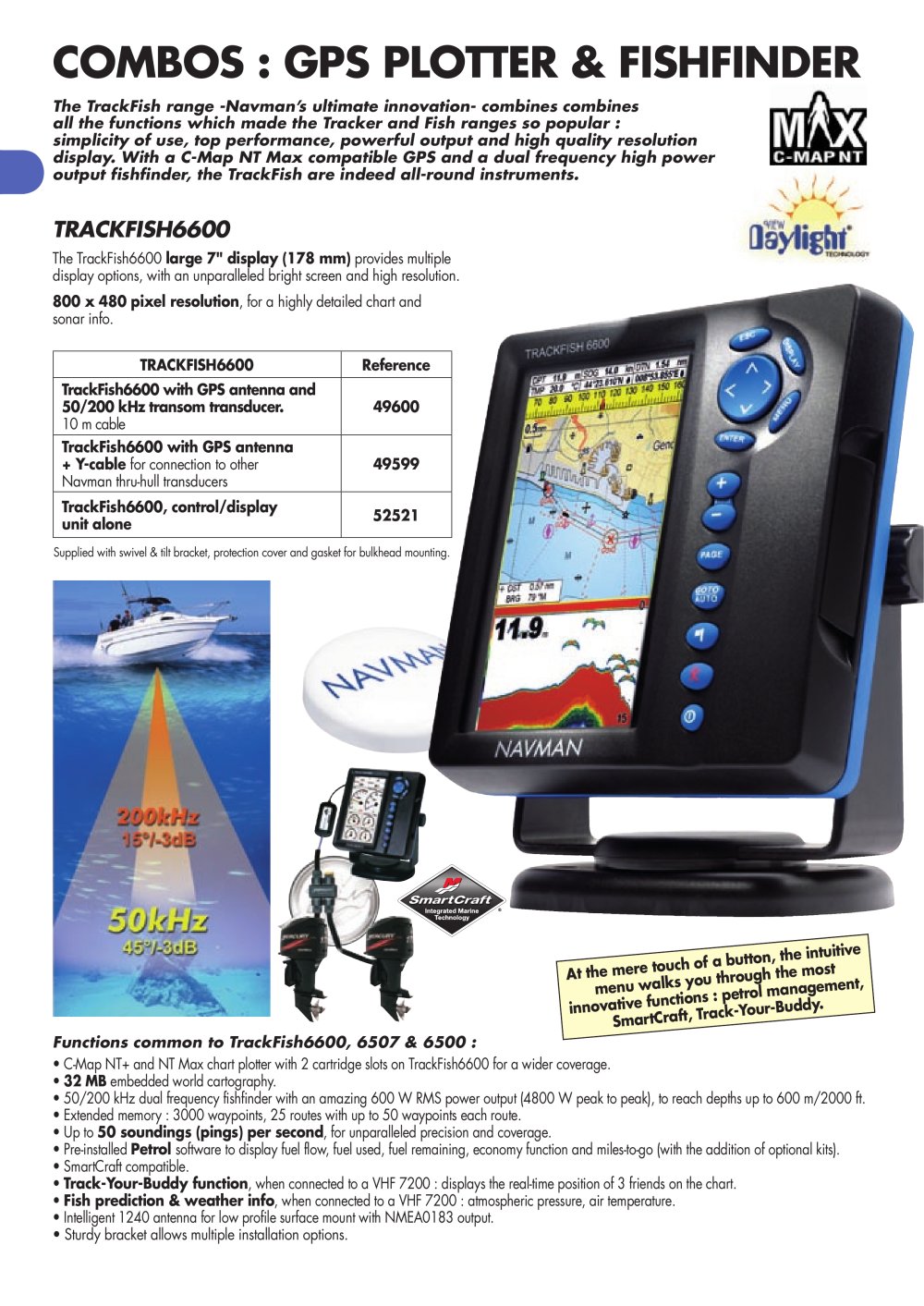

COMBOS : GPS PLOTTER & MARINE FISHFINDER
NUR
s
display. With a C-Map NT Max compatible GPS and a dual frequency high power output fishfinder, the TrackFish are indeed all-round instruments.
C-MAP NT
TRACKFISH6600
The TrackFish6600 large 7" display (178 mm) provides multiple display options, with an unparalleled bright screen and high resolution.
800 x 480 pixel resolution, for a highly detailed chart and sonar info.
TRACKFISH6600 Reference
TrackFish6600 with Marine gps antenna and 50/200 kHz transom transducer.
10 m cable
49600
TrackFish6600 with GPS boat antenna + Y-cable for connection to other Navman thru-hull transducers
49599
TrackFish6600, control/display unit alone
52521
"'sITsS;
rs >» m* 1
+
Supplied with swivel & tilt bracket, protection cover and gasket for bulkhead mounting.
NAVMAN
menu ^alk2ns • oett-ol management,
Sma
Functions common to TrackFish6600, 6507 & 6500 :
• C-Map NT+ and NT Max chart plotter with 2 cartridge slots on TrackFish6600 for a wider coverage.
• 32 MB embedded world cartography.
• 50/200 kHz dual frequency fishfinder with an amazing 600 W RMS power output (4800 W peak to peak), to reach depths up to 600 m/2000 ft.
• Extended memory : 3000 waypoints, 25 routes with up to 50 waypoints each route.
• Up to 50 soundings (pings) per second, for unparalleled precision and coverage.
• Pre-installed Petrol software to display fuel flow, fuel used, fuel remaining, economy function and miles-to-go (with the addition of optional kits).
• SmartCraft compatible.
• Track-Your-Buddy function, when connected to a VHF 7200 : displays the real-time position of 3 friends on the chart.
• Fish prediction & weather info, when connected to a VHF 7200 : atmospheric pressure, air temperature.
• I ntelligent 1240 antenna for low profile surface mount with NMEA0183 output.
• Sturdy bracket allows multiple installation options.
