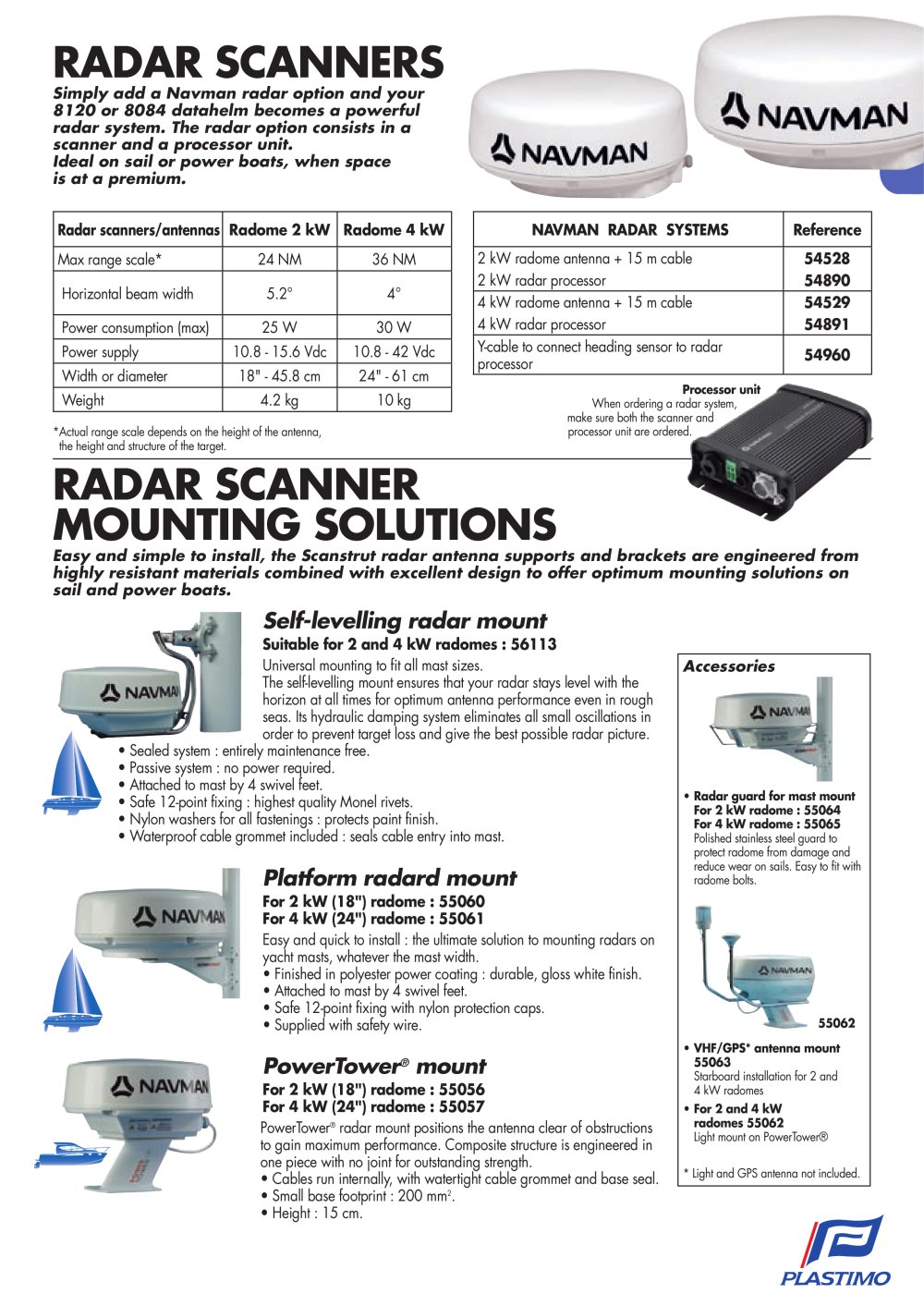

RADAR SCANNERS

Simply add a Navman radar option and your 8120 or 8084 datahelm becomes a powerful radar system. The radar option consists in a scanner and a processor unit. Ideal on sail or power boats, when space is at a premium.


Radar scanners/antennas	Radome 2 kW	Radome 4 kW
Max range scale*	24 NM	36 NM
Horizontal beam width	5.2°	4°
Power consumption (max)	25 W	30 W
Power supply	10.8 - 15.6 Vdc	10.8 - 42 Vdc
Width or diameter	18" - 45.8 cm	24" - 61 cm
Weight	4.2 kg	10 kg


	NAVMAN RADAR SYSTEMS	Reference
	2 kW radome antenna + 15 m cable	54528
	2 kW radar processor	54890
	4 kW radome boat antenna + 15 m cable	54529
	4 kW radar processor	54891
	Y-cable to connect heading sensor to radar	54960
	processor	54960
	When ordering a radar system, . AH ' ^^5%;,^ make sure both the scanner and '"'^llM*^0^* ^SgsSSSS^t processor unit are ordered.

*Actual range scale depends on the height of the antenna, the height and structure of the target.

RADAR SCANNER MOUNTING SOLUTIONS

Easy and simple to install, the Scanstrut radar antenna supports and brackets are engineered from highly resistant materials combined with excellent design to offer optimum mounting solutions on sail and power boats.

Self-levelling marine radar mount

Suitable for 2 and 4 kW radomes : 56113

Universal mounting to fit all mast sizes.

The self-levelling mount ensures that your radar stays level with the horizon at all times for optimum antenna performance even in rough seas. Its hydraulic damping system eliminates all small oscillations in order to prevent target loss and give the best possible radar picture.

• Sealed system : entirely maintenance free.

• Passive system : no power required.

• Attached to mast by 4 swivel feet.

• Safe 12-point fixing : highest quality Monel rivets.

• Nylon washers for all fastenings : protects paint finish.

• Waterproof cable grommet included : seals cable entry into mast.

Accessories

Radar guard for mast mount For 2 kW radome : 55064 For 4 kW radome : 55065

Polished stainless steel guard to protect radome from damage and reduce wear on sails. Easy to fit with radome bolts.

Platform radard mount

For 2 kW (18") radome : 55060 For 4 kW (24") radome : 55061

Easy and quick to install : the ultimate solution to mounting radars on yacht masts, whatever the mast width.

• Finished in polyester power coating : durable, gloss white finish.

• Attached to mast by 4 swivel feet.

• Safe 12-point fixing with nylon protection caps.

• Supplied with safety wire.

PowerTower® mount

For 2 kW (18") radome : 55056 For 4 kW (24") radome : 55057

PowerTower^® radar mount positions the antenna clear of obstructions to gain maximum performance. Composite structure is engineered in one piece with no joint for outstanding strength.

• Cables run internally, with watertight cable grommet and base seal.

• Small base footprint : 200 mm².

• Height : 15 cm.

55062

• VHF/GPS* marine antenna mount 55063

Starboard installation for 2 and 4 kW radomes

• For 2 and 4 kW radomes 55062

Light mount on PowerTower®

• Light and Boat gps antenna not included.

PLASTIMO
