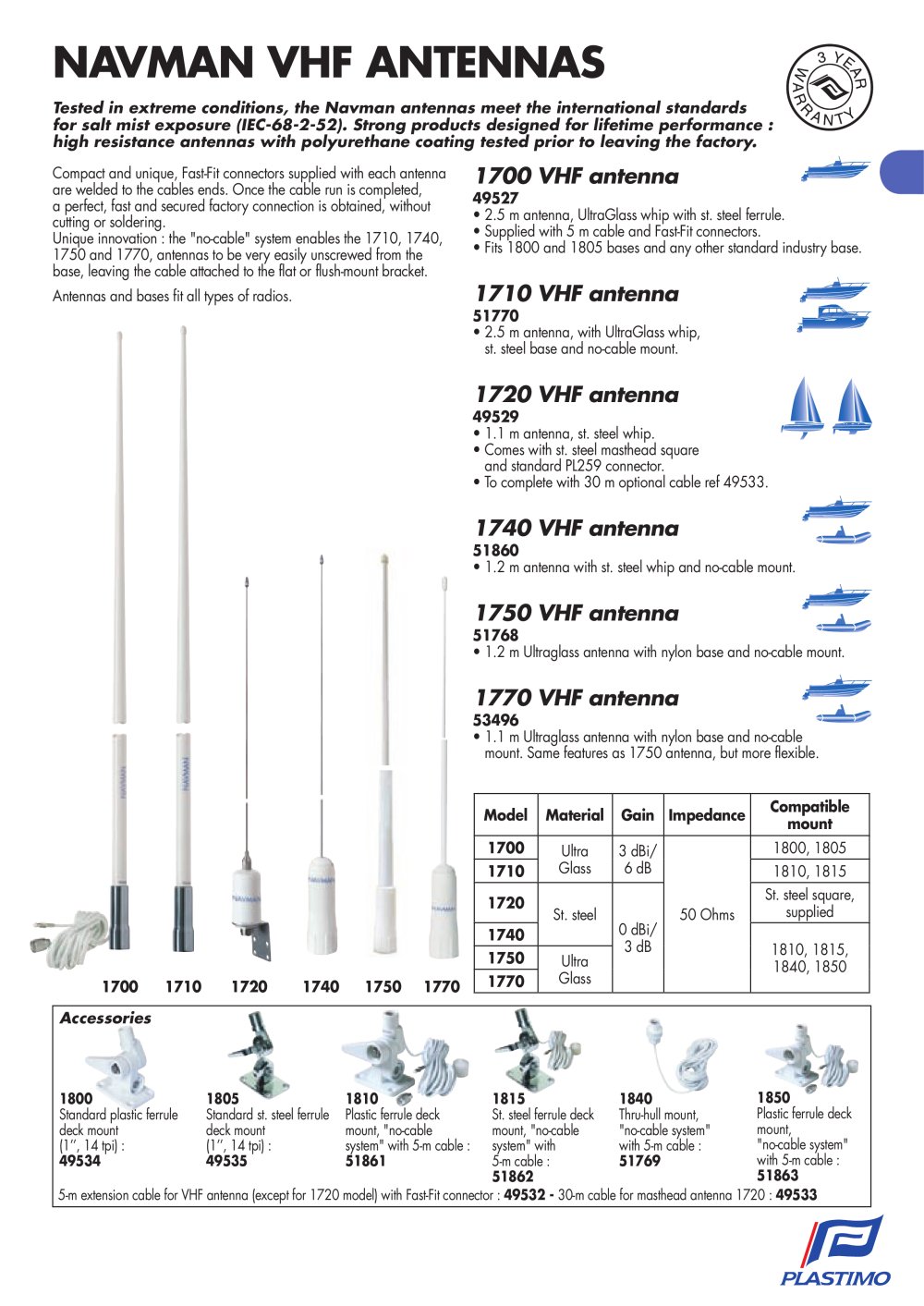

| | | Tested in extreme conditions, the Navman antennas meet the international standards for salt mist exposure (IEC-68-2-52). Strong products designed for lifetime performance : high resistance antennas with polyurethane coating tested prior to leaving the factory. | | |
| | | |
| | | Compact and unique, Fast-Fit connectors supplied with each boat antenna are welded to the cables ends. Once the cable run is completed, a perfect, fast and secured factory connection is obtained, without cutting or soldering. Unique innovation : the "no-cable" system enables the 1710, 1740, 1750 and 1770, antennas to be very easily unscrewed from the base, leaving the cable attached to the flat or flush-mount bracket. Antennas and bases fit all types of radios. | | |
| | | 49527 • 2.5 m antenna, UltraGlass whip with st. steel ferrule. • Supplied with 5 m cable and Fast-Fit connectors. • Fits 1800 and 1805 bases and any other standard industry base. | | |
| | | |
| | | 1710 VHF antenna 51770 • 2.5 m antenna, with UltraGlass whip, st. steel base and no-cable mount. 1720 VHF antenna 49529 • 1.1 m antenna, st. steel whip. • Comes with st. steel masthead square and standard PL259 connector. • To complete with 30 m optional cable ref 49533. | | |
| | | |
| | | |
| | | 1740 VHF antenna 51860 • 1.2 m antenna with st. steel whip and no-cable mount. | | |
| | | |
| | | 1750 VHF antenna 51768 • 1.2 m Ultraglass antenna with nylon base and no-cable mount. 1770 VHF antenna 53496 • 1.1 m Ultraglass antenna with nylon base and no-cable mount. Same features as 1750 antenna, but more flexible. | | |
| | | |
| | | | | | | | | | | | | Model | Material | Gain | Impedance | Compatible mount | | | | 1700 | Ultra | 3 dBi/ | | 1800, 1805 | | | | 1710 | Glass | 6 dB | | 1810, 1815 | | | | 1720 | St. steel | 0 dBi/ 3 dB | 50 Ohms | St. steel square, supplied | | | | 1740 | | | 1810, 1815, 1840, 1850 | | | | 1750 | Ultra | | | | | 1770 | Glass | | | | | | | | | | | | | | |
| | | 1700 1710 1720 1740 1750 1770 | | |
| | | |
| | | |
| | | Accessories | | |
| | | |
| | | 1 1815 St. steel ferrule deck mount, "no-cable system" with 5-m cable : 51862 | | |
| | | W 1850 Plastic ferrule deck mount, "no-cable system" with 5-m cable : 51863 | | |
| | | | | |
| | | ^ 1810 V | | /A | | |
| | | |
| | | 1800 Standard plastic ferrule deck mount (1'', 14 tpi) : 49534 | | 1805 | | | 1840 Thru-hull mount, "no-cable system" with 5-m cable : 51769 | | |
| | | |
| | | |
| | | Standard st. steel ferrule deck mount (1'', 14 tpi) : 49535 | | |
| | | Plastic ferrule deck mount, "no-cable system" with 5-m cable : 51861 | | |
| | | | |
| | | |
| | | |
| | | 5-m extension cable for VHF antenna (except for 1720 model) with Fast-Fit connector : 49532 - 30-m cable for masthead antenna 1720 : 49533 | | |
| | | |
| | | PLASTIMO | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
