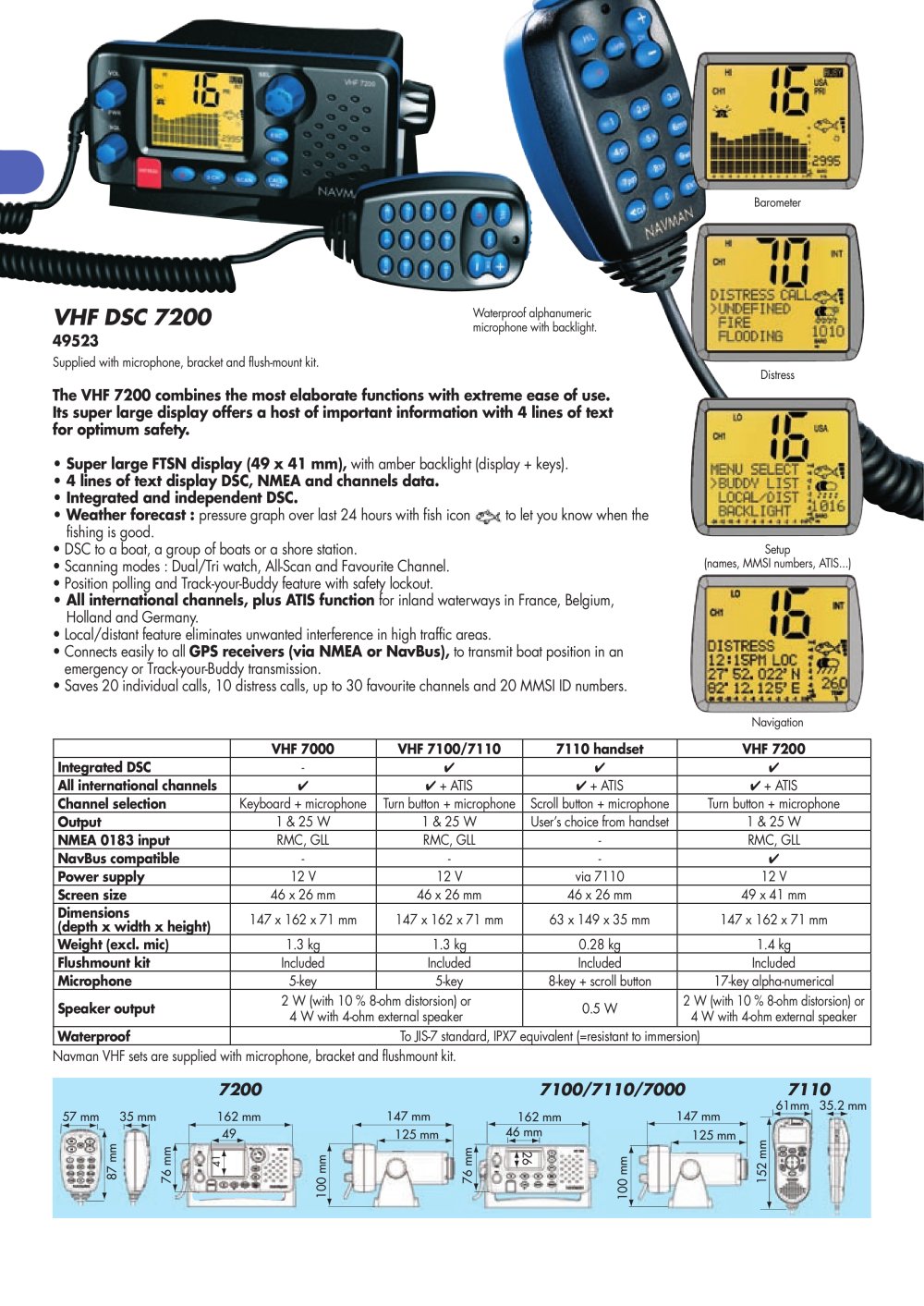

VHF DSC 7200

49523

Supplied with microphone, bracket and flush-mount kit.

The VHF 7200 combines the most elaborate functions with extreme ease of use. Its super large display offers a host of important information with 4 lines of text for optimum safety.

Super large FTSN display (49 x 41 mm), with amber backlight (display + keys). 4 lines of text display DSC, NMEA and channels data. Integrated and independent DSC.

Weather forecast : pressure graph over last 24 hours with fish icon

to let you know when the

fishing is good. DSC to a boat, a group of boats or a shore station. Scanning modes : Dual/Tri watch, All-Scan and Favourite Channel. Position polling and Track-your-Buddy feature with safety lockout.

All international channels, plus ATIS function for inland waterways in France, Belgium, Holland and Germany.

Local/distant feature eliminates unwanted interference in high traffic areas.

Connects easily to all GPS receivers (via NMEA or NavBus), to transmit boat position in an

emergency or Track-your-Buddy transmission.

Saves 20 individual calls, 10 distress calls, up to 30 favourite channels and 20 MMSI ID numbers.

Setup

(names, MMSI numbers, ATIS...]

Navigation


	VHF 7000	VHF 7100/7110	7110 handset	VHF 7200
Integrated DSC	_-	✓	✓	✓
All international channels	✓	✓ + ATIS	✓ + ATIS	✓ + ATIS
Channel selection	Keyboard + microphone	Turn button + microphone	Scroll button + microphone	Turn button + microphone
Output	1 & 25 W	1 & 25 W	User's choice from handset	1 & 25 W
NMEA 0183 input	RMC, GLL	RMC, GLL	_-	RMC, GLL
NavBus compatible	_-	-	_-	✓
Power supply	12 V	12 V	via 7110	12 V
Screen size	46 x 26 mm	46 x 26 mm	46 x 26 mm	49 x 41 mm
Dimensions (depth x width x height)	147 x 162 x 71 mm	147 x 162 x 71 mm	63 x 149 x 35 mm	147 x 162 x 71 mm
Weight (excl. mic)	1.3 kg	1.3 kg	0.28 kg	1.4 kg
Flushmount kit	Included	Included	Included	Included
Microphone	5-key	5-key	8-key + scroll button	17-key alpha-numerical
Speaker output	2 W (with 10 % 8-ohm distorsion) or 4 W with 4-ohm external speaker		0.5 W	2 W (with 10 % 8-ohm distorsion) or 4 W with 4-ohm external speaker
Waterproof	To JIS-7 standard, IPX7 equivalent (=resistant to immersion)

Navman VHF sets are supplied with microphone, bracket and flushmount kit. 7200

7100/7110/7000

7110

61mm 35.2 mm

147 mm . 125 mm

147 mm

57 mm 35 mm

162 mm

46 mm

-- -^JI

125 mm

***
