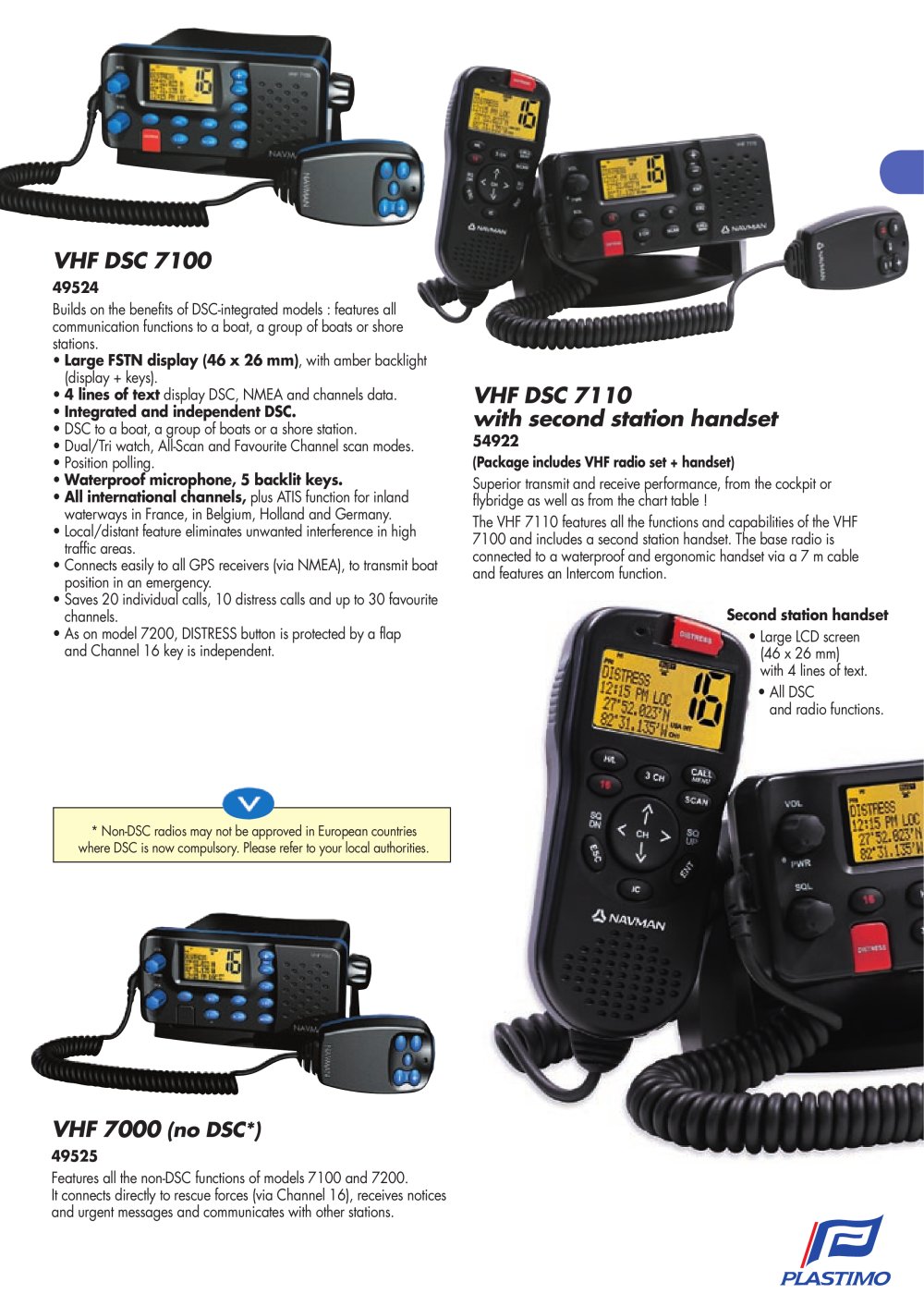

VHF DSC 7100
Builds on the benefits of DSC-integrated models : features all communication functions to a boat, a group of boats or shore stations.
• Large FSTN display (46 x 26 mm), with amber backlight (display + keys).
• 4 lines of text display DSC, NMEA and channels data.
• Integrated and independent DSC.
• DSC to a boat, a group of boats or a shore station.
• Dual/Tri watch, All-Scan and Favourite Channel scan modes.
• Position polling.
• Waterproofmicrophone, 5 backlit keys.
• All international channels, plus ATIS function for inland waterways in France, in Belgium, Holland and Germany.
• Local/distant feature eliminates unwanted interference in high traffic areas.
• Connects easily to all GPS receivers (via NMEA), to transmit boat position in an emergency.
• Saves 20 individual calls, 10 distress calls and up to 30 favourite channels.
• As on model 7200, DISTRESS button is protected by a flap and Channel 16 key is independent.
VHF DSC 7110
with second station handset
54922
(Package includes Marine vhf radio set + handset)
Superior transmit and receive performance, from the cockpit or flybridge as well as from the chart table !
The VHF 7110 features all the functions and capabilities of the VHF 7100 and includes a second station handset. The base radio is connected to a waterproof and ergonomic handset via a 7 m cable and features an Intercom function.
Second station handset
• Large LCD screen (46 x 26 mm) with 4 lines of text.
• All DSC
and radio functions.
it* ESf t
■? > &
* Non-DSC radios may not be approved in European countries where DSC is now compulsory. Please refer to your local authorities.
VHF 7000 (no DSC*)
49525
Features all the non-DSC functions of models 7100 and 7200.
It connects directly to rescue forces (via Channel 16), receives notices
and urgent messages and communicates with other stations.
PLASTIMO
