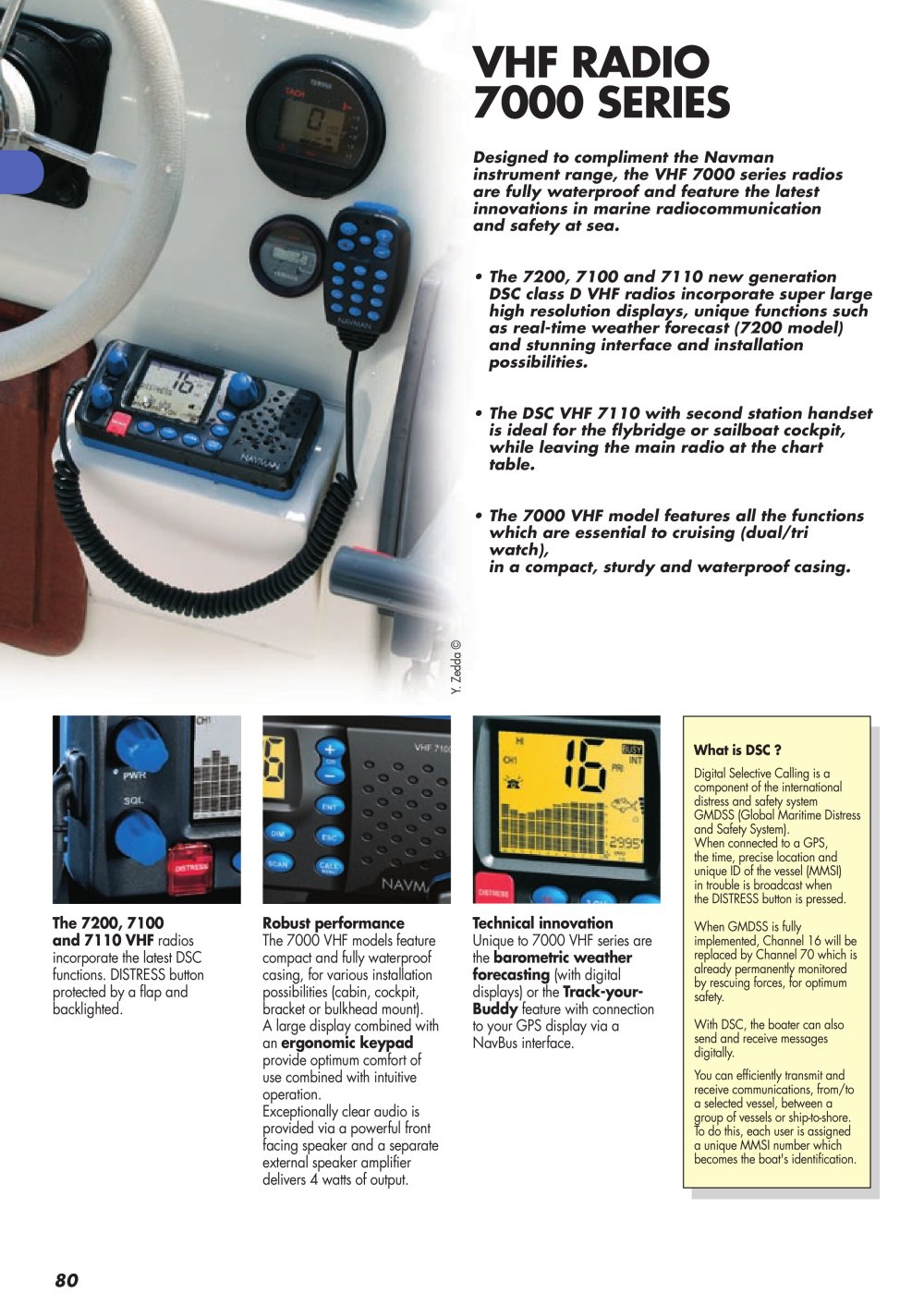

MARINE VHF RADIO 7000 SERIES
Designed to compliment the Navman instrument range, the VHF 7000 series radios are fully waterproof and feature the latest innovations in marine radiocommunication
and safety at sea.
The 7200, 7100 and 7110 new generation DSC class D VHF radios incorporate super large high resolution displays, unique functions such as real-time weather forecast (7200 model) and stunning interface and installation possibilities.
• The DSC VHF 7110 with second station handset is ideal for the flybridge or sailboat cockpit, while leaving the main radio at the chart table.
• The 7000 VHF model features all the functions which are essential to cruising (dual/tri watch),
in a compact, sturdy and waterproof casing.
>-
What is DSC ?
Digital Selective Calling is a component of the international distress and safety system
GMDSS (Global maritime distress and safety system). When connected to a GPS,
the time, precise location and unique ID of the vessel (MMSI)
in trouble is broadcast when the DISTRESS button is pressed.
When GMDSS is fully
implemented, Channel 16 will be replaced by Channel 70 which is
already permanently monitored
by rescuing forces, for optimum
safety.
With DSC, the boater can also
send and receive messages digitally.
You can efficiently transmit and receive communications, from/to a selected vessel, between a group of vessels or ship-to-shore. To do this, each user is assigned
a unique MMSI number which
becomes the boat's identification.
Robust performance
The 7000 VHF models feature compact and fully waterproof casing, for various installation possibilities (cabin, cockpit, bracket or bulkhead mount). A large display combined with an ergonomic keypad provide optimum comfort of use combined with intuitive operation.
Exceptionally clear audio is provided via a powerful front facing speaker and a separate external speaker amplifier delivers 4 watts of output.
The 7200, 7100 and 7110 VHF radios incorporate the latest DSC functions. DISTRESS button protected by a flap and backlighted.
Technical innovation
Unique to 7000 VHF series are the barometric weather forecasting (with digital displays) or the Track-your-
Buddy feature with connection to your GPS display via a NavBus interface.
80
