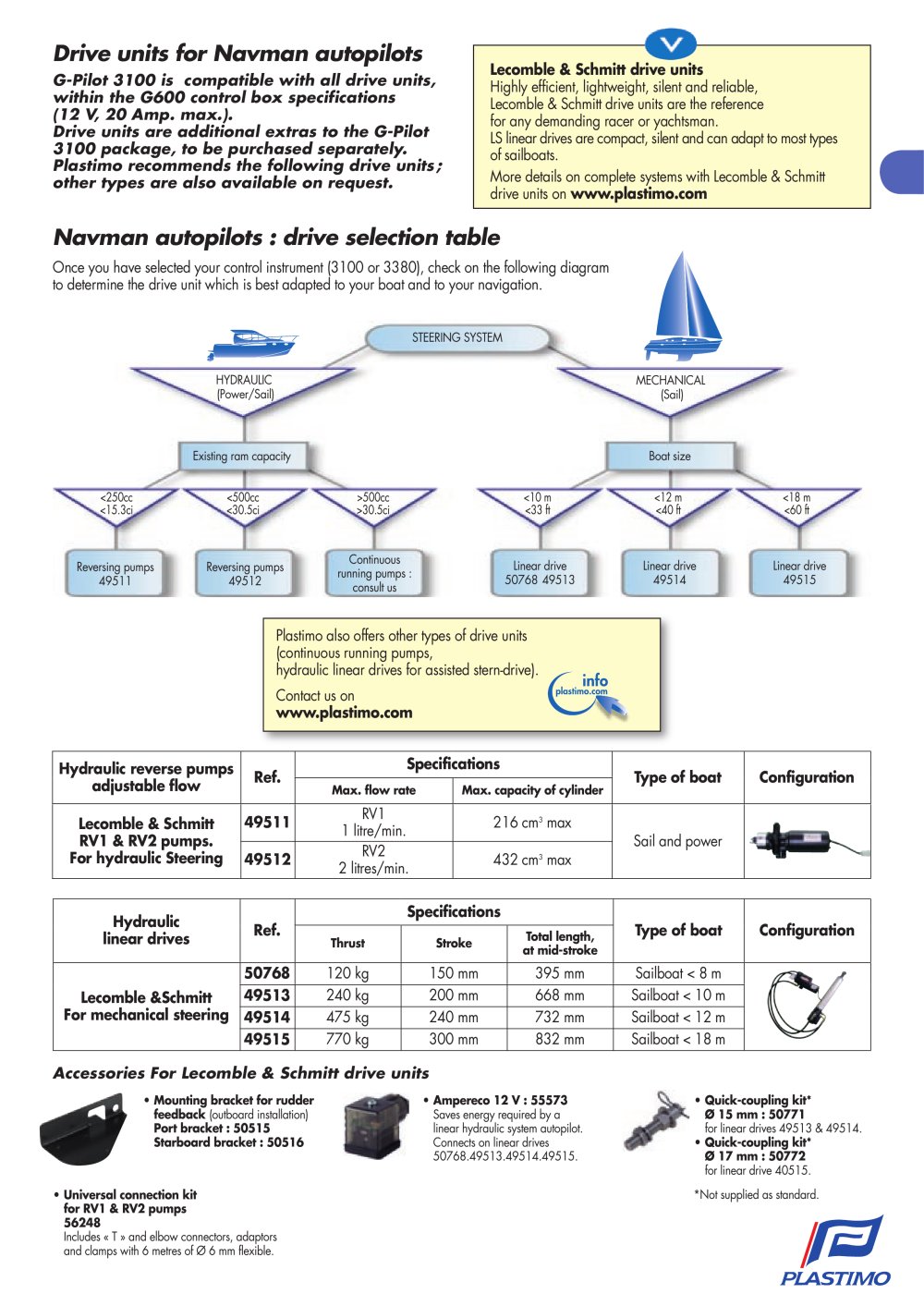

| | | G-Pilot 3100 is compatible with all drive units, within the G600 control box specifications (12 V, 20 Amp. max.). Drive units are additional extras to the G-Pilot 3100 package, to be purchased separately. Plastimo recommends the following drive units ; other types are also available on request. | | |
| | | Lecomble & Schmitt drive units Highly efficient, lightweight, silent and reliable, Lecomble & Schmitt drive units are the reference for any demanding racer or yachtsman. LS linear drives are compact, silent and can adapt to most types More details on complete systems with Lecomble & Schmitt drive units on www.plastimo.com | | |
| | | |
| | | |
| | | Navman autopilots : drive selection table Once you have selected your control instrument (3100 or 3380), check on the following diagram to determine the drive unit which is best adapted to your boat and to your navigation. | | |
| | | |
| | | Plastimo also offers other types of drive units (continuous running pumps, hydraulic linear drives for assisted sterndrive). Contact us on www.plastimo.com | | |
| | | |
| | | | | | | | | | | | | | Hydraulic reverse pumps adjustable flow | Ref. | Specifications | Type of boat | Configuration | | | | Max. flow rate | Max. capacity of cylinder | | | | Lecomble & Schmitt RV1 & RV2 pumps. For hydraulic Steering | 49511 | RV1 1 litre/min. | 216 cm3 max | | -■■¡■■1 | | | | 49512 | RV2 2 litres/min. | 432 cm3 max | | | | | | | | | | | | | |
| | | |
| | | | | | | | | | | | | | | Hydraulic linear drives | Ref. | Specifications | Type of boat | Configuration | | | | Thrust | Stroke | Total length, at mid-stroke | | | | Lecomble &Schmitt For mechanical steering | 50768 | 120 kg | 150 mm | 395 mm | Sailboat < 8 m | | | | | 49513 | 240 kg | 200 mm | 668 mm | Sailboat < 10 m | | | | 49514 | 475 kg | 240 mm | 732 mm | Sailboat < 12 m | | | | 49515 | 770 kg | 300 mm | 832 mm | Sailboat < 18 m | | | | | | | | | | | | | | |
| | | |
| | | Accessories For Lecomble & Schmitt drive units | | |
| | | |
| | | Mounting bracket for rudder feedback (outboard installation] Port bracket : 50515 Starboard bracket : 50516 | | Quick-coupling kit* 0 15 mm : 50771 for linear drives 49513 & 49514. Quick-coupling kit* 0 17 mm : 50772 for linear drive 40515. | | |
| | | Ampereco 12 V : 55573 Saves energy required by a linear hydraulic system autopilot. Connects on linear drives 50768.49513.49514.49515. | | |
| | | |
| | | |
| | | |
| | | 1 Universal connection kit for RV1 & RV2 pumps 56248 Includes « T » and elbow connectors, adaptors and clamps with 6 metres of 0 6 mm flexible. | | *Not supplied as standard. | | |
| | | |
| | | /2? | | |
| | | |
| | | |
