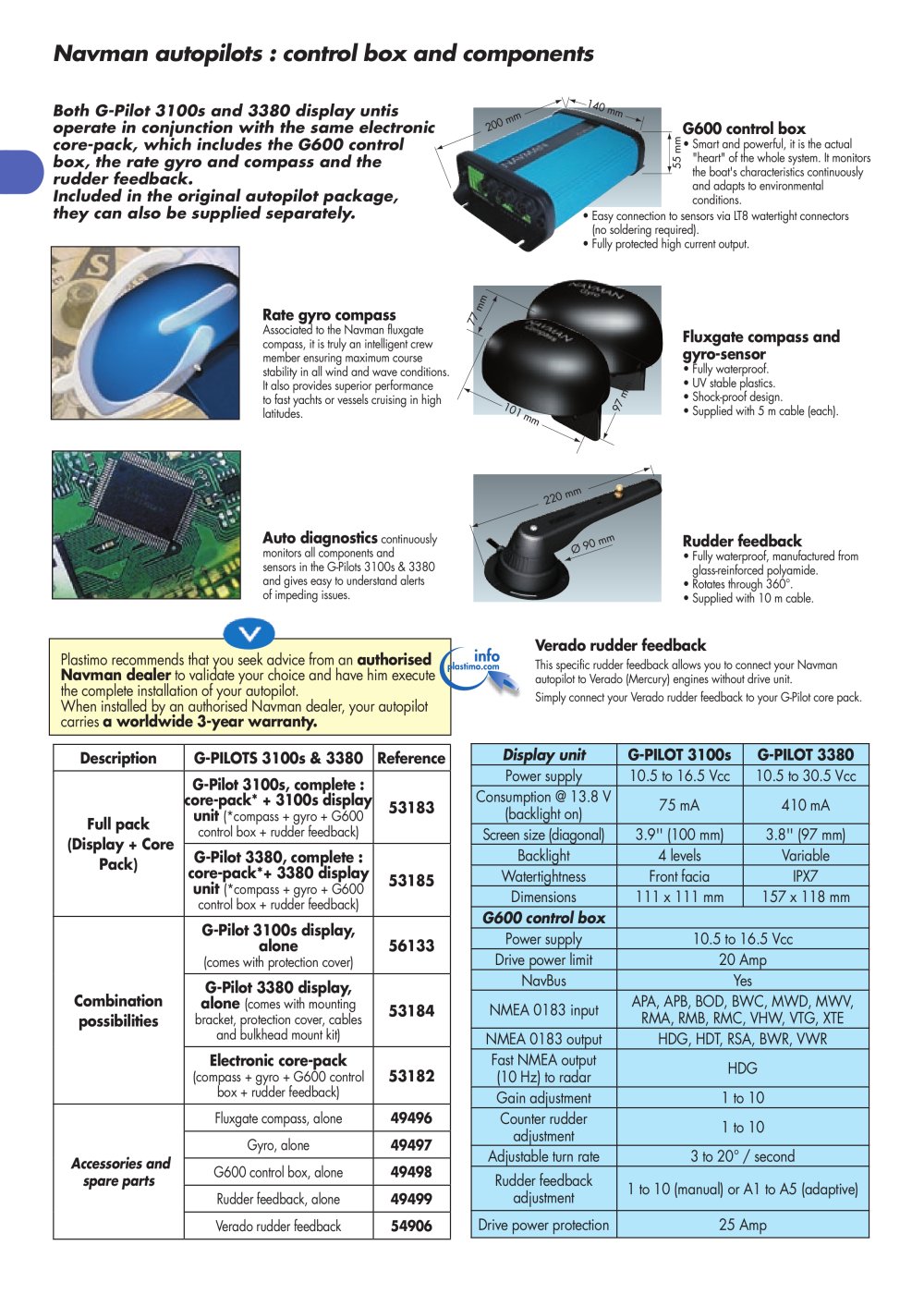

| | | Both G-Pilot 3100s and 3380 display untis operate in conjunction with the same electronic core-pack, which includes the G600 control box, the rate gyro and compass and the rudder feedback. Included in the original autopilot package, they can also be supplied separately. | | |
| | | G600 control box I • Smart and powerful, it is the actual ■o "heart" of the whole system. It monitors the boat's characteristics continuously and adapts to environmental conditions. Easy connection to sensors via LT8 watertight connectors (no soldering required). • Fully protected high current output. | | |
| | | |
| | | |
| | | Rate gyro compass Associated to the Navman fluxgate compass, it is truly an intelligent crew member ensuring maximum course stability in all wind and wave conditions. It also provides superior performance to fast yachts or vessels cruising in high latitudes. | | |
| | | Fluxgate compass and gyro-sensor • Fully waterproof. • UV stable plastics. • Shock-proof design. • Supplied with 5 m cable (each). | | |
| | | |
| | | |
| | | Auto diagnostics continuously monitors all components and sensors in the G-Pilots 3100s & 3380 and gives easy to understand alerts of impeding issues. | | |
| | | Rudder feedback • Fully waterproof, manufactured from glass-reinforced polyamide. • Rotates through 360°. • Supplied with 10 m cable. | | |
| | | |
| | | |
| | | Verado rudder feedback This specific rudder feedback allows you to connect your Navman autopilot to Verado (Mercury) engines without drive unit. Simply connect your Verado rudder feedback to your G-Pilot core pack. | | |
| | | Plastimo recommends that you seek advice from an authorised Navman dealer to validate your choice and have him execute the complete installation of your autopilot. When installed by an authorised Navman dealer, your autopilot carries a worldwide 3-year warranty. | | |
| | | |
| | | |
| | | | | | | | | | | Display unit | G-PILOT 3100s | G-PILOT 3380 | | | | Power supply | 10.5 to 16.5 Vcc | 10.5 to 30.5 Vcc | | | | Consumption @ 13.8 V (backlight on) | 75 mA | 410 mA | | | | Screen size (diagonal) | 3.9'' (100 mm) | 3.8'' (97 mm) | | | | Backlight | 4 levels | Variable | | | | Watertightness | Front facia | IPX7 | | | | Dimensions | 111 x 111 mm | 157x 118 mm | | | | G600 control box | | | | | Power supply | 10.5 to 16.5 Vcc | | | | Drive power limit | 20 Amp | | | | NavBus | Yes | | | | NMEA 0183 input | APA, APB, BOD, BWC, MWD, MWV, RMA, RMB, RMC, VHW, VTG, XTE | | | | NMEA 0183 output | HDG, HDT, RSA, BWR, VWR | | | | Fast NMEA output (10 Hz) to radar | HDG | | | | Gain adjustment | 1 to 10 | | | | Counter rudder adjustment | 1 to 10 | | | | Adjustable turn rate | 3 to 20° / second | | | | Rudder feedback adjustment | 1 to 10 (manual) or A1 to A5 (adaptive) | | | | Drive power protection | 25 Amp | | | | | | | | | | |
| | | Description G-PILOTS 3100s & 3380 Reference | | |
| | | | | | | | | | | Full pack (Display + Core Pack) | G-Pilot 3100s, complete : core-pack* + 3100s display unit (*compass + gyro + G600 control box + rudder feedback) | 53183 | | | | G-Pilot 3380, complete : core-pack*+ 3380 display unit (*compass + gyro + G600 control box + rudder feedback) | 53185 | | | | Combination possibilities | G-Pilot 3100s display, alone (comes with protection cover) | 56133 | | | | G-Pilot 3380 display, alone (comes with mounting bracket, protection cover, cables and bulkhead mount kit) | 53184 | | | | Electronic core-pack (compass + gyro + G600 control box + rudder feedback) | 53182 | | | | Accessories and spare parts | Fluxgate compass, alone | 49496 | | | | Gyro, alone | 49497 | | | | G600 control box, alone | 49498 | | | | Rudder feedback, alone | 49499 | | | | Verado rudder feedback | 54906 | | | | | | | | | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | |
