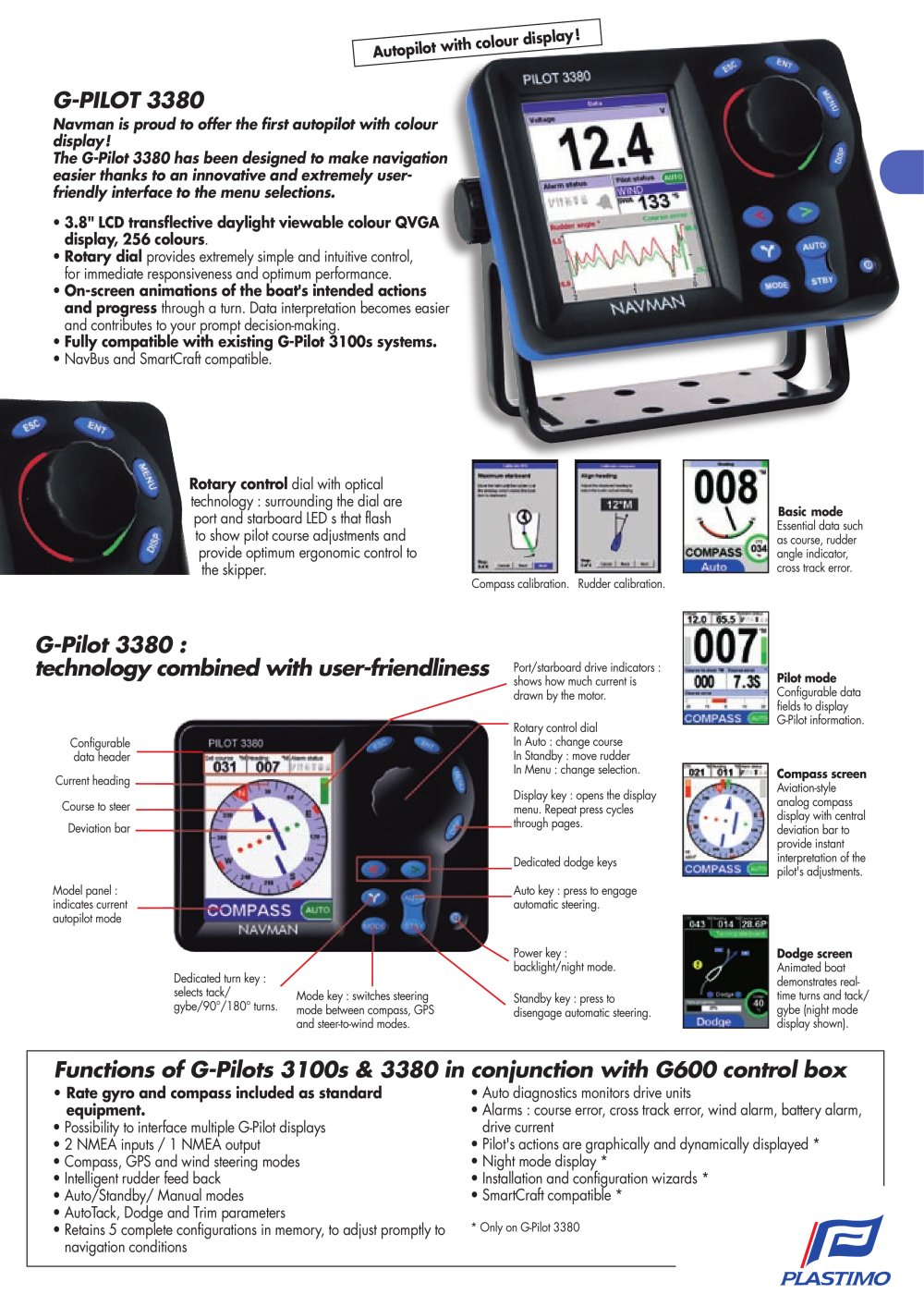

| | | G-PILOT 3380 Navman is proud to offer the first autopilot with colour display! The G-Pilot 3380 has been designed to make navigation easier thanks to an innovative and extremely user-friendly interface to the menu selections. • 3.8" LCD transflective daylight viewable colour QVGA display, 256 colours. • Rotary dial provides extremely simple and intuitive control, for immediate responsiveness and optimum performance. • On-screen animations of the boat's intended actions and progress through a turn. Data interpretation becomes easier and contributes to your prompt decision-making. • Fully compatible with existing G-Pilot 3100s systems. • NavBus and SmartCraft compatible. | | |
| | | |
| | | 008 compass'-1™] | | |
| | | Rotary control dial with optical technology : surrounding the dial are port ana starboard LED s that flash to show pilot course adjustments and provide optimum ergonomic control to the skipper. | | |
| | | Basic mode Essential data such as course, rudder angle indicator, cross track error. | | |
| | | |
| | | |
| | | Compass calibration. Rudder calibration. | | |
| | | |
| | | |
| | | G-Pilot 3380 : technology combined with user-friendliness | | |
| | | Port/starboard drive indicators : shows how much current is drawn by the motor. Rotary control dial In Auto : change course In Standby : move rudder In Menu : change selection. Display key : opens the display menu. Repeat press cycles through pages. Dedicated dodge keys Auto key : press to engage automatic steering. | | |
| | | Pilot mode Configurable data fields to display G-Pilot information. | | |
| | | |
| | | |
| | | Configurable data header Current heading Course to steer Deviation bar | | |
| | | Compass screen Aviation-style analog compass display with central deviation bar to provide instant interpretation of the pilot's adjustments. | | |
| | | |
| | | |
| | | Model panel : indicates current autopilot mode | | |
| | | |
| | | |
| | | Power key : backlight/night mode. ^ Standby key : press to disengage automatic steering. | | |
| | | Dodge screen Animated boat demonstrates realtime turns and tack/ gybe (night mode display shown). | | |
| | | Dedicated turn key : selects tack/ gybe/9071800 turns. | | |
| | | / I Mode key : switches steering mode between compass, GPS and steer-to-wind modes. | | |
| | | |
| | | |
| | | |
| | | |
| | | Functions of G-Pilots 3100s & 3380 in • Rate gyro and compass included as standard equipment. • Possibility to interface multiple G-Pilot displays • 2 NMEA inputs / 1 NMEA output • Intelligent rudder feed back • Auto/Standby/ Manual modes • AutoTack, Dodge and Trim parameters • Retains 5 complete configurations in memory, to adjust promptly to navigation conditions | | |
| | | conjunction with G600 control box • Auto diagnostics monitors drive units • Alarms : course error, cross track error, wind alarm, battery alarm, drive current • Pilot's actions are graphically and dynamically displayed * • Night mode display * • Installation and configuration wizards * • SmartCraft compatible * | | |
| | | |
| | | /2? | | |
| | | * Only on G-Pilot 3380 | | |
| | | |
| | | |
| | | |
