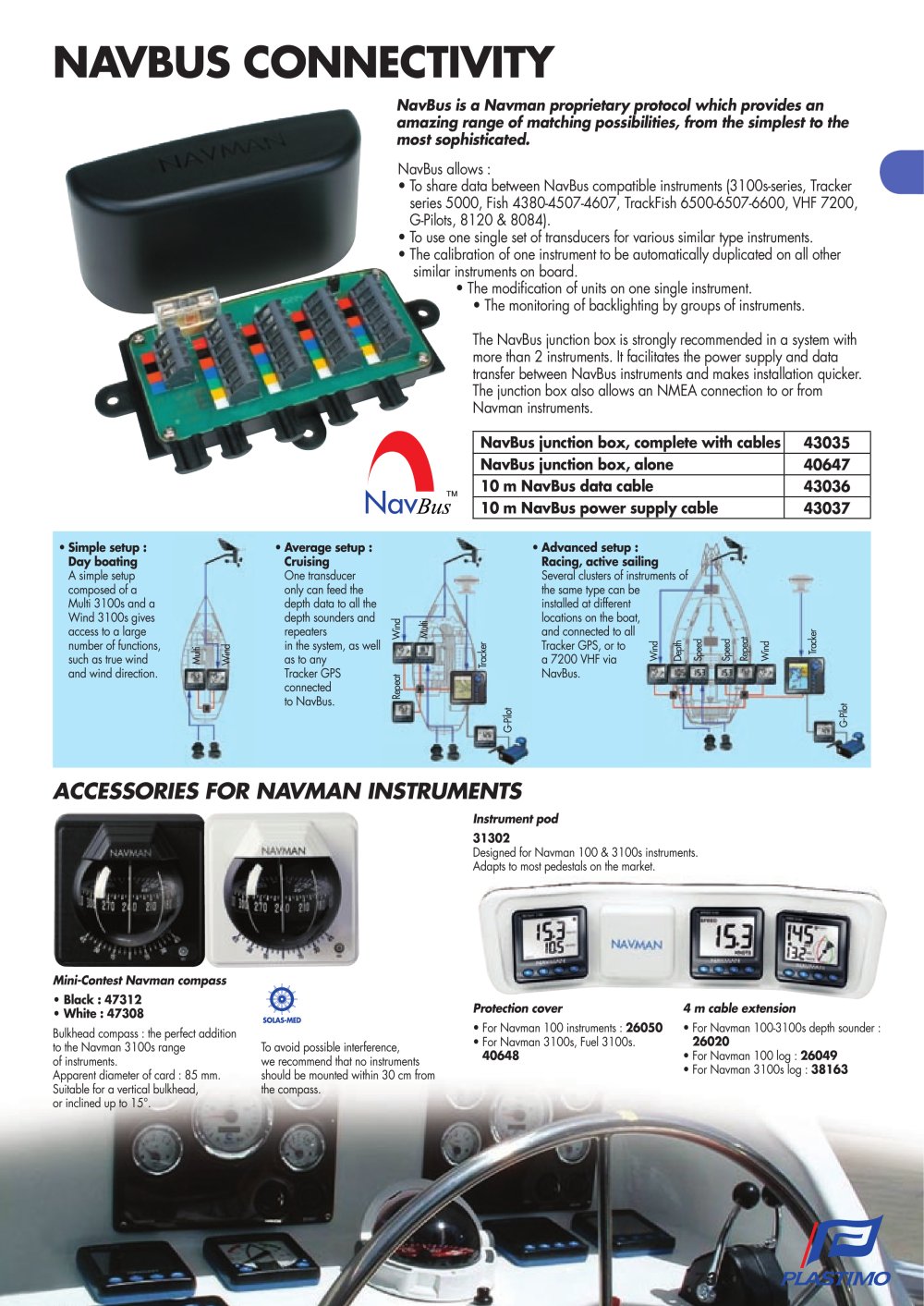

| | | NAVBUS CONNECTIVITY | | |
| | | |
| | | NavBus is a Navman proprietary protocol which provides an amazing range of matching possibilities, from the simplest to the most sophisticated. NavBus allows : • To share data between NavBus compatible instruments (3100s-series, Tracker series 5000, Fish 4380-4507-4607, TrackFish 6500-6507-6600, VHF 7200, G-Pilots, 8120 & 8084). To use one single set of transducers for various similar type instruments. • The calibration of one instrument to be automatically duplicated on all other similar instruments on board. • The modification of units on one single instrument. • The monitoring of backlighting by groups of instruments. The NavBus junction box is strongly recommended in a system with more than 2 instruments. It facilitates the power supply and data transfer between NavBus instruments and makes installation quicker. The junction box also allows an NMEA connection to or from Navman instruments. | | |
| | | |
| | | | | | | | | | | NavBus junction box, complete with cables | 43035 | | | | | NavBus junction box, alone | 40647 | | | | | 10 m NavBus data cable | 43036 | | | | | 10 m NavBus power supply cable | 43037 | | | | | | | | | | | |
| | | | | |
| | Nav# | ™ us | | |
| | | | |
| | | |
| | | |
| | | 1 Simple setup : Day boating A simple setup composed of a Multi 3100s and a Wind 3100s gives access to a large number of functions, such as true wind and wind direction. | | > Advanced setup : Racing, active sailing Several clusters of instruments of the same type can be installed at different locations on the boat, and connected to all Tracker GPS, or to | | |
| | | 1 Average setup : Cruising One transducer only can feed the depth data to all the depth sounders and repeaters in the system, as well as to any Tracker GPS connected to NavBus. | | |
| | | Ï. | | |
| | | |
| | | .a to to a: 5 | | |
| | | a 7200 VHF via NavBus. | | |
| | | L'l iZ | | |
| | | | |
| | | |
| | | |
| | | Vi it | | |
| | | |
| | | ACCESSORIES FOR NAVMAN INSTRUMENTS Instrument pod | | |
| | | |
| | | 31302 Designed for Navman 100 & 3100s instruments. Adapts to most pedestals on the market. | | |
| | | |
| | | Mini-Contest Navman compass • Black : 47312 • White : 47308 Bulkhead compass : the perfect addition to the Navman 3100s range of instruments. Apparent diameter of card : 85 mm. Suitable for a vertical bulkhead, or inclined up to 15°. | | |
| | | • For Navman 100-3100s depth sounder : 26020 • For Navman 100 log : 26049 • For Navman 3100s log : 38163 | | |
| | | Protection cover • For Navman 100 instruments : 26050 • For Navman 3100s, Fuel 3100s. 40648 | | |
| | | To avoid possible interference, we recommend that no instruments should be mounted within 30 cm from the compass. | | |
| | | |
| | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
