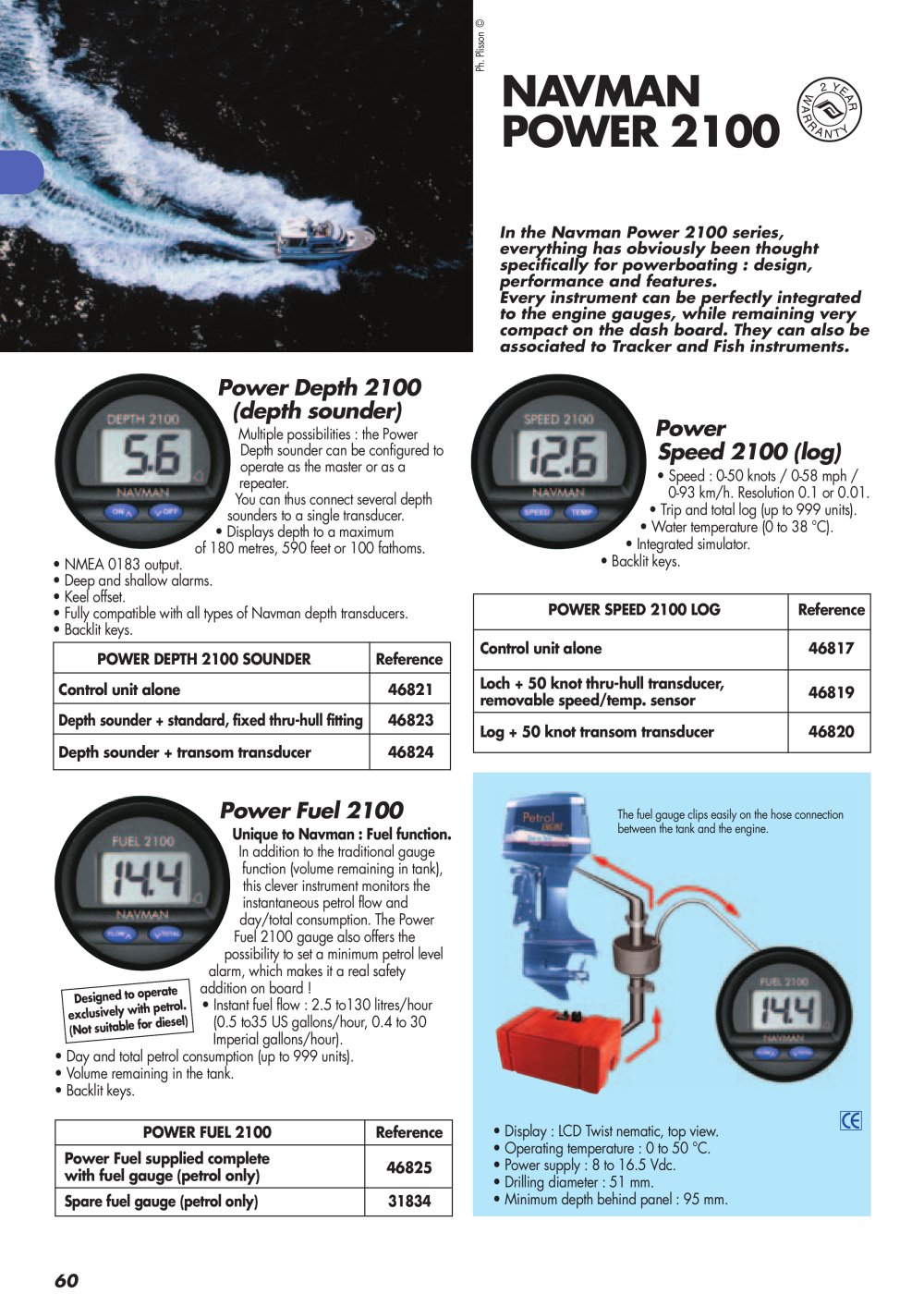

| | | NAVMAN POWER 2100 | | |
| | | |
| | | In the Navman Power 2100 series, everything has obviously been thought specifically for powerboating : design, performance and features. Every instrument can be perfectly integrated to the engine gauges, while remaining very compact on the dash board. They can also be associated to Tracker and Fish instruments. | | |
| | | |
| | | Power Depth 2100 (depth sounder) Multiple possibilities : the Power Depth sounder can be configured to operate as the master or as a repeater. You can thus connect several depth sounders to a single transducer. • Displays depth to a maximum of 180 metres, 590 feet or 100 fathoms. • NMEA 0183 output. • Deep and shallow alarms. • Keel offset. • Fully compatible with all types of Navman depth transducers. • Backlit keys. | | |
| | | Power Speed 2100 (log) • Speed : 0-50 knots / 0-58 mph / 0-93 km/h. Resolution 0.1 or 0.01. • Trip and total log (up to 999 units). • Water temperature (0 to 38 °C). • Integrated marine simulator. • Backlit keys. | | |
| | | |
| | | | | | | | | | POWER SPEED 2100 LOG | Reference | | | | Control unit alone | 46817 | | | | Loch + 50 knot thru-hull transducer, removable speed/temp. sensor | 46819 | | | | Log + 50 knot transom transducer | 46820 | | | | | | | | | |
| | | |
| | | | | | | | | | POWER DEPTH 2100 SOUNDER | Reference | | | | Control unit alone | 46821 | | | | Depth sounder + standard, fixed thru-hull fitting | 46823 | | | | Depth sounder + transom transducer | 46824 | | | | | | | | | |
| | | |
| | | |
| | | Power Fuel 2100 Unique to Navman : Fuel function. In addition to the traditional gauge function (volume remaining in tank), this clever instrument monitors the instantaneous petrol flow and day/total consumption. The Power Fuel 2100 gauge also offers the possibility to set a minimum petrol level alarm, which makes it a real safety addition on board ! • Instant fuel flow : 2.5 to130 litres/hour (0.5 to35 US gallons/hour, 0.4 to 30 Imperial gallons/hour). • Day and total petrol consumption (up to 999 units). • Volume remaining in the tank. • Backlit keys. | | |
| | | The fuel gauge clips easily on the hose connection between the tank and the engine. | | |
| | | |
| | | |
| | | | | | | | | | POWER FUEL 2100 | Reference | | | | Power Fuel supplied complete with fuel gauge (petrol only) | 46825 | | | | Spare fuel gauge (petrol only) | 31834 | | | | | | | | | |
| | | • Display : LCD Twist nematic, top view. • Operating temperature : 0 to 50 °C. • Power supply : 8 to 16.5 Vdc. • Drilling diameter : 51 mm. • Minimum depth behind panel : 95 mm. | | |
| | | |
| | | |
